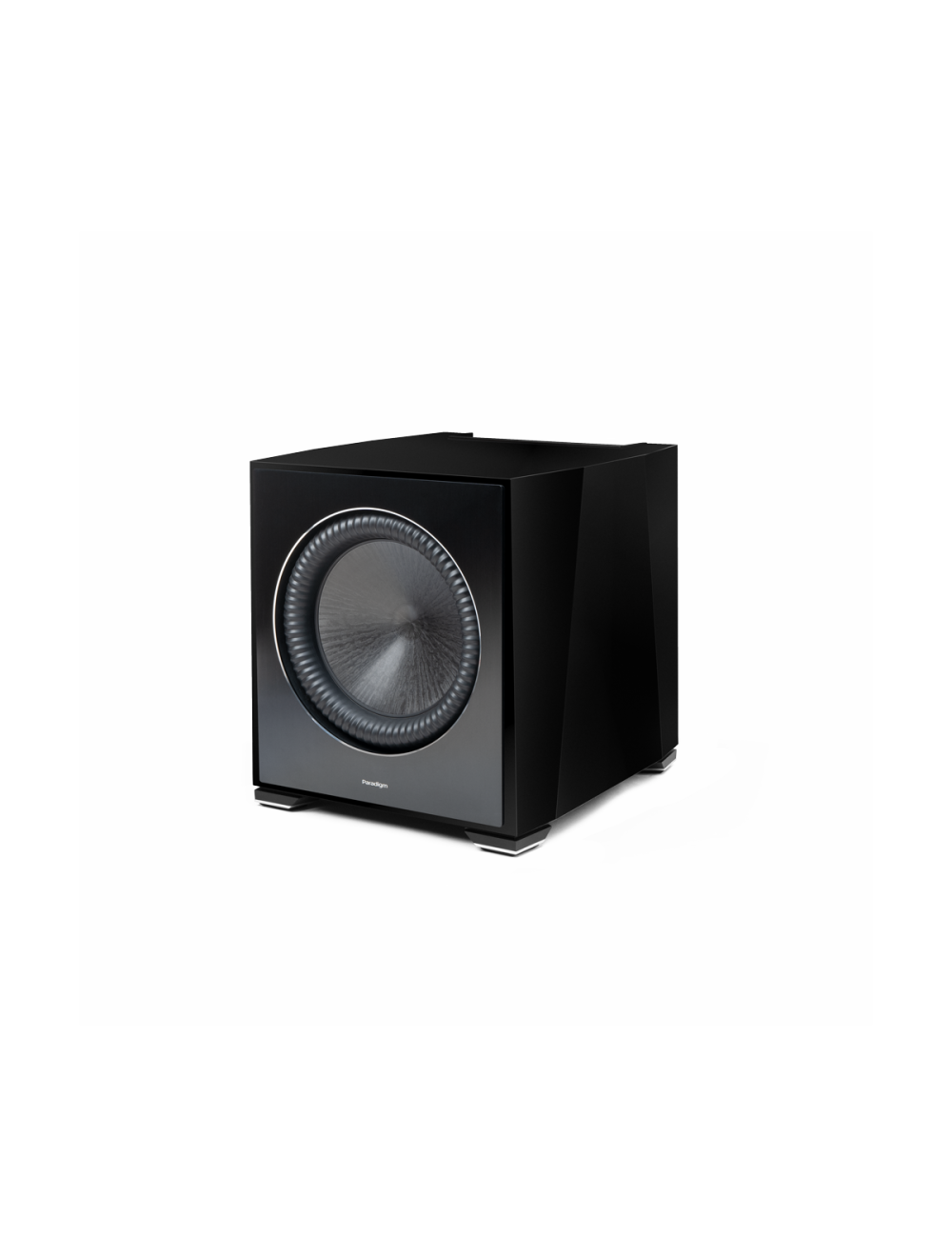

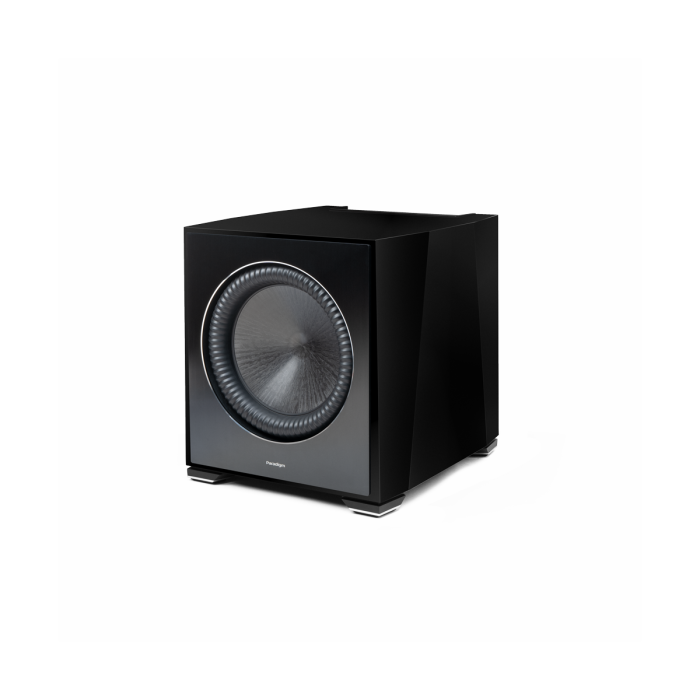

Paradigm XR 11
11" med dubbla talspolar och magneter. 1100w (2200w peak) klass D. Appstyrning. Antherm Room Correction (ARC) mikrofon ingår.
A Master Class in Design andEngineering
The all-new XR subwoofers are a master class in design and engineering refinement that challenges what is possible from a compact, sealed subwoofer design. Our goal was to push the boundaries of performance while never losing sight of aesthetics by wrapping everything up into a suitable size that won’t ever feel out of place.
“Art Embracing Science” philosophy
It’s the perfect complement to any system and blends perfectly with our award-winning Founder series of loudspeakers.
Faceted Cabinet Design
XR’s cabinet is not only purposefully beautiful but intentionally functional. The geometric profile elegantly distributes the massive load of housing the powerful woofer inside, providing greater strength and rigidity than traditional rectangular designs.
Cascade-Fusion Bracing
Further increases cabinet rigidity for maximum acoustic precision while also breaking up standing waves internally, which provides more accuracy and greater bass clarity.
Best-in-Class Premium-Grade Finishes
XR cabinets are offered in various beautiful premium-grade finishes: Walnut and Black Walnut have a smooth satin finish with distinctive wood grain. Our exclusive Midnight Cherry and Piano Black feature a luxurious hand-rubbed, high-gloss finish.
SPECIFICATIONS
| DESIGN | 11” (279 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-Fusion™ Bracing and ADVANCED Shock-Mount™, built-in Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included |
| AMPLIFIER FEATURES | Auto-On / Off, Trigger On / Off |
| ROOM CORRECTION | ARC Genesis (microphone included) |
| FREQUENCY RESPONSE ON-AXIS | ±3dB from 20 Hz to 140 Hz |
| LOW FREQUENCY DRIVER | 11” (279 mm) Ultra-High-Excursion CARBON-X Unibody Bass Driver, with Trilinear Suspension System and Active Ridge Technology (ART™), 1.5” high-temperature voice coil |
| EFFECTIVE PISTON AREA (SD) | 66 sq in / 0.043 sq m |
| EFFECTIVE DISPLACEMENT | 183.1 cu in/3 L |
| LOW FREQUENCY RESPONSE | 14 Hz (DIN) |
| AMPLIFIER POWER | Power measurements underway to ensure compliance with new FTC regulations |
| UNBALANCED INPUTS | Stereo or Mono (dual RCA jacks)/LFE RCA jack |
| BALANCED INPUTS | One Balanced XLR (LFE) |
| SPEAKER/HIGH-LEVEL INPUTS | Left and right speaker level inputs |
| INPUT GROUNDING | Isolated |
| POLARITY | 0 or 180 degrees |
| PHASE | Variable 0°-180° |
| DIMENSIONS HXWXD | 16.2” x 15.3” x 16.9” (41.2cm x 38.8cm x 42.9cm) |
| WEIGHT | 65.1 lb / 29 kg each |
| FINISHES | Gloss: Piano Black & Midnight Cherry Satin: Walnut & Black Walnut |
| SKU | Paradigm XR 11 |
|---|---|
| Märke | Paradigm |
| Weight | 30.000000 |
