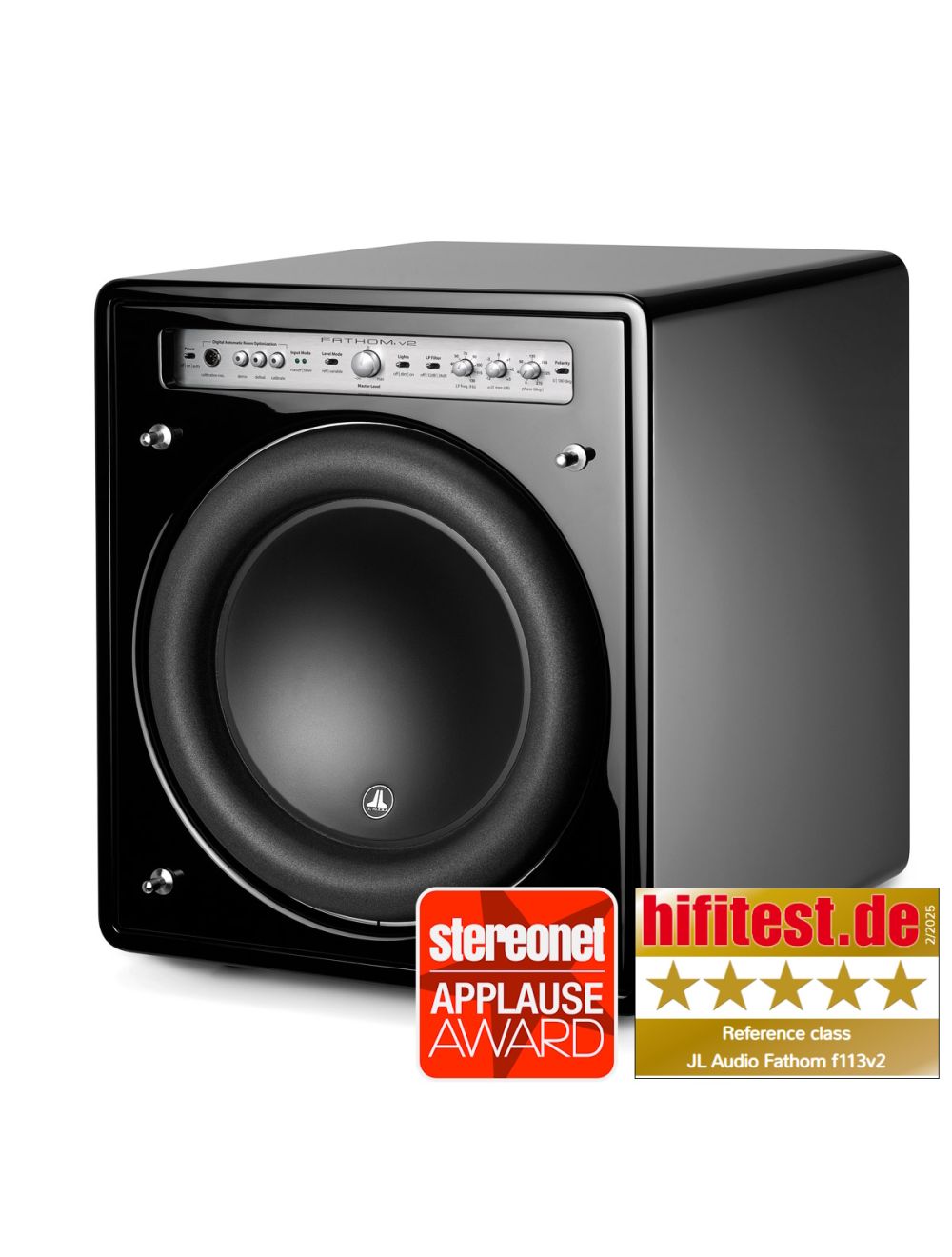

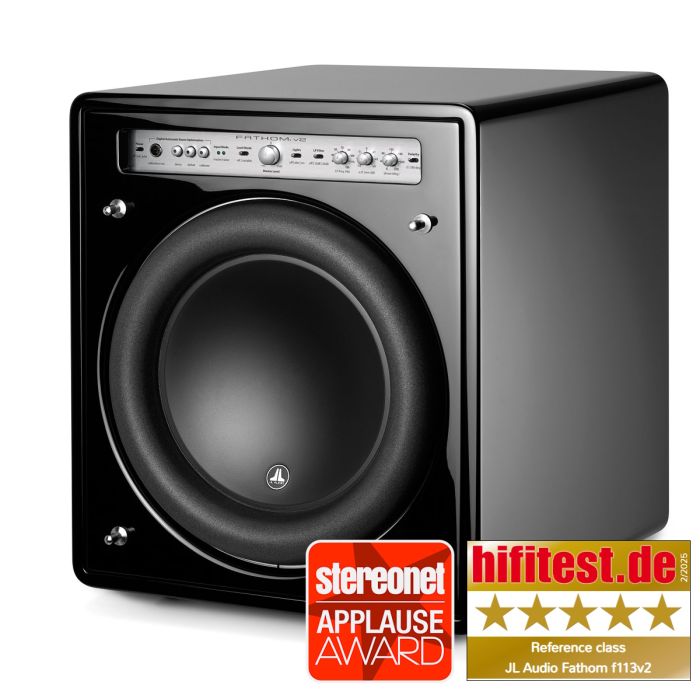

JL Audio Fathom F113 v2

General Specifications

Enclosure Type	Sealed
Enclosure Finish	Black Gloss
Frequency Response (Anechoic)	20 - 86 Hz (±1.5dB) -3 dB at 18 Hz / 127 Hz -10 dB at 16 Hz / 154 Hz
Effective Piston Area (Sd)	107.35 sq in / 0.0693 sq m
Effective Displacement	386 cu in / 6.3 L
Amplifier Power	3000 W RMS short-term
Power Mode(s)	Off, On or Automatic (Signal-Sensing)
Light Modes	Off, On or Dim

Unbalanced Inputs	Stereo or Mono (two RCA jacks)
Balanced Inputs	Stereo or Mono (two female XLR jacks)
Speaker/High-Level Inputs	N/A
Input Grounding	Isolated or Grounded
Input Modes	Master or Slave
Level Control	Reference (fixed gain) or Variable, from full mute to +15dB over reference gain
Filter Mode(s)	Low-Pass
Filter Slope(s)	12/24 dB/octave
Filter Frequency Range	30 Hz - 130 Hz
Filter Defeat Function	Yes
Polarity	0 or 180 degrees
Phase	Variable, 0 - 280 degrees
Extreme Low Frequency (E.L.F.) Trim	Variable, -12 dB to +3 dB at 25 Hz
Line Outputs	N/A
Output to Slave	Balanced (one male XLR jack)
Calibration Mode	Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone

Note: Height dimensions include feet.
