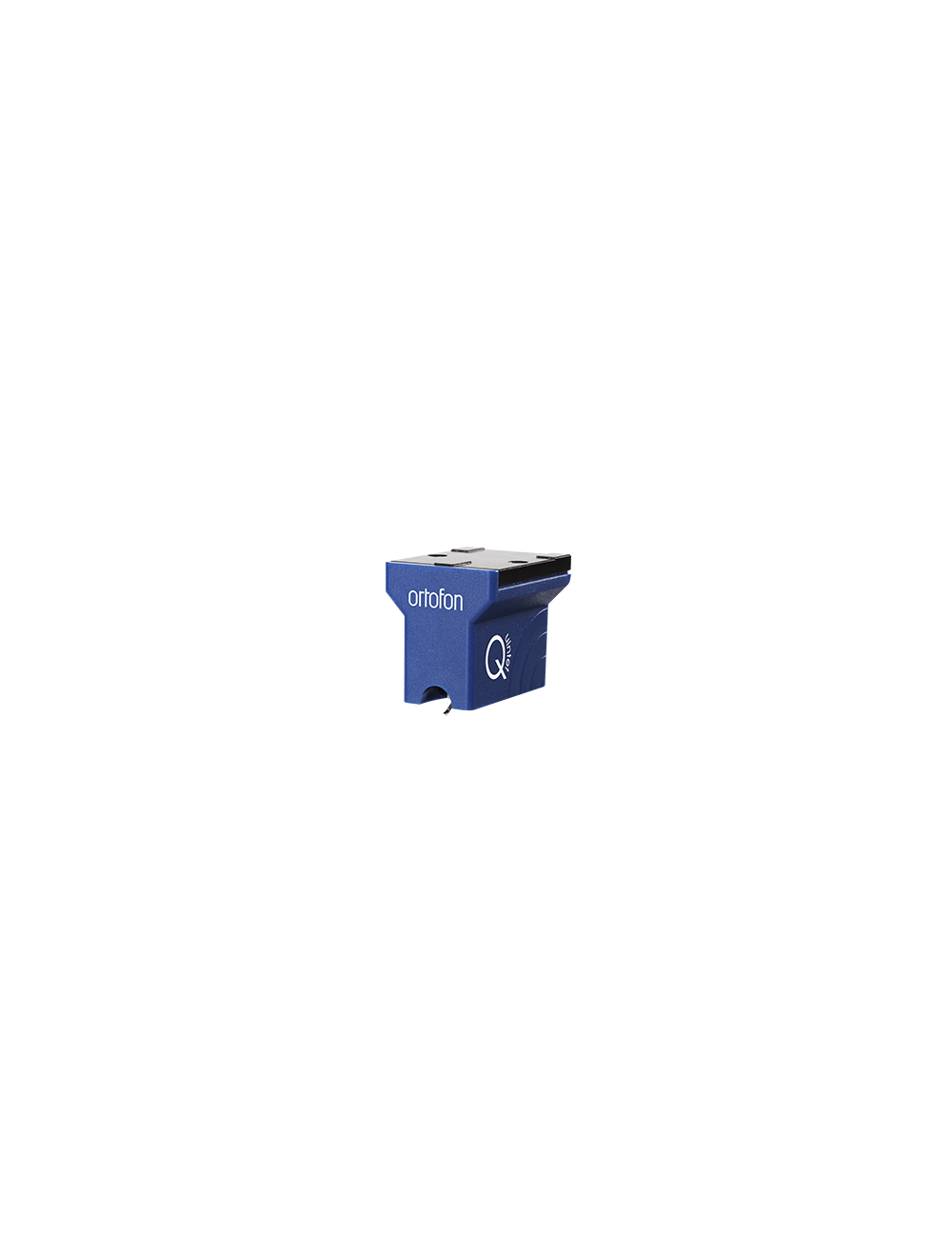

Ortofon Quintet Blue

The Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze. It features a Nude Elliptical diamond mounted on an aluminium cantilever.
I Lager
SKU
Quintet Blue
4 090,00 kr
Output voltage at 1 kHz 5 cm/sec 0.5 mV
Channel balance < 1.5 dB
Channel separation at 1 kHz > 21 dB
Channel separation at 15 kHz > 14 dB
Frequency range at -3 dB 20-25.000 Hz
Frequency response 20-20.000 Hz +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force *) 70 μm
Compliance, dynamic, lateral 15 μm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 μm
Tracking force range 2.1-2.5 g (21-25 mN)
Tracking force recommended 2.3 g (23 mN)
Tracking angle 20º
Internal impedance, DC resistance 7 Ohm
Recommended load impedance >20 Ohm
Cartridge body material ABS/Aluminium
Coil wire material Pure 4-nines copper
Cartridge colour Blue
Cartridge weight 9 g
Mer information:
Artikelnummer Quintet Blue
Märke Ortofon
Vikt 0.0000
Längd Inte tillgängligt
Djup Inte tillgängligt
Höjd Nej
Bredd Nej
Djup Nej
Storlek Nej
Garanti 2 år
Färg Blå
Anslutningar Inte tillgängligt
Egenskaper Inte tillgängligt
