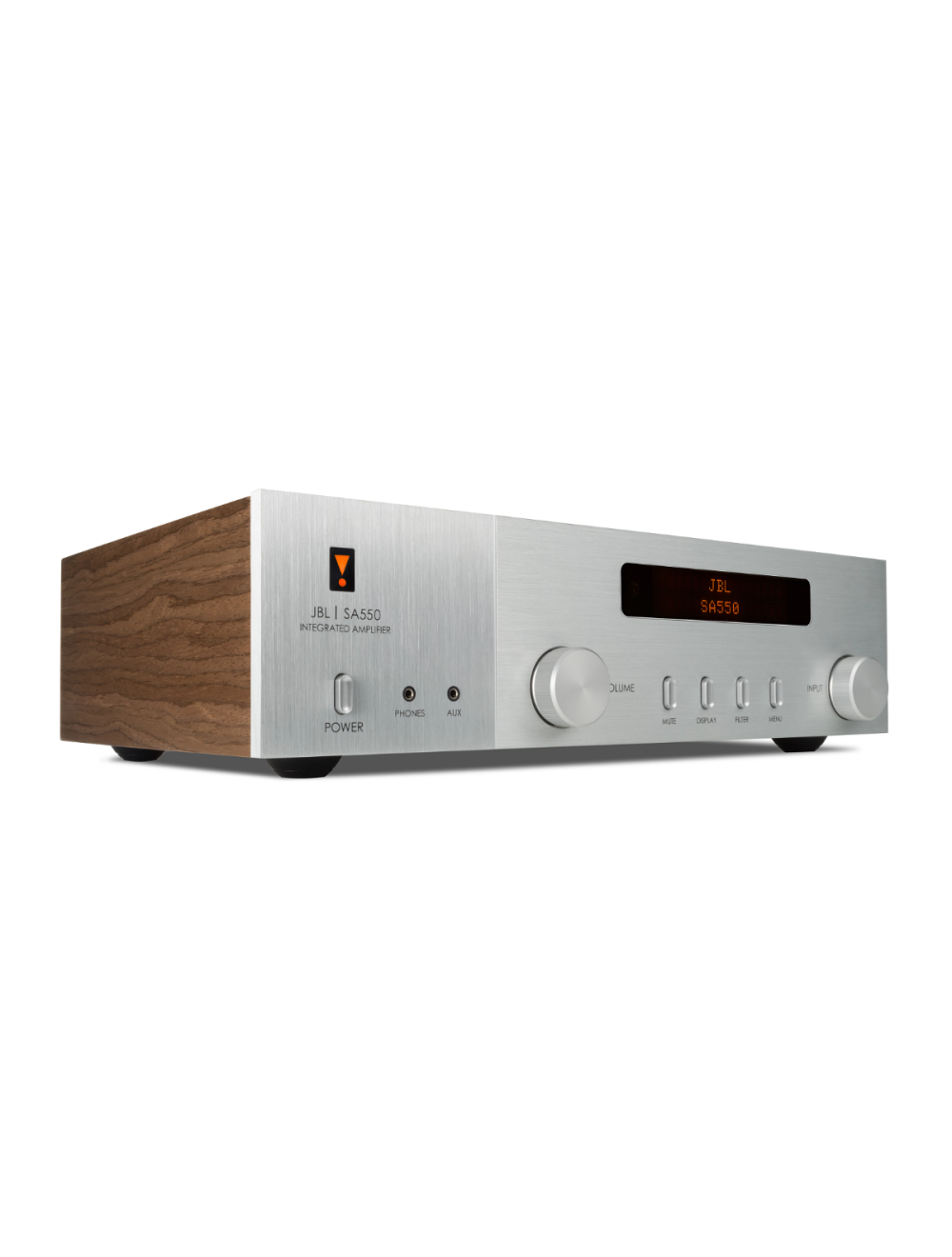

JBL SA550 Classic

Integrated Amplifier with Bluetooth

The JBL SA550 Classic is inspired by the classic JBL SA600 amplifier from the 1960’s, with retro styling and walnut veneer side panels to match JBL Classic and Studio Monitor loudspeakers on the outside. On the inside, the JBL SA550 is a music system for today using an advanced amplifier topology with high power output, inventive efficiency, and fine noise control for captivating musicality and effortless power. Straight out of the box, pair your smart phone or tablet to the SA550 Classic with Bluetooth for instant high-quality music from all your music services and libraries that you listen to everyday. The JBL SA550 Classic includes the latest Bluetooth AptX®Adaptive technology for hi-res audio over Bluetooth and low latency to ensure audio is in sync with video. All digital audio is rendered using a reference high resolution DAC with time domain jitter elimination for perfect sound, every time.

General Specifications:
Continous power output both channels driven (0.5% THD):
• 90W into 8Ω x2
• 150W into 4Ω x2
• Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%
Phono moving magnet input:
• Input sensitivity at 1kHz: 5mV
• Input impedance: 47kΩ + 100pF
• Frequency response (ref. RIAA curve): 20Hz - 20kHz ±1dB
• Signal/Noise ratio (A-wtd) 50W, ref. 5mV input: 80dB
• Overload margin, ref. 5mV at 1kHz
Line inputs:
• Nominal sensitivity: 1V
• Input impedance: 10kΩ
• Maximum input: 6Vrms
• Frequency response: 20Hz - 20kHz ±0.2dB
• Signal/Noise ratio (A-wtd) 50W, ref. 1V input: 106dB
Digital inputs:
• Supported Bit depth: 16 bit - 24 bit
• Supported sample rates (Optical)(kHz): 32, 44.1, 48, 88.2, 96
• Supported sample rates (Coaxial)(kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192
• Frequency response: 20Hz - 20kHz ±0.05dB
• Signal/Noise ratio (A-wtd) 50W, ref. 1V input: 115dB
Mains Voltage: 110–120V or 220–240V, 50–60Hz
Maximum Power Consumption: 500W
Product Dimensions (W x H x D, including feet, control knob,
and speaker terminals): 449 x 114 x 327mm
Product Weight: 12kg
Shipping Weight: 14kg
