JBL SCL-7
Det smalaste inom de vägghängda modellerna i JBLS flaggskepp serie (SCL) designat för att ge maximal ljudupplevelse för dig med begränsat utrymme.
I lager
- SKU
- JBL SCL-7
13 990,00 kr
Köp nu, betala med
Läs mer
Betala 1 211,00 kr/månad i 12 månader (0% ränta).
Uppläggningsavgift: 295,00 kr
Administrationsavgift per månad: 45,00 kr
För 12 månader blir det totalt 14 826,00 kr.
SCL-7 Highlights
-
2-way in-wall loudspeaker system designed for off-axis listening as LCR and surround channels
-
1-inch 2410H-2 compression driver tweeter mated to a JBL patented High-Definition Imaging (HDI™) horn precision molded baffle assembly
-
Two 5.25-inch (130mm) Advanced Aluminum Matrix cone cast frame woofers
-
Can be mounted vertically or horizontally
-
Patented Cat Claw installation mechanism
-
Gold plated, spring-loaded binding posts
-
Includes paintable zero-bezel, magnetically attached grilles
General Specifications
| Type | 2-Way In-wall loudspeaker |
|---|---|
| Low Frequency Driver | Two 5.25” (130 mm) advanced Aluminum Matrix cone cast-frame woofers (JW13Al-4) |
| High Frequency Driver | 1" (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver |
| Recommended Amplifier Power | 25 – 150W RMS |
| Impedance | 4 Ohm |
| Loudspeaker Sensitivity | 88 dB/2.83V/1m (2pi anechoic) |
| Frequency Response | 55Hz - 30kHz (-6 dB on-axis), 2pi anechoic |
| Crossover Frequency | 2.0 kHz |
| High Frequency Coverage Angle (-6 dB) | 60° Vertical, 90° Horizontal (Left 30°, Right 60°, from center line), from 2 kHz to 15 kHz |
| Enclosure Type | Open back |
| Controls | Boundary Proximity Control |
| Grille Dimensions | 7.32” (186 mm) x 19.15” (486 mm) |
| Product Dimensions (with grille) | 7.32” (186 mm) x 19.15” (486 mm) x 3.88” (99 mm) |
| Cut-out Dimensions | 6.18” (157 mm) x 18.03” (458 mm) |

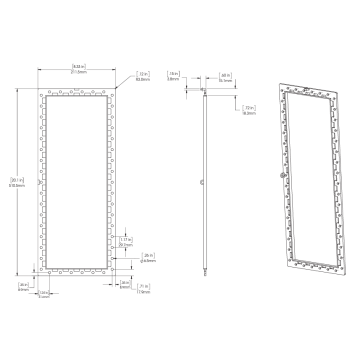

| Rough-in Bracket | WB52 |
| Mounting Depth | 3.64” (93 mm) |
| Input Type | Gold-plated spring-loaded binding posts |
| Product Weight | 12.6 lbs (5.72 kg) |
| Shipping Weight | 14.6 lbs (6.62 kg) |
| Shipping Units of Measure | Each |
| Warranty | 5 Years |
| SKU | JBL SCL-7 |
|---|---|
| Märke | JBL |
| Weight | 1.000000 |
