JBL SSW-4

SSW-4

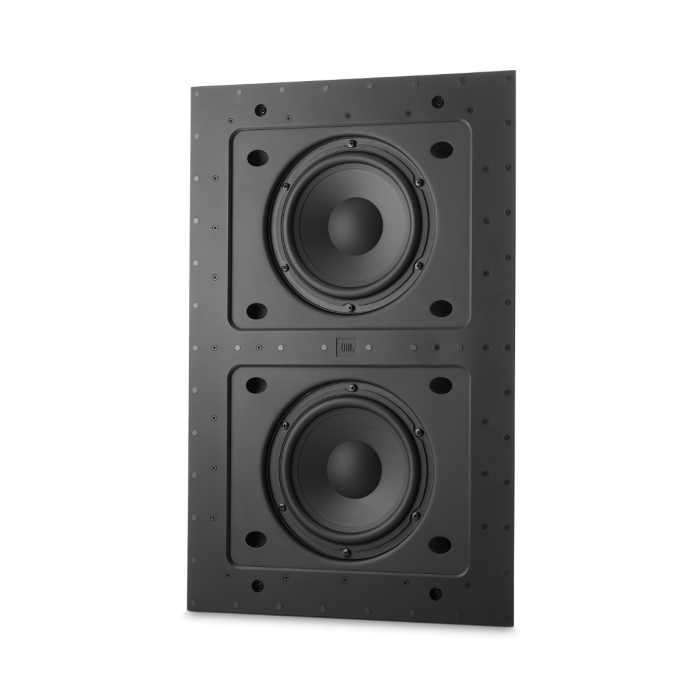

JBL Synthesis loudspeakers are designed to grab ahold of your emotions and not let go. The SSW-4 in-wall subwoofer delivers dynamic bass and lifelike realism to home cinema and concealed music systems, courtesy of dual 8” (200mm) Klippel-optimized, metal cone woofers. The self-contained module with integrated back box makes it easy to retrofit existing installations. The SSW-4 is designed to fit standard 2 x 4 stud frame construction, and the clean industrial look allows for seamless integration into virtually any in-home application. The SSW-4 is designed to be powered by the JBL Synthesis SDA 8300, 8-channel, 300W power amplifier. Each SDA 8300 can power up to eight SSW-4 subwoofers at 300W RMS to offer a complete in-wall solution to your architectural audio needs.

SSW-4 Highlights

Dual 8” (200mm) low-profile, long-throw, Klippel-optimized, metal cone woofers
Front-firing drivers with sealed back box for superior acoustic tuning
Gold-plated speaker terminals
Zero-bezel, magnetically-attached grille

General Specifications

Sensitivity	(2.83V/1m) Variable using the SA1000
Frequency Response	36Hz – 150Hz (-6dB)
Required Amplifier	JBL Synthesis SDA-8300 (Connect up to eight SSW-4 Subwoofers with each SDA-8300 Amplifier)
Nominal Impedance	8 Ohms
Recommended Amplifier	JBL Synthesis SDA 8300
Mounting Cutout Size (H x W)	23-1/2" x 14-1/2"
Height	25.375” (645mm)
Width	16.5” (419mm)
Depth	4” (102mm)
Weight	28.4 lbs (12.9kg)
