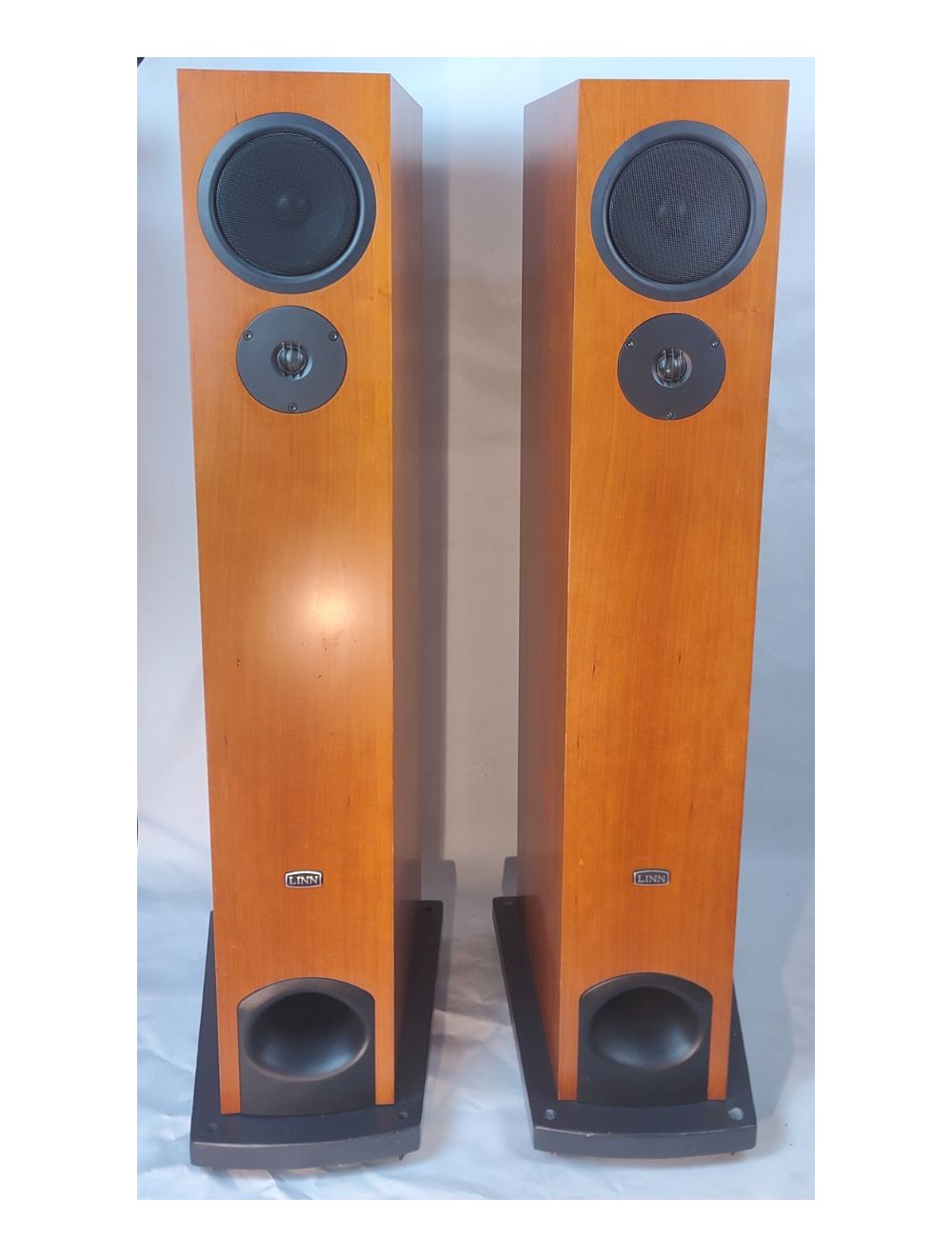

Beg. Linn AV5140 (cherry)

Treble Driver
The treble unit has a 19mm ceramic dome tweeter mounted on a diecast face plate, with a
ferrofluid-cooled voice coil on a Kapton former which transmits heat to the magnet. The
aluminium face plate allows higher power handling. The rear of the tweeter is sealed in its
own enclosure to prevent the bass pressure influencing the treble performance.

Midrange Driver
The midrange driver uses a rigid polypropylene cone and an aluminium voice coil former.
Magnet assembly increases efficiency allowing maximum amplifier control. There is a long
throw voice coil for lower distortion.

Bass Driver
Magnesium alloy diecast chassis providing maximum rigidity. Large high-efficiency magnet
assembly providing high sensitivity and bass damping. Aluminium voice coil former for
excellent heat dispersion. Four-layer voice coil for improved magnetic coupling. Long throw
cone suspension for high sound pressure levels.

Crossover
The crossovers use high specification audio grade capacitors with polypropylene caps for
treble, polyester caps for mid-range. High current iron-dust inductors are used to prevent
saturation and distortion. Other features include: heavy copper tracks for low resistance and
signal integrity; high strength glass fibre circuit boards. Input sockets are soldered directly to
board to reduce contact resistances. Second order electrical response for treble, mid-range
and bass. All drive units individually soldered to crossover cables.

Technical Specifications
Volume: 42 Litres
Frequency Response: 30 Hz to 20 Khz
Height: 980mm
Width: (front) 170mm
Width: (rear) 235mm
Depth: 320mm
Input Impedance: 4 Ohms
Efficiency: 90dB for 1W at 1m (1Khz)
Minimum Amplifier Power: 60W / 4Ohms
Weight: 21.5 Kilos
