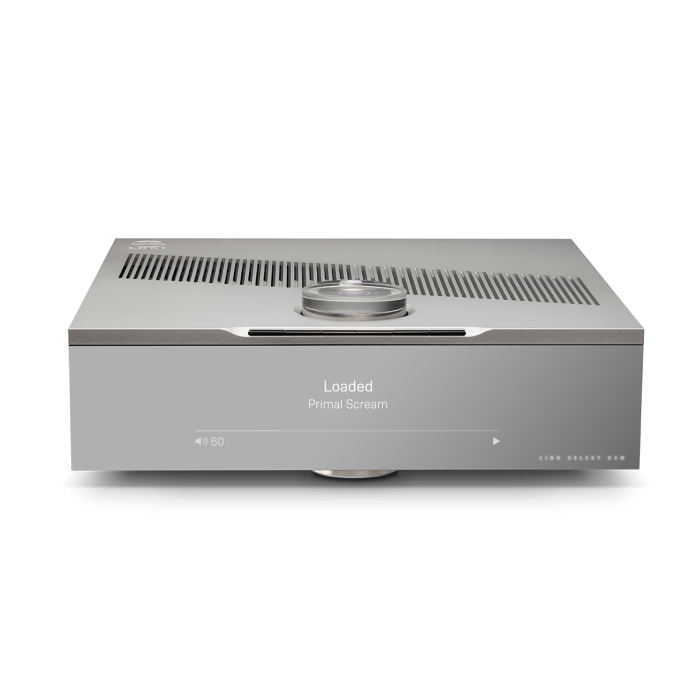

Linn Selekt DSM Edition
Modulär streamer som kan konfigureras till streamer/försteg eller integrerad förstärkare, kan även byggas ut som integrerad hembioförstärkare eller bioförsteg. Kommer med nya Utopik-nätdelen, Linn:s överlägset bästa nätdel hittills, vi har hunnit testa den mot en likadant specad Selekt DSM med Dynamik och den nya nätdelen brilljerade från första tonerna!
• Helt ny Utopik-nätdel
• AirPlay 2-stöd
• WiFi & Bluetooth (v4.2)
• Grym MM/MC Phono-ingång
• Spotify Connect, Tidal, Qobuz, Tune-In, m.m. i multirum
• Få ut ljudet från surplatta/dator/telefon via AirPlay eller SongCast
• HDMI 2.0 ARC med stöd för 4K (kan utökas)
• Riktigt bra 6.3mm-hörlursutgång
• USB-ingång
• Dubbla subwoofer-utgångar
• 6st programmerbara knappar och snygg lättåtkomlig volymratt
• 4 olika nivåer av DAC:ar tillgängliga: Standard, Katalyst, Organik Stereo och Organik Dual Mono
• Linn Exakt-stöd
• Space Optimization (rumskorrigering i världsklass)
Läs recensioner:
-- Finns för provlyssning! --
Selekt DSM: Edition Hub
A superior-quality, all-machined design
Edition Hub is a superior-quality enclosure, featuring an all-machined construction for improved rigidity, interior isolation, and elevated aesthetic appeal – with sleek sight lines, concealed joins and understated luxury at the fore.
Providing both requisite heat management and high design appeal, the primary vent of Edition Hub is precision-cut into its aluminium plate lid. The vent itself is evocative of a wave, with each aperture cut at an angle, and only every second one machined all the way through. When viewed from different angles, this wave motif morphs and ripples – with myriad reflections projected from its various finishes and surfaces.
Edition Hub features a much-improved, eye-catching control dial. Its precision, turned-stainless-steel bearing ensures silky, tactile rotation when adjusting volume; and the photo-etched steel halo around its edge allows cool, sharp light to emanate from the one hundred individual LEDs beneath.
The all-glass fascia of Edition Hub is composed of mirrored spy glass; with the large-format display concealed behind it displaying crisp, clear information when necessary, and fading to total invisibility when not.
A broad range of connections on Edition Hub’s back panel ensures that it can receive, process and expertly deliver audio from any source imaginable.
Edition Hub features, as standard, Linn’s all-new, exceptionally efficient, highly responsive, and precision-regulated power supply design – our best yet – Utopik.
Organik DAC Upgrade
At Linn, nothing progresses beyond the prototype stage if it can’t conclusively answer one simple question positively — “is this better than what’s available elsewhere?”
Designing and building our own DAC completely from scratch was no exception. It was only worth doing if the result would be significantly better than our previous designs utilising optimised 3rd-party chips.
Organik is the culmination of over thirty years of digital technology expertise. We pioneered high-performance digital streaming in the hi-fi industry; and we’re raising the bar yet again, thanks to this paradigm shift in digital-to-analog conversion technology.
With this novel Organik DAC architecture, implementation, and realisation, we have finally completed the puzzle. Linn has achieved complete control over the entire music signal chain.
Please speak to your Linn Specialist for more details.
Learn moreAdd Surround Sound Processing capability (up to 7.1 channels)
A Surround Sound Processing upgrade for Linn DSM (selected models) was introduced in January 2019*, providing on-board processing of up to 7.1 channels of Dolby and DTS audio** in a Surround Sound system with any passive speakers (any brand) or Linn Integrated Exakt speakers.
A simple, high performance one-box 5.1 Surround solution can be achieved by upgrading Selekt DSM to Selekt DSM Surround with Integrated Power Amps – just add speakers.
You can add Surround Sound Processing capability to your current Linn DSM player with this simple upgrade, fitted by your local Linn Specialist.
* Introduced to Selekt DSM in April 2019
** Supported formats: DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, PCM
Utopik Power
This exceptionally efficient, highly responsive, and precision-regulated power supply design is our first entirely new topology since 2009 – and it’s our best yet.
| Overview |
⊕ Versions:
If using Organik DAC's then ALL cartridges MUST use the Organik DAC |
||||||||||||||||||||||||||
| Dimensions |
(H) 113 mm x (W) 350 mm x (D) 350 mm |
||||||||||||||||||||||||||
| Weight | 7.2 kg / 15.9 lb | ||||||||||||||||||||||||||
| Mains supply voltage | (auto ranging)
|
||||||||||||||||||||||||||
| Power consumption | Sleep 15 W | ||||||||||||||||||||||||||
| Power continuous | typically 200W but dependant on cartridges used | ||||||||||||||||||||||||||
| Supported file types | FLAC, WAV, MP3, AAC, AIFF/AIFC, ALAC, OGG/VORBIS, WMA, DSD (DSF and DFF) | ||||||||||||||||||||||||||
| Audio sample rates | 7.35 k, 8 k, 11.025 k, 12 k, 14.7 k, 16 k, 22.05 k, 24 k,29.4 k, 32 k, 44.1 k, 48 k, 88.2 k, 96 k, 176.4 k, 192 k | ||||||||||||||||||||||||||
| Word depths | 16–24 bits | ||||||||||||||||||||||||||
| Control protocol | Compatible with UPnP™ media servers, UPnP™ AV 1.0 control points | ||||||||||||||||||||||||||
| Ethernet | 100Base-T RJ45 | ||||||||||||||||||||||||||
| EXAKT | 2off | ||||||||||||||||||||||||||
| inputs |
1off Ethernet |
||||||||||||||||||||||||||
|
1off Wifi (from Firmware Davaar 75 (Jan 2020)
|
|||||||||||||||||||||||||||
|
1off Bluetooth (from Firmware Davaar 75 (Jan 2020)
|
|||||||||||||||||||||||||||
|
1off HDMI ARC |
|||||||||||||||||||||||||||
1off RCA Line level,
|
|||||||||||||||||||||||||||
1off MM Phono,
|
|||||||||||||||||||||||||||
1off MC Phono,
|
|||||||||||||||||||||||||||
2off Toslink
|
|||||||||||||||||||||||||||
2off SPDIF
|
|||||||||||||||||||||||||||
1off USB Audio Class 2
|
|||||||||||||||||||||||||||
| 2off Exakt-Link | |||||||||||||||||||||||||||
| Sources | LAN Internet radio Tidal Qobuz Calm Radio Spotify Connect NetAux |
||||||||||||||||||||||||||
| AUDIO OUTPUTS (3 slots for Line and Power cartridges) |
2-channel Line level analogue pre-amplifier output cartridge for Linn Selekt DSM A DAC must be installed in this module |
||||||||||||||||||||||||||
2-channel power amplifier cartridge for Linn Selekt DSM - A DAC must be installed in this module |
|||||||||||||||||||||||||||
1.1 channel pre and power amplifier cartridge for Linn Selekt DSM |
|||||||||||||||||||||||||||
Exakt-Link |
|||||||||||||||||||||||||||
1 x SPDIF (From Firmware Davaar75 one SPDIF input can be configured as a fixed volume Stereo digital output) |
|||||||||||||||||||||||||||
| 1 x HDMI Cartridge slot |
SELEKT HDMI SWITCHING MODULE
Linn Surround Module |
| SKU | Linn Selekt DSM Edition |
|---|---|
| Märke | Linn |
| Weight | 11.000000 |
