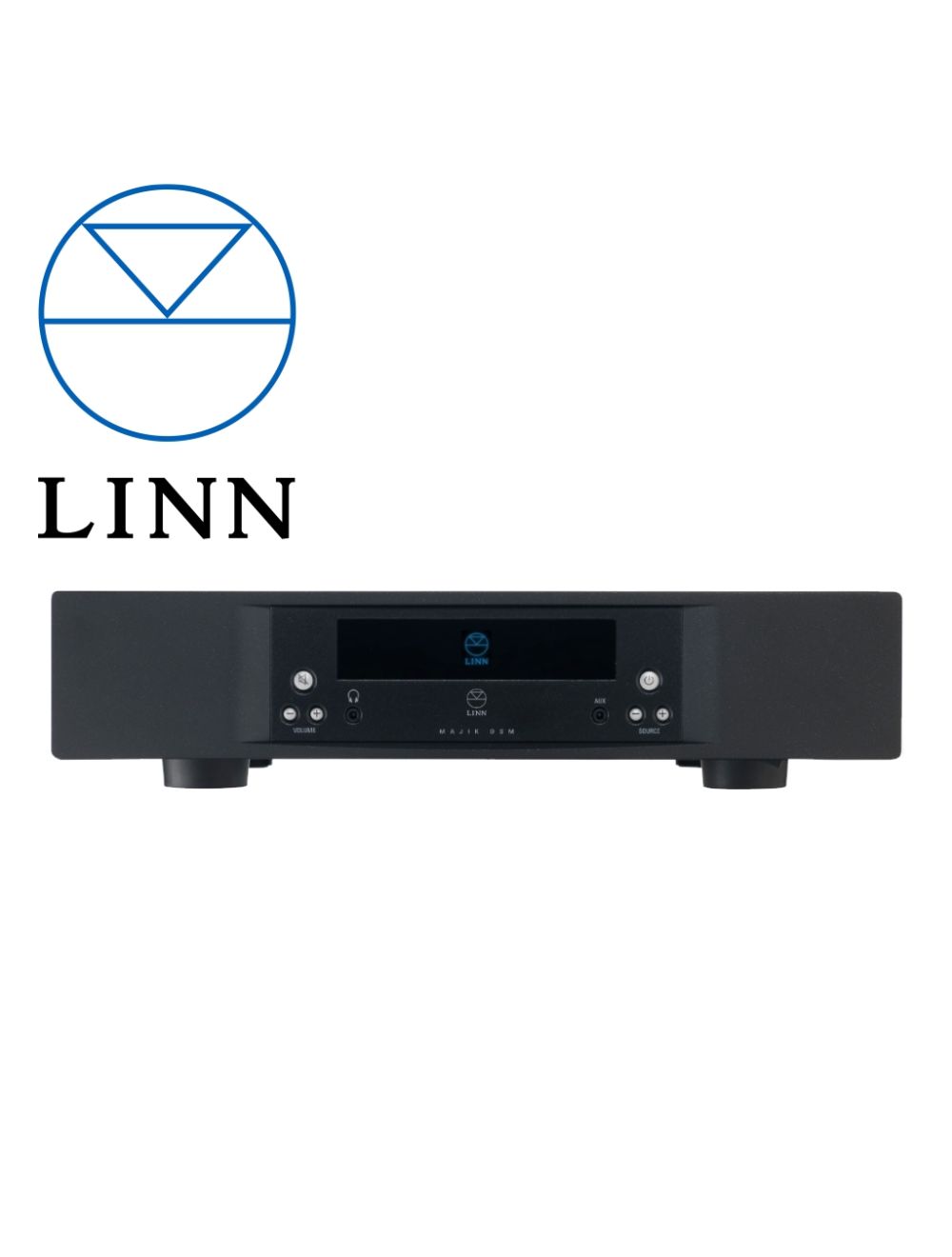

Beg. Linn Majik DSM/3 Svart

Back Panel Connections

1. MAINS INPUT - To connect to the mains electricity supply.
2. HDMI INPUTS - To connect sources with 1.4 & 2.0¹ HDMI outputs
3. HDMI OUTPUT - To connect to a display device with 1.4 & 2.0¹ HDMI/HDMI ARC inputs.
4. EARTH GROUND - To connect to a turntable grounding terminal, or an earthing terminal if no mains earth is available, or to join to the earths of other products in the system to improve performance in areas of poor/noisy electrical earth conditions.
5. DIGITAL INPUTS (Spdif) - To connect sources with Spdif (RCA) digital outputs.
6. DIGITAL OUTPUT (Spdif) - To connect to an external DAC or computer that has an Spdif digital input.
7. DIGITAL INPUTS (Toslink) - To connect sources with Toslink (optical) digital outputs.
8. DIGITAL OUTPUT (Toslink) - To connect to an external DAC or computer that has a Toslink (optical) digital input.
9. ETHERNET - To connect to a network (100Base-T).
10. FALLBACK - To put the device into Fallback mode (used when reprogramming)
11. ANALOGUE INPUTS (RCA, line level)^{4, 5 & 8} - To connect sources with unbalanced (RCA) analogue outputs. Input 4 is a configurable input, which is factory set as a moving magnet phono input for connection to turntables. It can be changed by a Linn dealer to a line-level input or a moving coil phono input (moving coil is an optional upgrade).
12. PRE OUT/PWR IN (RCA, configurable in Konfig)
    • PRE OUT
      1. Variable Connect to a power amplifier with unbalanced (RCA) inputs (default)
      2. Fixed (line level) Connect to a preamplifier with unbalanced (RCA) input
    • PWR IN: Use as a direct input to the internal Majik DSM power amplifer for use with an Exakt setup (ie system with an Akurate Exaktbox 6 and an existing 4 channel amp. This allows you to make use of the Majik DSM's internal power amp for an additional 2 amplified channels).


    • KONFIG SETTINGS FOR PRE OUT/PWR IN USE CASES Typical usage in RED

      Setup	Exakt Channel Allocation	Internal Volume Control	Pre Out/Power In Connector Mode	DUAL Analogue/Exakt Stereo	Notes
      Preout/Variable (Default)	None	Enabled	PRE OUT2	Disabled	Analogue out to power amp
      Preout/Variable	Left, Right	Enabled	PRE OUT2	Enabled	Exakt out and analogue out but out of sync
      Preout/Fixed	None	Disabled	PRE OUT2	Disabled	Analogue out to preamp, poweramp disabled
      Preout/Fixed (Invalid)	Left, Right (N/A)	Disabled	PRE OUT2	Enabled	No Exakt out when volume control is disabled
      PwrIn	None	Enabled	PWR IN3	Disabled	Use case: Akurate DS, Majik DSM as power amp only
      PwrIn	Left, Right	Enabled	PWR IN3	Enabled	Use case: AEB6, Majik 4100
      PwrIn (Invalid)	None	Disabled	PWR IN3	Disabled	Power amp disabled when volume control disabled
      PwrIn(Invalid)	Left, Right	Disabled	PWR IN3	Enabled	Power amp disabled when volume control disabled

13. ANALOGUE OUTPUTS (RCA, fixed level) - To connect to an analogue recording device with unbalanced (RCA) inputs.
14. SPEAKER OUTPUTS - To connect to loudspeakers
15. EXAKT LINK - To connect to Exakt compatible devices

¹ HDMI 2.0 Supports HDCP 2.2 up to and including 60Hz UHD. We recommend using Certifiied HDMI cables be used to ensure all HDMI capabilities
² 'PRE OUT' option formerly labelled (incorrectly) as 'Input' in Konfig
³ 'PWR IN' option formerly labelled (incorrectly) as 'Output' in Konfig
⁴ With ADC of 96kHz/24bit
⁵ MM Phono stage. Max input voltage 50mV rms 47k&#937, 68pF
⁸ Analogue inputs: Input range adjustable 1V-4V rms, impedance 10kΩ
