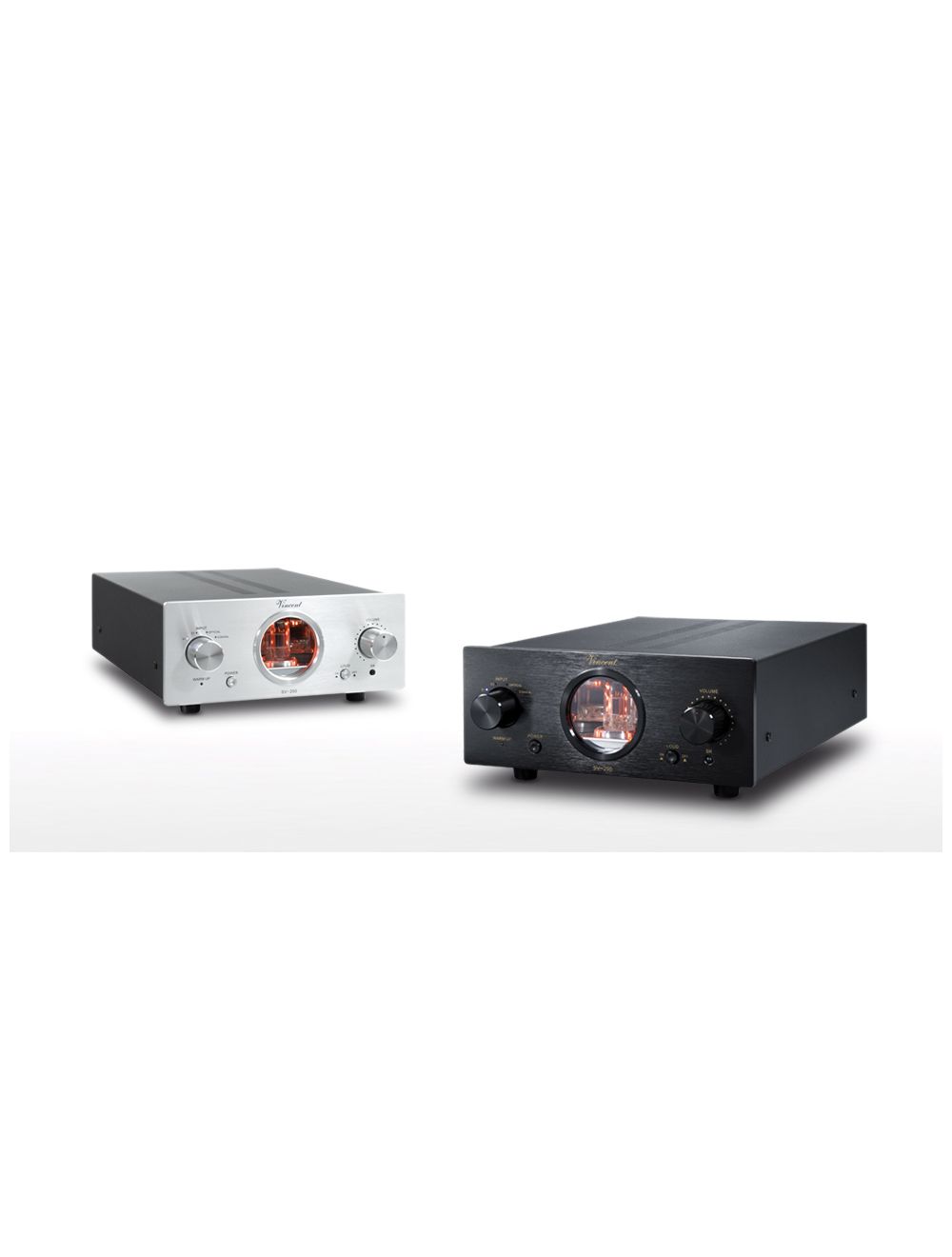

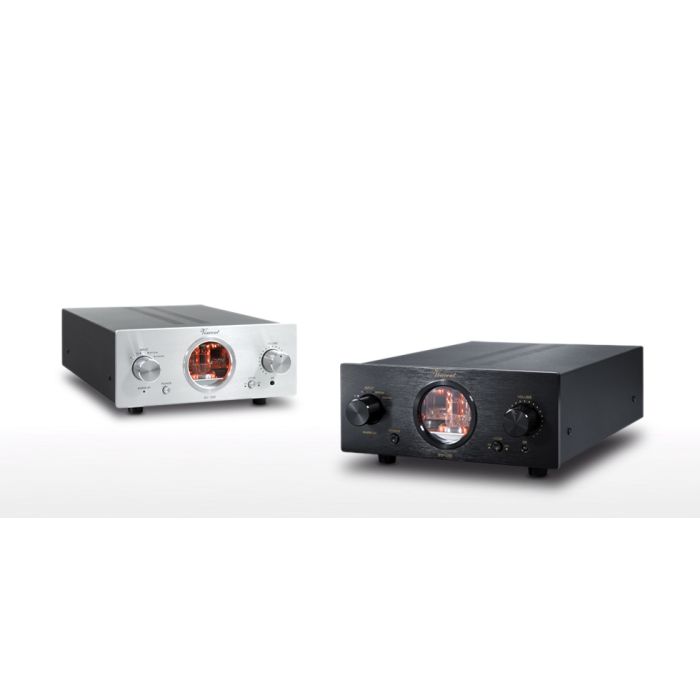

With the SV-200 we present the little brother of the SV-237MK and the SV-700. Despite the compact construction only a few compromises had to be made. A high dynamic and a low noise level stand out for this amplifier. The music signal is conditioned through two 6N1 tubes.
Technical Specifications
Frequency Response: 20 Hz - 20 kHz ±0,5 dB
Nominal Output Power RMS / 8 Ohm: 2 x 25 Watt
Nominal Output Power RMS / 4 Ohm: 2 x 35 Watt
Harmonic Distortion: < 0.1 % (1 kHz, 1 Watt)
Input sensitivity: 220 mV
Signal-Noise Ratio: > 72 dB
Input Impedance: 47 kOhm
Max. Power Consumption: 125 Watt
Inputs: 2 x Stereo RCA, 1 x Coaxial, 1 x Optical
Outputs: 1 x Stereo RCA Pre Out, 1 x Stereo RCA Rec Out, 2 x 2 Speaker Terminal, 2 x 3.5 mm Jack (Power Control)
