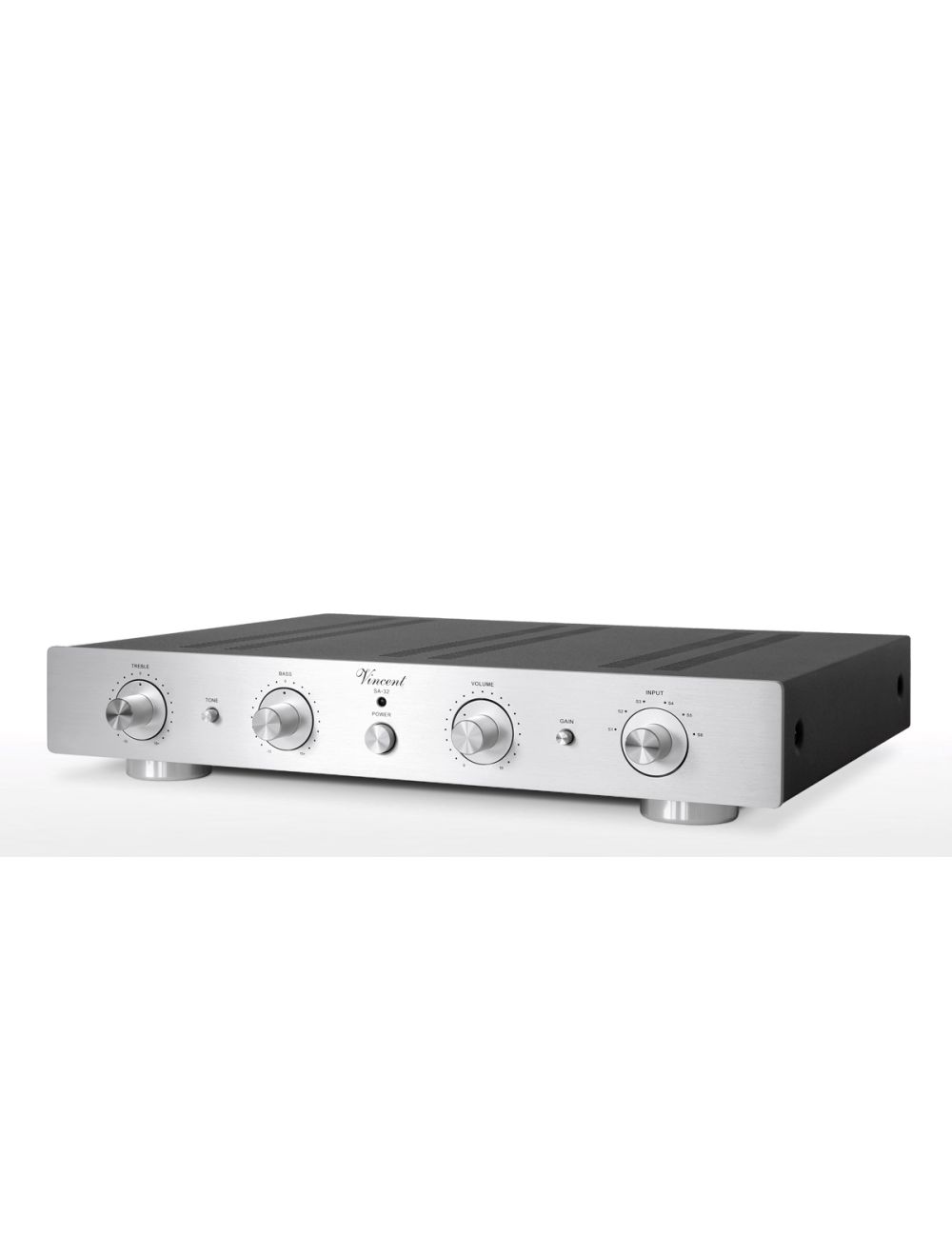

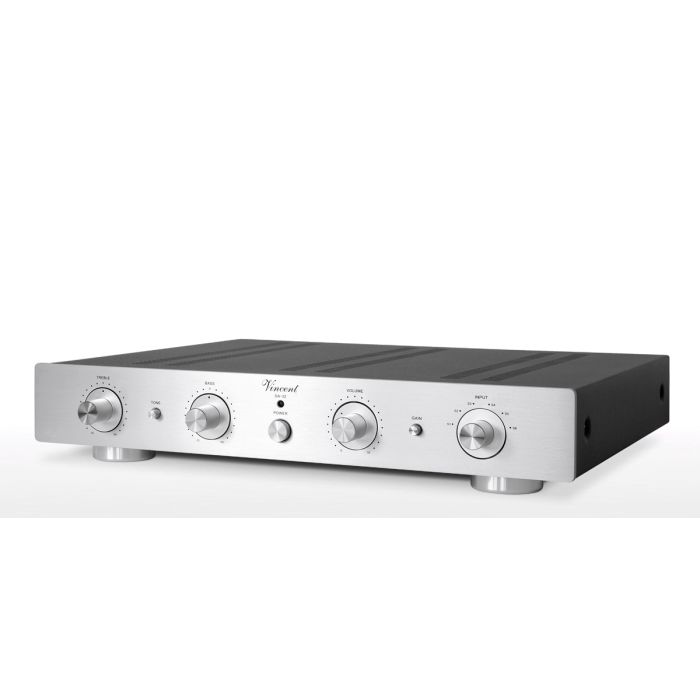

The further development of our hybrid preamplifier SA-31. Compared to the predecessor the SA-32 has additionally symmetrical input- and output connections. Also we imporved the whole circuit again. Now there are two more 6N16 tubes inside, locatet directly in front of the output. Because of this the sound becomes more naturalness and more musicality.
For a comfort operation we added a high-class remote control in a aluminium case.
Technical Specifications
Frequency response: 20 Hz - 20 kHz ±0.5 dB
Nominal Output Voltage: 2 V
Total Harmonic Distortion: < 0.1% (1 kHz, 1 W)
Input sensitivity: 500 mV
Signal to Noise Ratio: > 90 dB
Input Impedance: 47 k Ω
AC power connection type: 230 V/50 Hz
Inputs: 5 x RCA stereo (LINE IN), 1 x XLR-IN
Outputs: 2 x RCA stereo (PRE OUT), 1x XLR-OUT 1 x RCA stereo (REC OUT), 1 x Power Control
