In 1965, the Thorens TD 150, an inconspicuous little turntable, came on the market and thus started a technical revolution in record player manufacturing. For the first time, a spring-suspended sub-chassis with an inner platter driven by a flat belt was used in a mass-produced unit. The principle proved to be very successful and found many imitators in the years since.

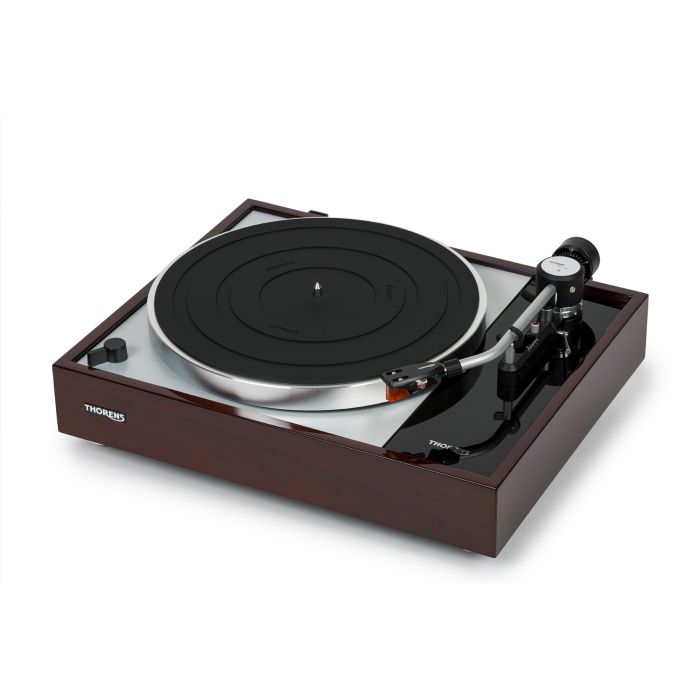

Like its famous predecessor, the new Thorens TD 1500, which will be operated purely manually, features a sub-chassis that decouples the turntable and tonearm shelf from the motor and frame by means of three conical springs. In contrast to the TD 150, these springs can be adjusted from above through corresponding holes in the platter, which makes correct adjustment much easier.
The speed of the DC motor is electronically monitored by an incremental encoder and deviations, e.g. caused by a broom, are automatically corrected. This also enables very good wow and flutter values.
As a real unique selling point in its class, the TD 1500 has XLR outputs in addition to the usual pair of RCA jacks, thus enabling true balanced operation with a suitable MC cartridge.
Function: manual turntable with subchasssis
Drive system: Belt drive
Motor: incremental encoder controlled and stabilized DC motor
Speeds: 33-1/3, 45 rpm.
Speed select: electronical
Platter: 12“ / 1,4 kg Die-cast aluminum platter with 22 mm hight
Tonearm: Thorens TP 150 with SME headshell
Cartridge: Ortofon 2 M Bronze with nude fine line stylus
Anti-Skating: anti-skating weight, which is adjusted on a nylon thread guided over a ruby bearing Shut off -
Outputs: RCA / balanced XLR
Power supply: external 12 V power supply
Dimensions: 420 x 150 x 360 mm (W x H x D)
Weight: 7,9 kg
Finish: black high gloss, walnut high gloss
Scope of delivery: Power Supply, dust cover
SKU | Thorens TD 1500 |
---|---|
Märke | Thorens |
