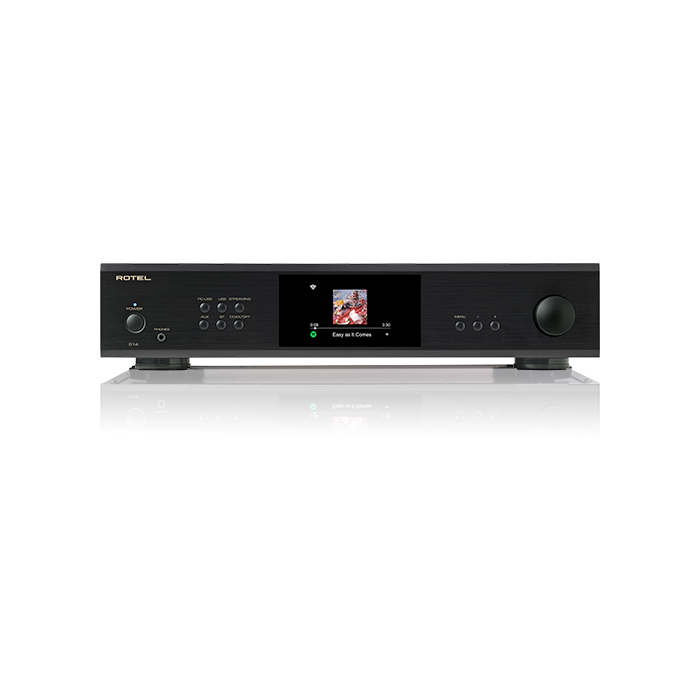

Rotel S14
The Rotel S14 Integrated Network Streamer is an all-in-one solution providing the ultimate in convenience to the near limitless catalog of music delivering 150 Watts of Class AB power.
Album artwork on the front display, included remote, simple operation and intuitive setup ensures the S14 becomes the heart of your music system.
Så lågt som
26 590,00 kr
Tillgänglighet:
I lager
SKU
Rotel S14
Certified Roon Ready
Supports MQA and MQA Studio
2 x 150 Watts of robust
Class AB power,
4 Ohms
ESS premium 32-bit
Digital to Analog Converter
Wireless aptX™ HD
and AAC Bluetooth
DIMENSIONS (W × H × D)
430 × 93 × 345mm
17" × 3 5/8" × 13 1/2"
17" × 3 5/8" × 13 1/2"
FRONT PANEL HEIGHT
80mm (3.15")
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
280W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
9.15kg (20.17lbs.)
BTU RATING (4Ω, 1/8th power)
733 BTU/h
MAXIMUM POWER OUTPUT
150W/Ch (4Ω)
CONTINUOUS POWER OUTPUT
80W/Ch (8Ω)
TOTAL HARMONIC DISTORTION
(THD)
<0.04%
FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, ±0.5dB
Digital Inputs:
10Hz - 90kHz, ±2.0dB, Max
S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 98dB
More Specifications
INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%
DAMPING FACTOR
400
INPUT SENSITIVITY
Line Level Inputs: 200mV
Digital Inputs: -20dBfs
INPUT IMPEDANCE
Line Level Inputs: 47kΩ
Digital Inputs: 75Ω
INPUT OVERLOAD
Line Level Inputs: 4.5V
TONE CONTROLS
±10dB at 100Hz / 10kHz
COAX/OPTICAL DIGITAL INPUT SIGNALS
SPDIF LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 2.0 (up to 24-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
