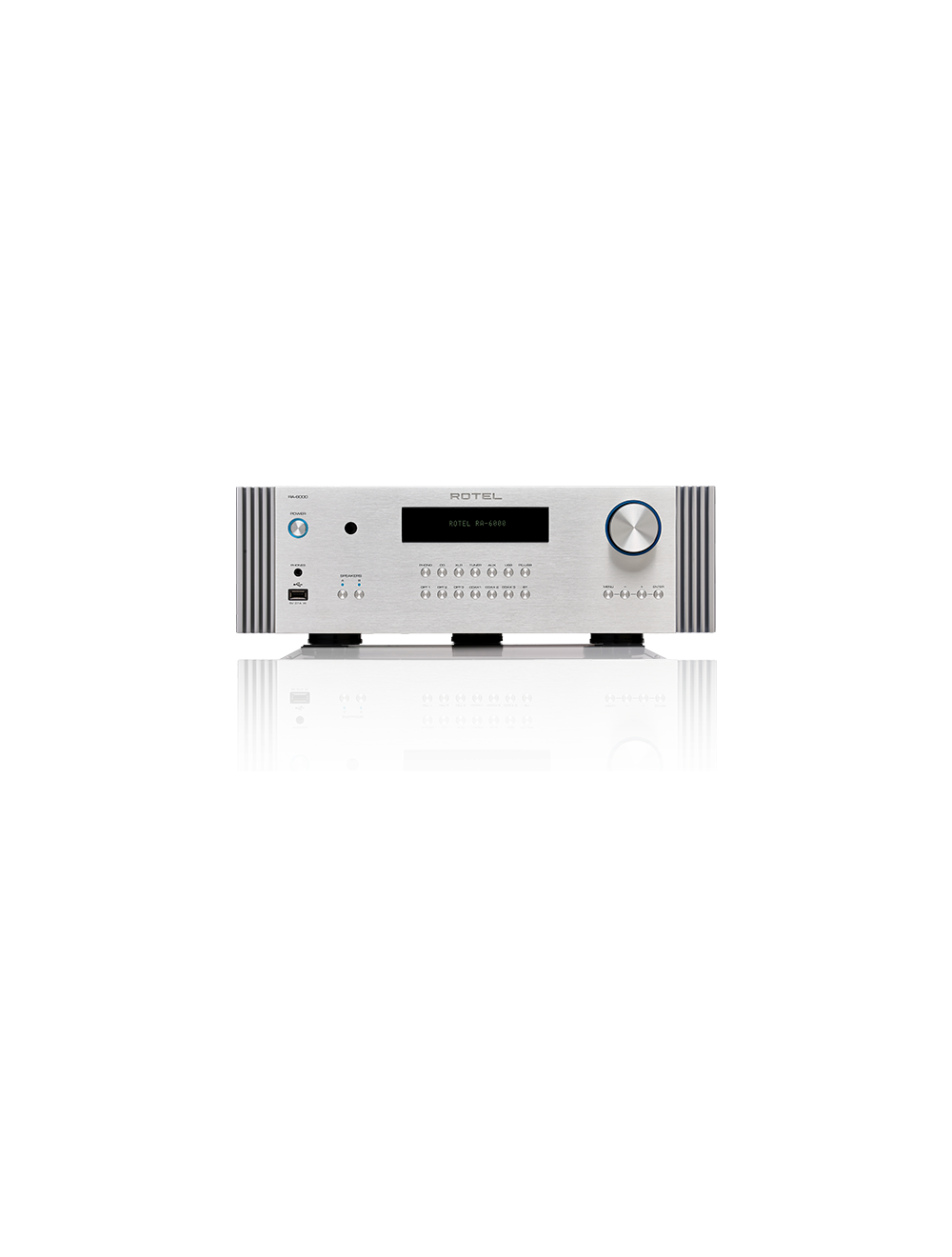

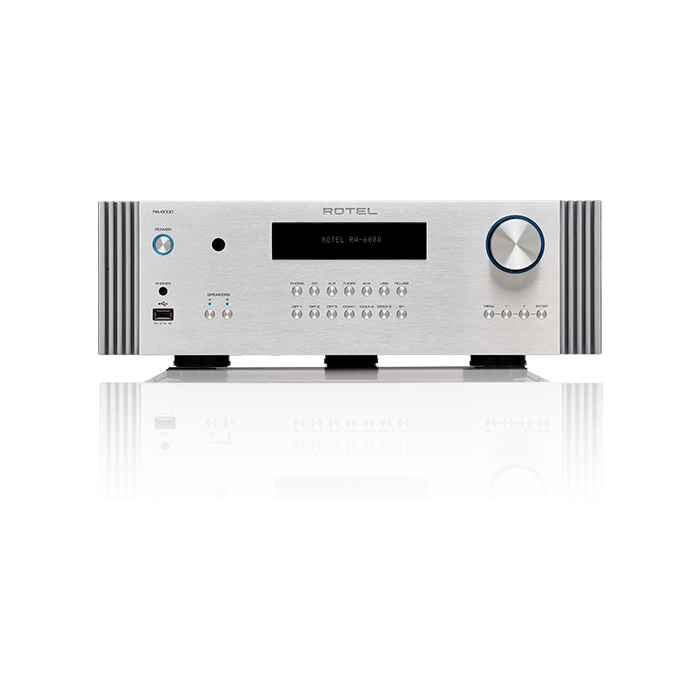

Rotel RA-6000

Engineered with care.

DIMENSIONS (W × H × D)

431 × 144 × 425mm
17" × 5.7" × 16"

FRONT PANEL HEIGHT

3U / 132.6mm (5.25")

POWER REQUIREMENTS

120V, 60Hz

POWER CONSUMPTION

500W

STANDBY POWER CONSUMPTION

<0.5W

NET WEIGHT

18.81kg (41.47lbs.)

BTU (4 ohms, 1/8th power)

1239 BTU/h

Components

MAXIMUM POWER OUTPUT

350W/Ch (4Ω)

CONTINUOUS POWER OUTPUT

200W/Ch (8Ω)

TOTAL HARMONIC DISTORTION

(THD)

<0.0075%

FREQUENCY RESPONSE

Line Level Inputs:

10Hz - 100kHz, ±0.5dB

Digital Inputs:

10Hz - 90kHz, ±2dB

Phono Input:

20Hz - 20kHz, ±0.5dB

S/N RATIO (IHF "A" Weighted)

Line Level Inputs: 103dB

Digital Inputs: 102dB

Phono Input: 80dB

Product Description

The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.

Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested. A Moving Magnet Phono stage is also included for vinyl fans.

Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation.

Ethernet, RS232,12V trigger and external remote input simplify integration with control systems.

The RA-6000 is available in both black and silver colors.

More Specifications

INTERMODULATION DISTORTION

(60Hz:7kHz, 4:1)

<0.03%

DAMPING FACTOR

600

INPUT SENSITIVITY

Line Level Inputs (RCA): 340mV

Line Level Inputs (XLR): 540mV
