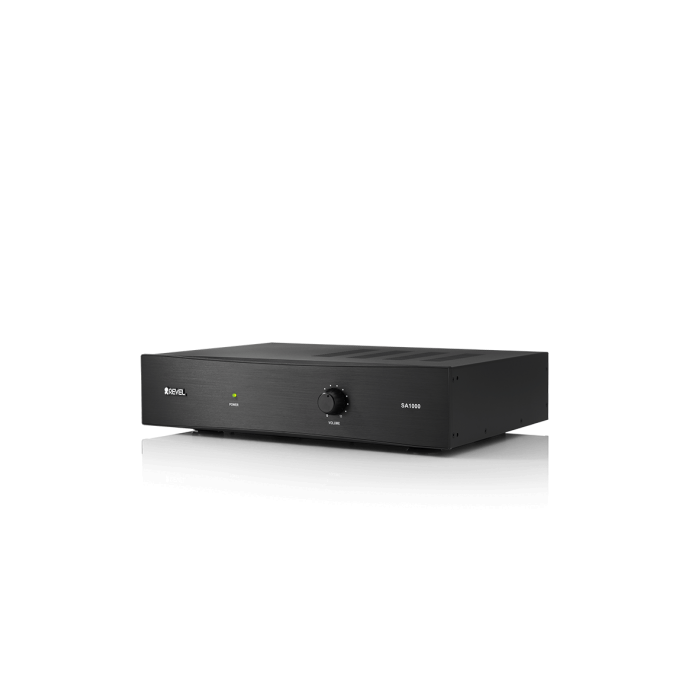

Revel SA1000
Förstärkare för att driva passiva subwoofers, främst utvecklad för att ge idealt förstärkeri till Revel:s B28W-subwoofers.
I lager
- SKU
- Revel SA1000
Specifications
MODEL
SA1000
DESCRIPTION
Amplifier
RATED OUTPUT POWER (RMS) INTO THE MINIMUM IMPEDANCE OF 4 OHMS
700 Watts (350W per Subwoofer)
PEAK POWER
1500 Watts (750W per Subwoofer)
RATED IMPEDANCE
8 Ohms per speaker output
MINIMUM LOAD IMPEDANCE
4 Ohm
MODEL-SPECIFIC EQ 1
Only for Revel B28C; 2: Only for Revel B28W
INPUT SENSITIVITY TO 1W @ 50HZ
16.3mVrms +/- 1dB (Single input driven) Gain = 41.7dB
INPUT OVERLOAD (BOTH INPUTS DRIVEN)
2.0Vrms
INPUT IMPEDANCE
>10K Ohms
LOW PASS CROSSOVER RANGE
50-150Hz
AUTO TURN ON INPUT SENSITIVITY @ 50HZ
Typical 10mV
THD+N AT 1W
<0.3%
THD+N AT RATED OUTPUT POWER
<1%
SIGNAL-TO-NOISE RATIO TO 1W
>65dBA
MINIMUM AC MAINS POWER REQUIREMENTS
Model: 700W, 5A – 100-120VAC-50-60Hz
Model: 700W, 3A – 230VAC-50-60Hz
POWER CONSUMPTION (STANDBY)
0.5W
HEIGHT
3.50in (88.90mm)
WIDTH
17in (431.8mm)
DEPTH
11.04in (280.3mm)
WEIGHT
14 lb (6.35kg)
