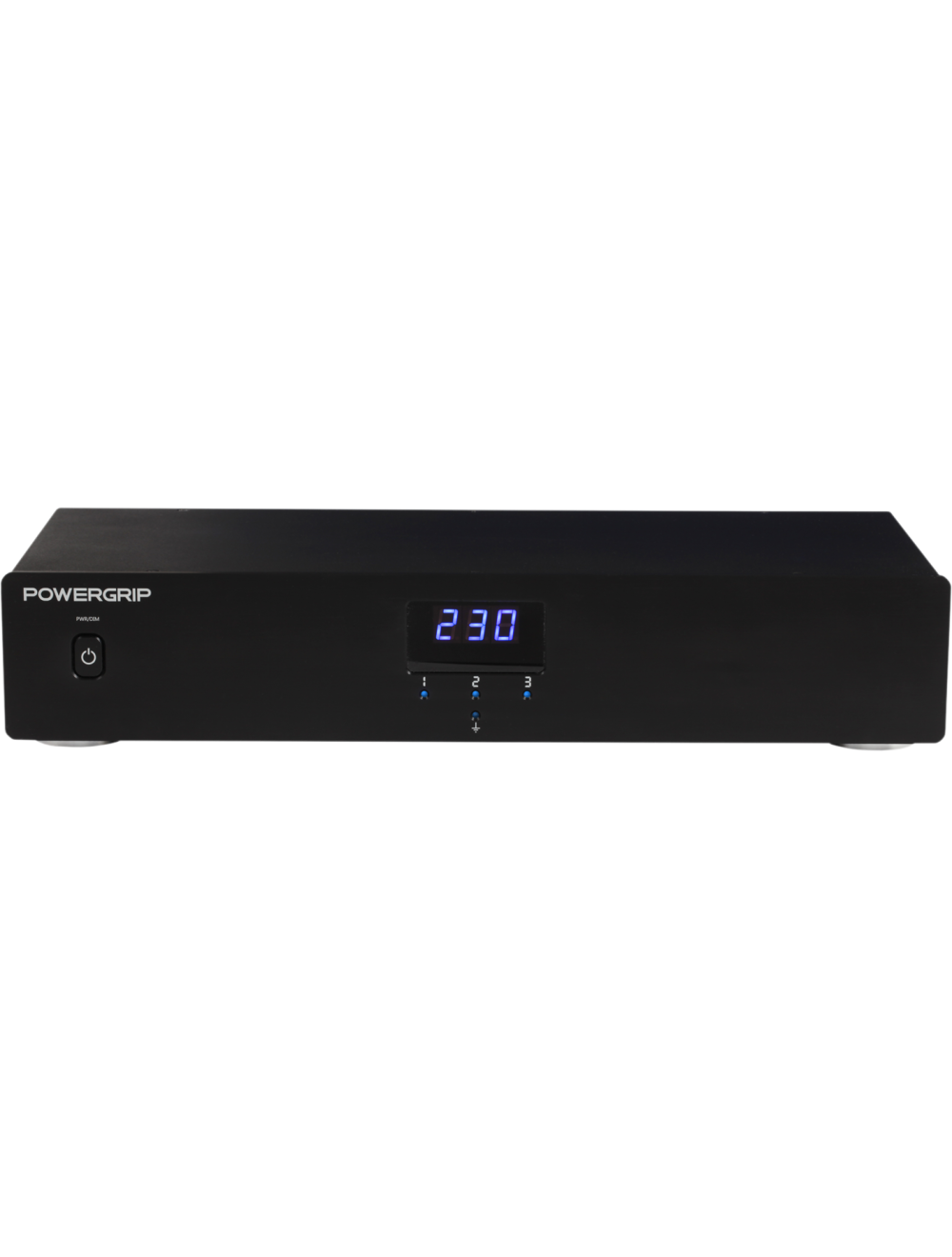

PowerGrip YG-2

SMALL SIZE – BIG POWER

Owing to its compact sized small case (with a height of just 80 mm and a depth of only 185 mm, the YG-2 fits into almost any system, offers 6 outlet sockets – yet offers the same power capacity as its big brother, the YG-1.

HIGH CAPACITY

3680 Watt @ 230 V, 16 Amps. The Total capacity of YG-2 is the same as the top-of-the-line YG-1 and is sufficient to clean and protect the power supply for most high quality stereo or home theatre systems. The outlet sockets are split into three groups.

EASE OF USE

The front panel touch sensor enables you to control several different functions, which you can change in the settings menu. For example you can switch between groups or display other information like voltage or distortion.

SPECIFICATIONS

DESIGN FEATURES

ELECTRICAL CHARACTERISTICS

Voltage	190 - 256V
Capacity (at 230V)	3.680W
Rated current	16A
Own power consumption	10 W (all outlet groups are turned on), 1 W (all outlet groups are turned off)

PROTECTED LINES

220V AC Socets	6
AC line types	Analog, Digital, High Current
COAX lines	1

PROTECTION PARAMETERS

Emergency limits	≤ 190 ± 4V / ≥ 256 ± 4V
Peak current	65.000A

SETUP AND CONTROL

Manual control	Multifunctional button on face-plate and touch sensor
ON/OFF scenarios	Adjustement of delays between socket groups
12V trigger	IN / OUT
RS232 integration	Control4, Crestron, AMX etc.

PACKAGE INCLUDES

AC power cord	1.5 m (optionally - 3 m)
19” rack mounts	Included

GENERAL DATA

Faceplate material	Brushed 4mm aluminum
Overall dimensions (WxHxD)	440 x 80 x 185 mm
Weight	4.8 kg

SKU	PowerGrip YG-2
Märke	Powergrip
Weight	8.000000
