Built-in controls for variable volume, low pass filter and phase (0/180°) for optimum bass levels. Set power toggle to Auto on/off or DC control (12V trigger) for fast and easy on/off power switching in the sub and other home theater equipment—all easily accessible on the back panel.
QUALITY CRAFTED CABINET DESIGN
Strong, rigid and acoustically inert enclosure reduces unwanted internal standing waves for less audible coloration. And non-resonant Meddite MDF construction, with extra bracing and minimum thick baffles, ensures a more lifelike sound
UNIVERSAL COMPATIBILITY
Connect via LFE (unfiltered / low pass disabled) or stereo line level RCA inputs—complements any home theater system (cables not included).

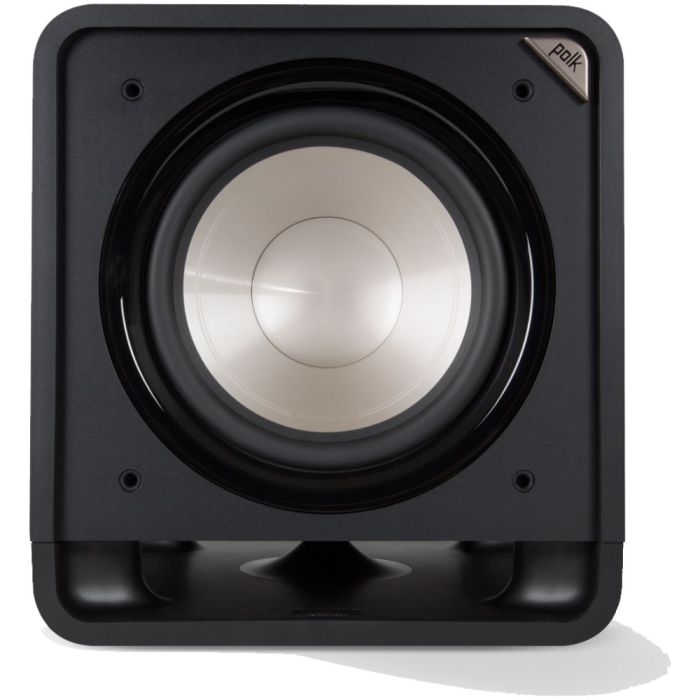

SUBWOOFER
| Total Pieces | 1 |
| Height | 18.5" (46.99 cm) |
| Width | 17.126" (43.5 cm) |
| Depth | 18.11" (46 cm) |
| Weight | 49.9 lbs (22.63 kg) |
| Subwoofer Array Driver Enclosure Type | Power Port Bass Vented |
| Subwoofer Array Driver Complement | •(1) 12" (30.48 cm) d (Round) Polypropylene Dynamic Balance and Klippel optimized driver - Subwoofer |
| Peak Power | 400 Watts |
| Continuous Power | 200 Watts |
| Amplifier Class | Class D |
| Total Frequency Response | 22 Hz → .180 Hz |
| Nominal Impedance | 8 ohms |
| Lower and Upper -3dB Limits | 28 Hz → .120 Hz |
| IO Button Location | Back Panel |
| Adjusts | •Volume +/- •Low Pass Filter (40Hz-160Hz) •Phase (0/180°) •Power: Auto on/off •Power: DC control (12V trigger) |
| Audio Inputs | •LFE (Unfiltered) •Stereo Line Level - (2) RCA |
| US Power Cycle | Energy Star Compliant with Auto Standby (.5W) |
