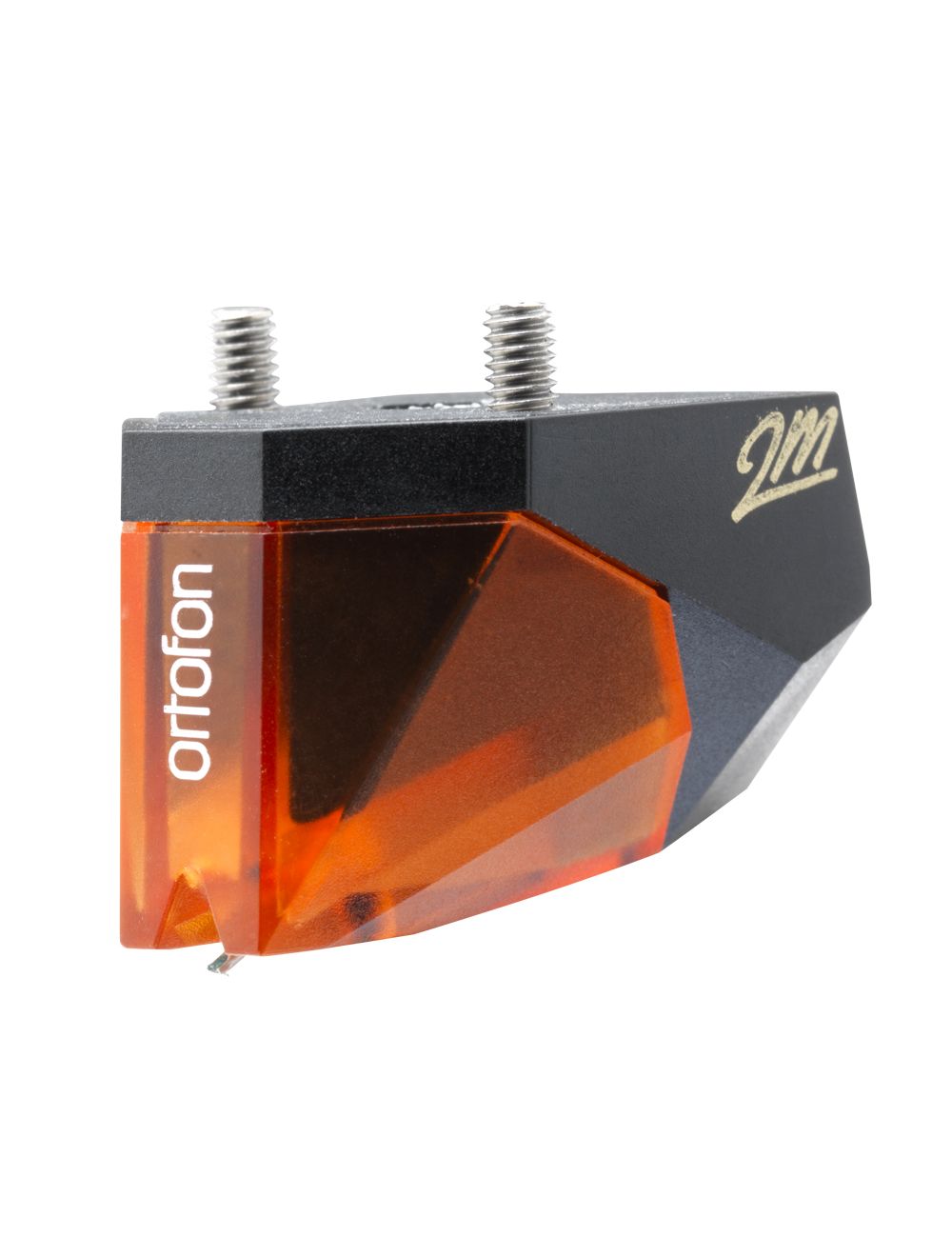

Ortofon 2M Bronze

Universal mount fitting a wide range of tonearms. NB: on Technics models please use the auxiliary weight which is vital in this case.
The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
Elegant hi-tech design
Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with Ortofon TA-110/210, likewise with the major part of tonearms with universal mount
Weight 16,9g, weight with a 2M cartridge pre-mounted 23g
Exclusive plug-and-play solution

utput voltage at 1000 Hz, 5cm/sec.	5 mV
Channel balance at 1 kHz	1 dB
Channel separation at 1 kHz	26 dB
Channel separation at 15 kHz	15 dB
Frequency range at - 3dB	20-29.000 Hz
Frequency response	20-20.000 + 2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force	80 µm
Compliance, dynamic, lateral	22 µm/mN
Stylus type	Nude Fine Line
Stylus tip radius	r/R 8/40 µm
Tracking force range	1,4-1,7g (14-17 mN)
Tracking force, recommended	1,5 g (15 mN)
Tracking angle	20°
Internal impedance, DC resistance	1,2 kOhm
Internal inductance	630 mH
Recommended load resistance	47 kOhm
Recommended load capacitance	150-300 pF
Cartridge colour, body/stylus	Black/Bronze
Cartridge weight	7,2 g
