Ortofon AS-309S

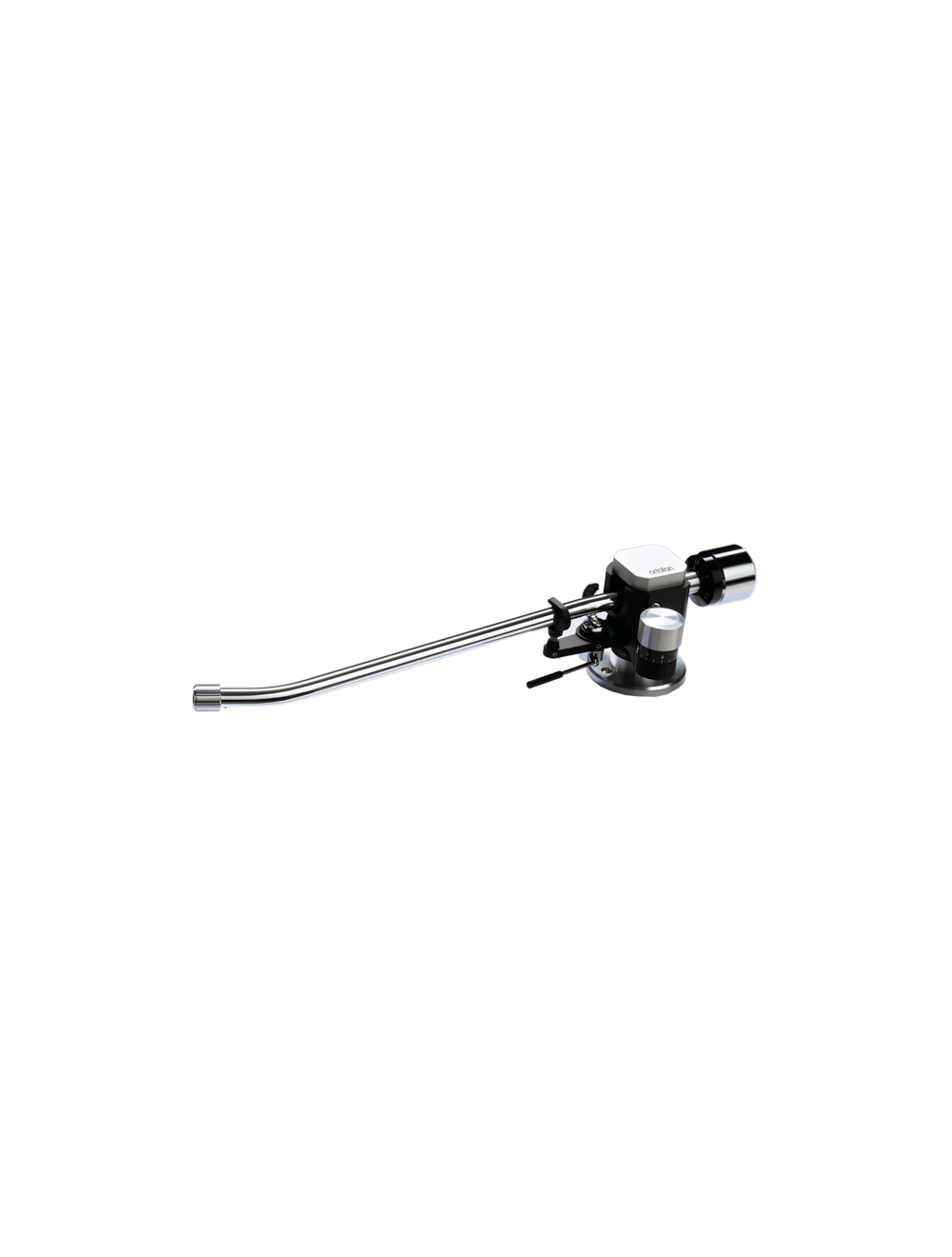

Ortofon AS-309S 12" static-balance tonearm
Ortofon AS-309S 12 inch static-balance tonearm features high quality materials and construction, combined with a nod to analog’s past, for precise sound reproduction combined with a modern-vintage aesthetic.
AS series tonearms can be used for a wide array of cartridges and feature anti-skating control. SPU cartridges require an additional counterweight.
AS-309S 12" tonearm Technical data
Effective mass (without headshell) - 4.0 g
Effective length (distance between the stylus and pivot point) - 329mm
Mounting distance between the pivot point and turntable center - 314mm
Offset angle - 19 degrees
Overhang - 15mm
Tracking force adjusting range ( direct reading) - 0 to 3g
Height adjustment range - 35mm to 55mm
Diameter of the armbase mounting hole - 19mm to 20mm
Diameter of center shaft - 18mm
| SKU | Ortofon AS-309S |
|---|---|
| Märke | Ortofon |
| Weight | 0.000000 |
| Garanti | 1 år |
