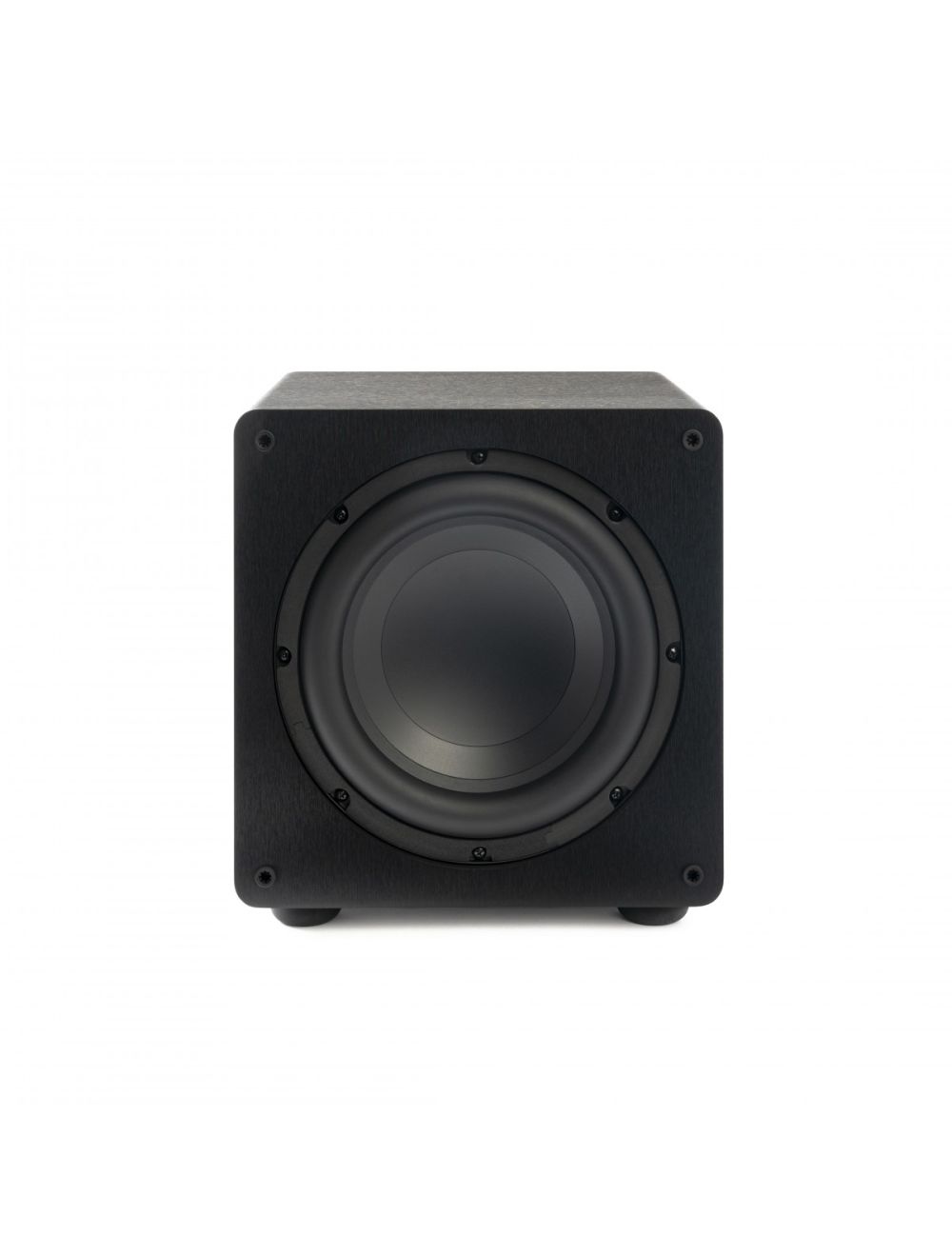

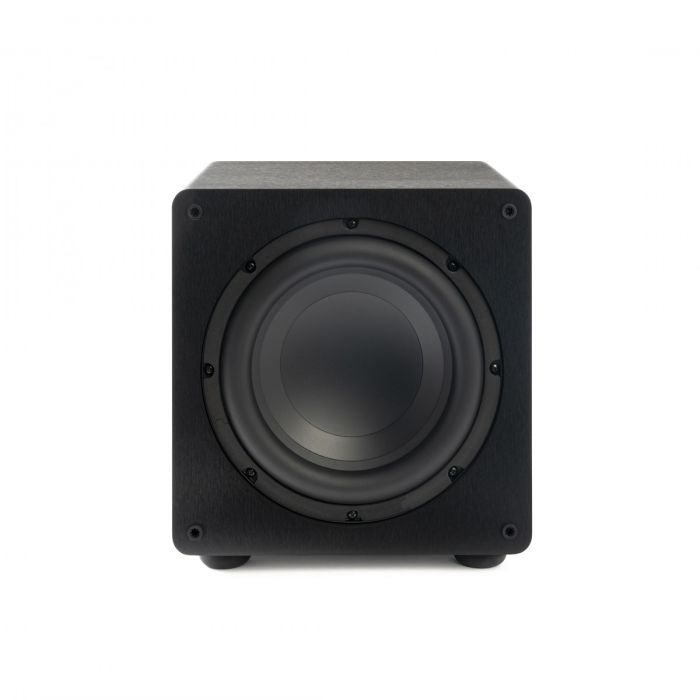

Paradigm Essentials Sub 10

SPECIFICATIONS

DESIGN
10” (254 mm) high-excursion driver, sealed MDF cabinet with reinforced woofer baffle, and Class-D amplifier compatible with an optional wireless subwoofer kit
AMPLIFIER
Note: Power measurements underway to ensure compliance with new FTC regulations. Class-D Amplifier with 400W peak (200W continuous).
AMPLIFIER FEATURES
56-bit high-resolution DSP engine with Auto-On / Off and improved soft-clipping circuitry.
ROOM CORRECTION
N/A
FREQUENCY RESPONSE ON-AXIS
±3 dB from 23Hz – 200Hz
LOW FREQUENCY DRIVER
10” (254 mm) high-excursion carbon-loaded polypropylene cone housed in a stamped steel basket.
LOW FREQUENCY EXTENSION
25 Hz (DIN)
LOW PASS FILTER FREQUENCY
Variable 40Hz - 120Hz (Bypass)
SUB / SAT PHASE ALIGNMENT
0° - 180° Control Panel
INPUTS
Line Level: (2) RCA Left, Right/LFE
COMPATIBLE PRODUCTS
Subwoofer Wireless Kit, sold separately
POWER DRAW
Max: 250W Standby: 0.5W
DIMENSIONS HXWXD
13” x 12.28” x 13.55” (33 cm x 32.4 cm x 34.4 cm)
WEIGHT
23.8 lbs (10.79 kg)
FINISHES
Brushed black vinyl
