Ortofon 2M Red
Ortofon 2M Black

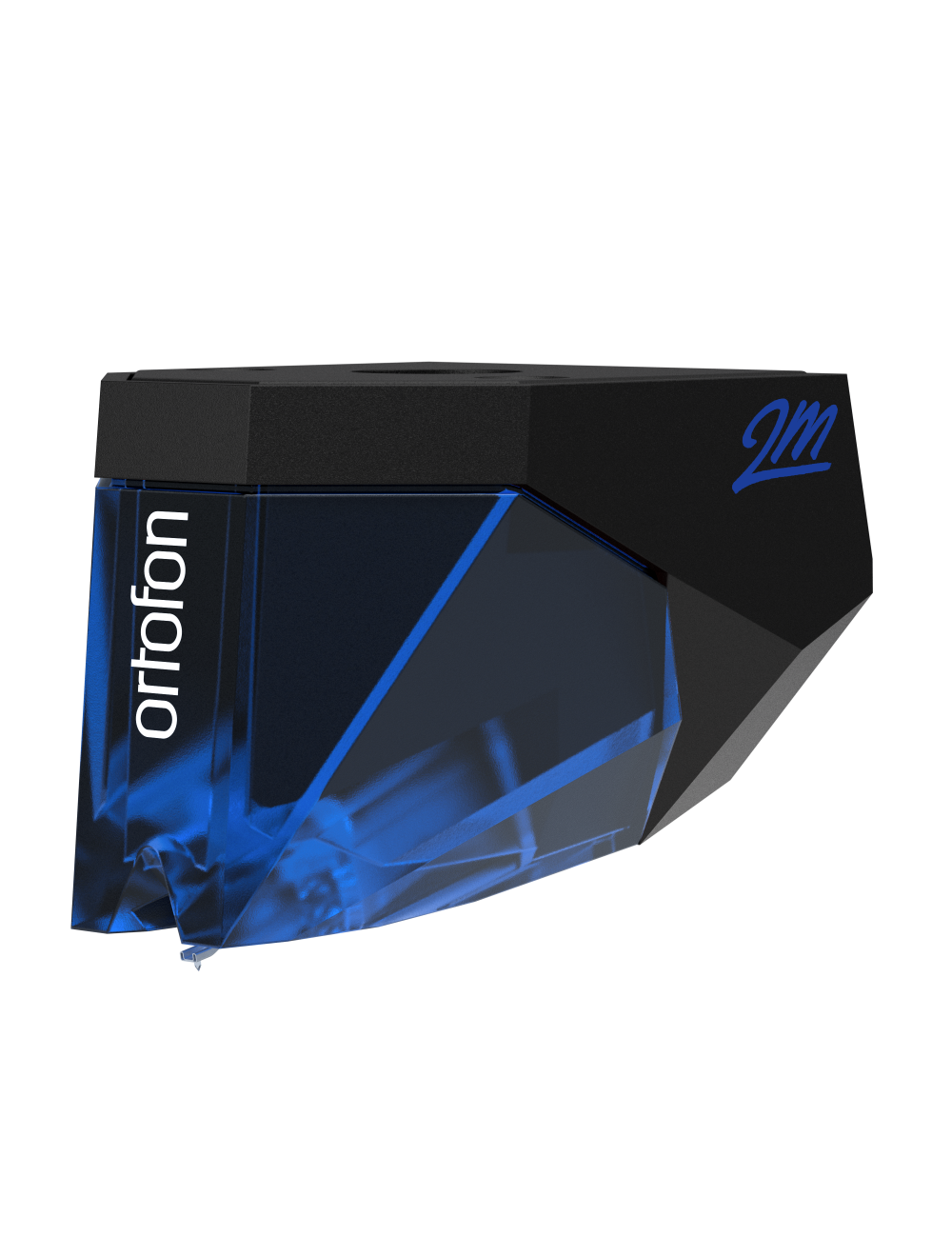

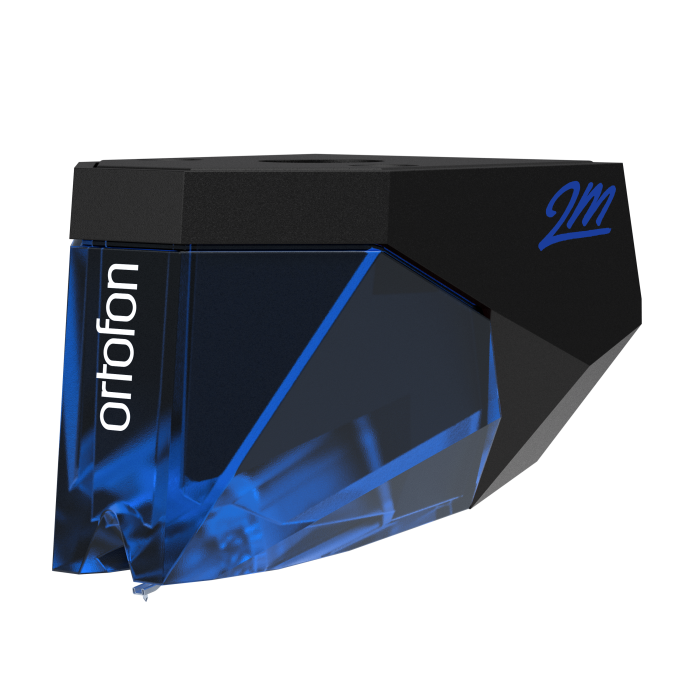

Ortofon 2M Blue
Nål med en förbättrad motor, vilket ger en ökad produktion på 5.5mV med elliptisk diamant och spaltpol stift med en koppartråd
Output voltage at 1000 Hz, 5cm/sec. |
5,5 mV |
Channel balance at 1 kHz |
1,5 dB |
Channel separation at 1 kHz |
25 dB |
Channel separation at 15 kHz |
15 dB |
Frequency range at - 3dB |
20-25.000 Hz |
Frequency response |
20-20.000 Hz + 2 / - 1 dB |
Tracking ability at 315Hz at recommended tracking force |
80 µm |
Compliance, dynamic, lateral |
20 µm/mN |
Stylus type |
Nude Elliptical |
Stylus tip radius |
r/R 8/18 µm |
Tracking force range |
1,6-2,0g (16-20 mN) |
Tracking force, recommended |
1,8 g (18 mN) |
Tracking angle |
20° |
Internal impedance, DC resistance |
1,3 kOhm |
Internal inductance |
700 mH |
Recommended load resistance |
47 kOhm |
Recommended load capacitance |
150-300 pF |
Cartridge colour, body/stylus |
Black/Blue |
Cartridge weight |
7,2 g |
Mer information
SKU |
2M Blue |
Märke |
Ortofon |
Weight |
0.000000 |
Garanti |
1 år |
Färg |
Blå |
