Nu-Vista Vinyl 2 - Specifications

MM

• Gain at XLR outputs: 40dB, 43dB, 46dB, 49dB
• Frequency response: +0.2dB, -0.2dB
• Input sensitivity: 5mV IN for 500mV OUT (at 40dB, 1kHz)
• Intut impedance: 47kohm
• Input capacitance: 50-400pF selectable
• THD at 1kHz: <0.005%
• Overload Margin: 32dB
• Signal to noise ratio: >110dB „A“-wt. at 40dB

MC

• Gain at XLR outputs: 60dB, 63dB, 66dB, 69dB
• Frequency response: +0.2dB, -0.25dB
• Input sensitivity: 500uV IN for 500mV OUT (at 60dB, 1kHz)
• Intut impedance: 5 ohm to 47kohm selectable
• Input capacitance: 400pF fixed
• THD at 1kHz: <0.008%
• Overload Margin: 32dB
• Signal to noise ratio: >98dB „A“-wt. at 60dB

Features

• EQ curves: RIAA, DECCA, COLUMBIA
• Subsonic filters: off, mild (IEC), standard (at 20Hz with 18dB/octave)

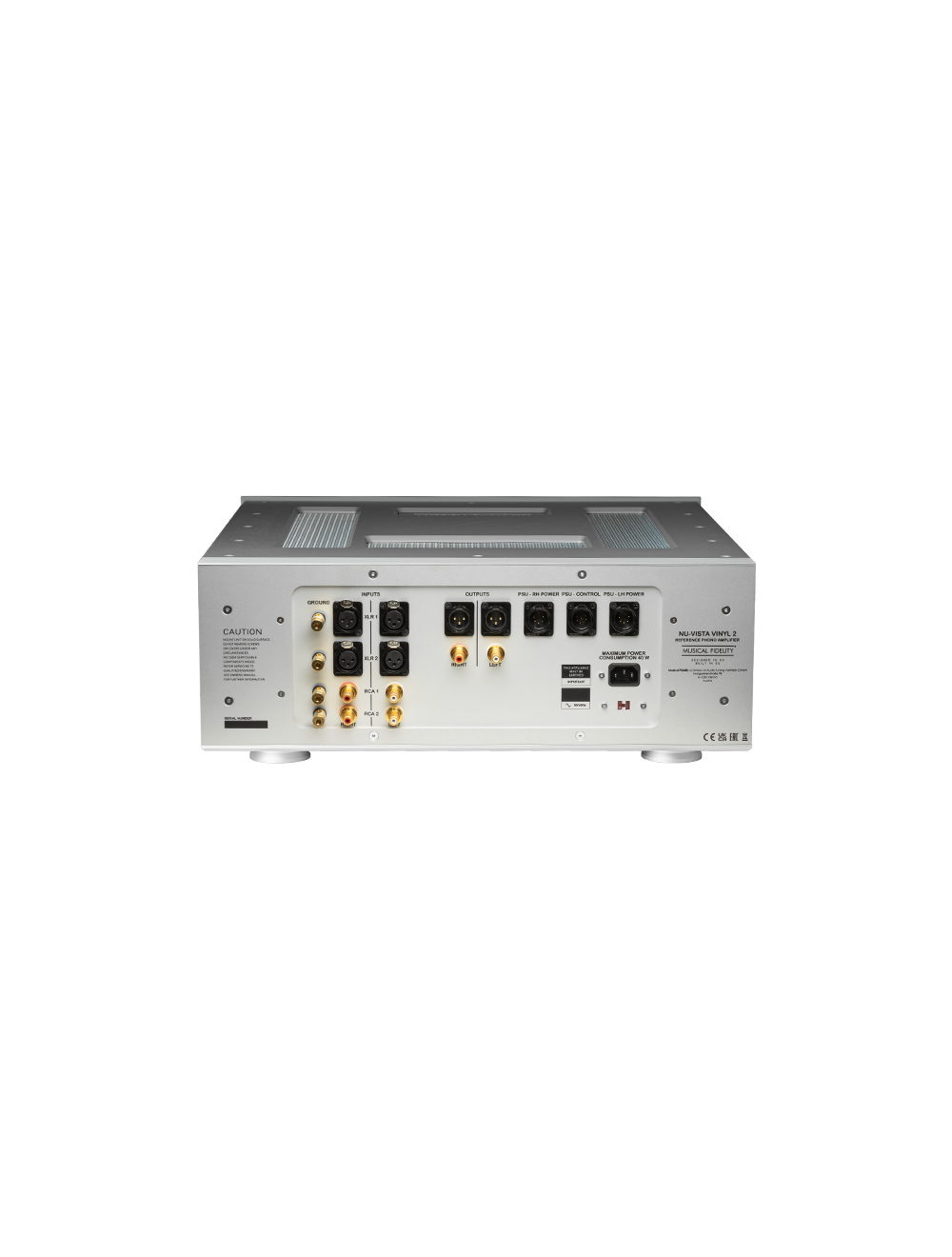

In & Outputs

• Inputs: 2x RCA, 2x XLR
• 1x RCA output: unbalanced, left and right 500mV nom, 10V max
• 1x XLR output: balanced, left and right 1V nom, 20V max

Power requirement

• Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz (alternative)
• Consumption: 40 Watts maximum, <0.5 W in standby (orange LED ON)

General Information

• Dimensions (WxHxD): 483 x 188 x 510 mm
• Power connections for optional Nu-Vista Uni PSU (sold separately)
• Weight: 22 kg net / 30 kg in shipping box
