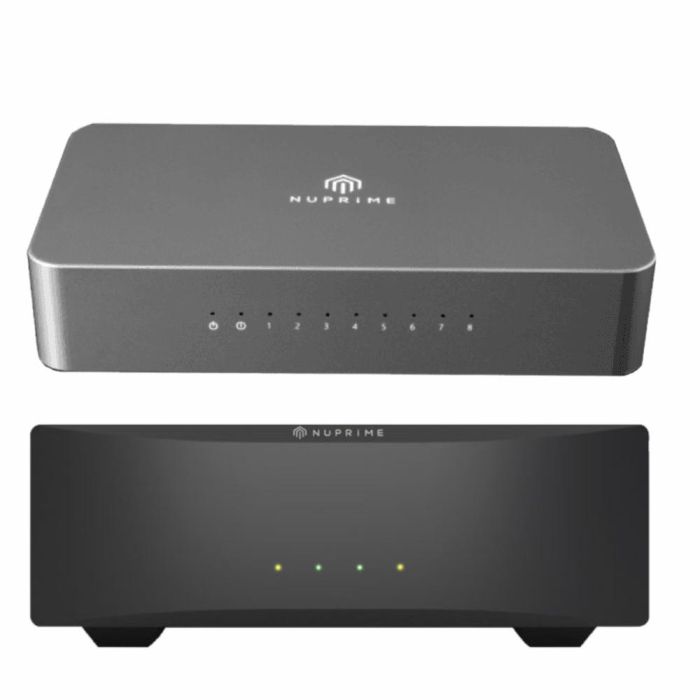

NuPrime SW-8 uppgraderad nätdel

uPrime licenses Omnia SW-8 from Thunder Data Co. Ltd., maker of Bonn N8. Omnia SW-8 differs from Bonn N8 with an upgraded low noise power supply and aluminum chassis.

Features

• Eight AUDIO GRADE 100 / 1000 Base-T Gigabit Ethernet Ports
• Superior main clock accuracy
• Customized Silent Angel Noise Absorber (SANA)
• Two noise isolator for main power circuit
• Two noise isolator for clock generator circuit
• Medical Grade power adaptor

Precise Control Of Clock Signal

TCXO (Temperature Compensation crystal Oscillator)

The heart of Omnia SW-8 is a customized TCXO with an extreme accuracy of 0.1ppm, much higher than a standard TCXO. The result is a more accurate network signal and stable music data transmission.

Main Circuit Board

• Two electrical noise isolation circuits, with noise rejection rate 17dB, for power circuit.
• Two electrical noise isolation circuits, with noise rejection rate 20dB, for clock generation circuit.
• This noise isolation circuit ensures Omnia SW-8 to generate stable network signals.

High Permeability EMI Absorber

The Omnia SW-8 utilizes EMI absorber at the inner side of the bottom case to further reduce circuit noise.

Result In Jitter Improvement

The quality of network signal from Omnia SW-8 is 90% better than that of a general switch in jitter measurements.

Regular Home Switches jitter is as high as 705 ps.

Omnia SW-8 jitter is much lower (369 ps)

Low power devices such as DAC, streamer, CD player, media server, and digital music player are susceptible to AC noise from switching mode power adapter. However, not any linear power supply will suffice as a replacement for the switching mode power supply.

NuPrime LPS-205 linear power supply incorporated a fully balanced El-frame transformer architecture design that is less susceptibility to core saturation from DC offset.

The following features make LPS-205 a Hi-Fi power supply with clean and stable output power designed for audiophiles:

• Low noise MOSFET
• EMI filter
• Soft start & fanless design
• Full transformer epoxy resin package to avoid vibration interference
• Low dropout linear output
• Overvoltage protection
• Overcurrent protection
• Over-temperature protection
• Lightning protection
• Large capacitance output higher than 35,000 uF)

Accessories

• DC To DC cable X 2
• Power cable X 1
• USB-C cable X 1

Use Case

Recommended Setup

For best performance, connect Omnia SW-8 to the router and all network audio components to Omnia SW-8.
