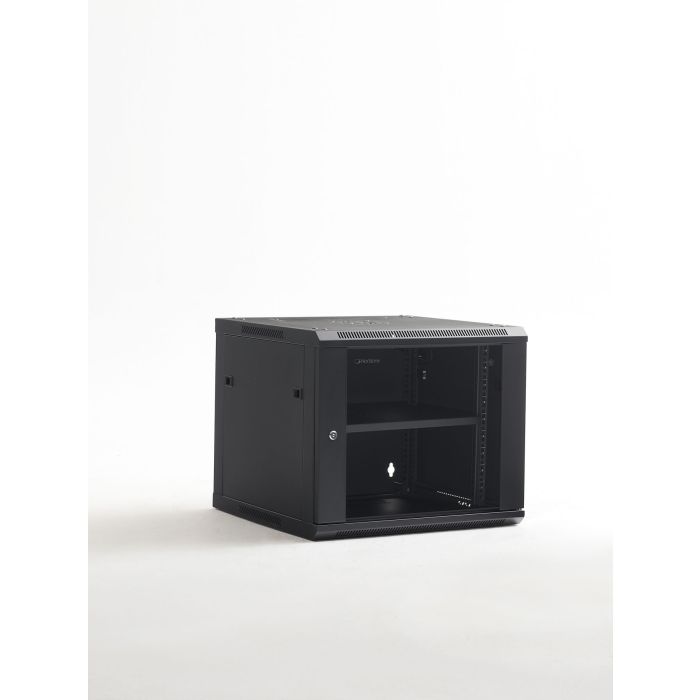

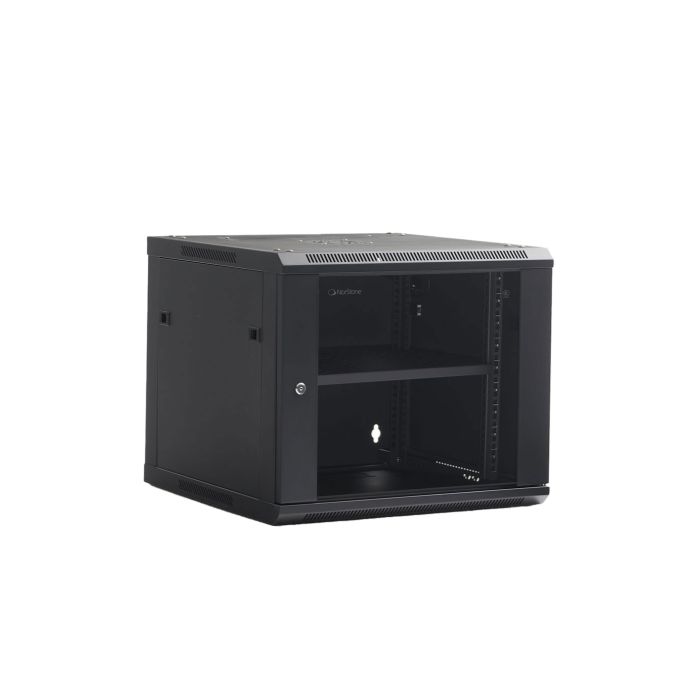

Norstone Pro 19" Wall Rack 9u
The Wall Rack 9U is a 19” wall-mounted cabinet ideal for storing and organizing electronic and IT equipment. With a capacity of 9 units, it offers a robust and practical solution for network and audiovisual installations. Designed in satin black metal, it blends easily into any environment. It features a tempered glass door with lock, integrated fan and removable side panels for easy access to cabling.
I lager
- SKU
- NORPRO1007
2 490,00 kr
Köp nu, betala med
Läs mer
Betala 253,00 kr/månad i 12 månader (0% ränta).
Uppläggningsavgift: 295,00 kr
Administrationsavgift per månad: 45,00 kr
För 12 månader blir det totalt 3 326,00 kr.
Technical Details
Capacity & Dimensions
- Capacity: 9U (19")
- Material: Metal
- Color: Satin Black
- External Dimensions (W × H × D): 600 × 510 × 600 mm
- Maximum Usable Depth: 540 mm
- Net Weight: 22.2 kg
Design & Construction
- Ventilation: 1 integrated top fan
- Cable Entries: Top, rear, and bottom (closable)
- 19" Front Profiles: Adjustable in depth (up to 540 mm)
- Mounting: Square-punched holes for clip-on cage nuts
- Security: Tempered glass door with key lock
- Side Panels: Removable for easy installation and wiring
- Included Shelf: 1 fixed shelf
- Maximum Shelf Load: 30 kg
- Maximum Rack Load: 50 kg
Packaging
- Delivery: Supplied unassembled with screws, assembly plan, and required tools
- Box Dimensions (L × H × D): 650 × 245 × 650 mm
- Gross Weight: 23.8 kg
Compatible Accessories
The 9U Wall Rack is compatible with several optional accessories to optimize its use:
Ventilation
- Fan Tray – 2 Fans
- Fan Tray with Thermostat – 2 Fans
Shelves
- Fixed Shelf for Rack
- Sliding Shelf for Rack
Connection Panels & Organization
- 24-Port RJ45 CAT6 Patch Panel
- Cable Management Brush Strip
- 1U Cable Organizer Strip
Power Distribution
- 10-Socket Schuko Power Strip
- Power Strip with Switch (8 Schuko Sockets)
Blanking Panels
- Blanking Panels (1U, 2U, 3U, 4U)
Ventilation Panels
- Ventilation Panels (1U, 2U, 3U, 4U)
The 9U Wall Rack is an ideal solution for professionals seeking a secure, ventilated, and modular installation for 19" equipment.
Documents
| SKU | NORPRO1007 |
|---|---|
| Märke | Norstone |
