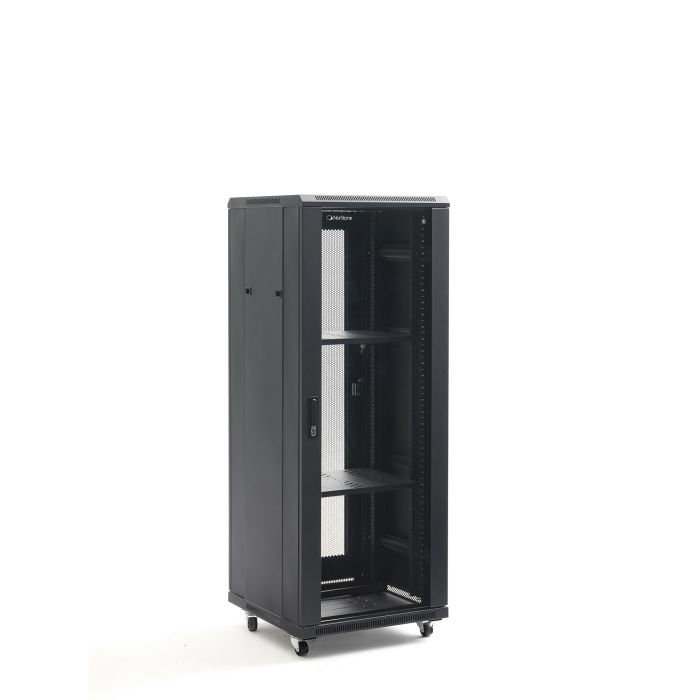

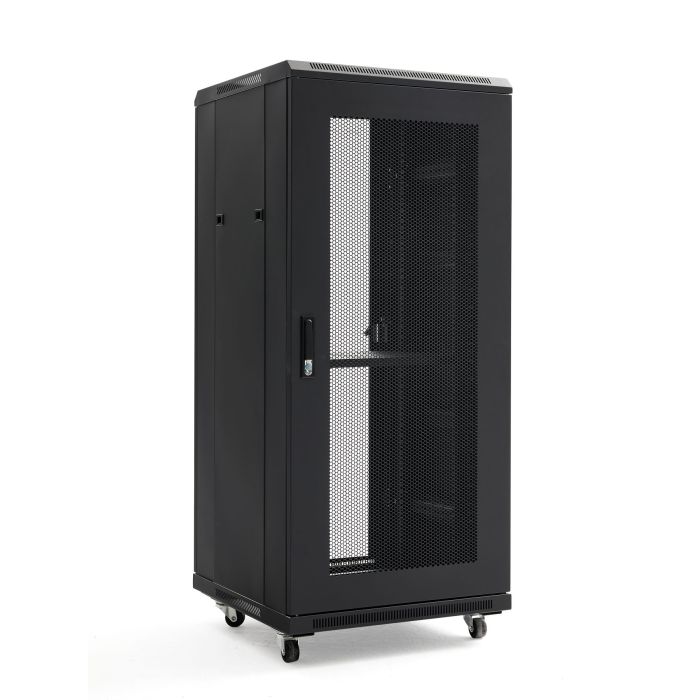

Norstone Pro 19" Rack 32U
The NorStone 32U - 19" Rack is a robust and functional storage solution designed to accommodate up to 32 units of 19" equipment. This rack is ideal for professional environments where organization and ventilation of equipment are essential. It is equipped with integrated ventilation grilles on the top, including 2 fans for optimal temperature management. The removable side panels facilitate installation and cabling, while the perforated square holes allow for easy use with clip-in cage nuts. The tempered glass door, equipped with a key lock and butterfly handle, offers both security and aesthetics. Additionally, the rack is mounted on 80 mm casters and leveling feet for enhanced mobility and stability.
I lager
- SKU
- NORPRO1004
7 490,00 kr
Köp nu, betala med
Läs mer
Betala 670,00 kr/månad i 12 månader (0% ränta).
Uppläggningsavgift: 295,00 kr
Administrationsavgift per månad: 45,00 kr
För 12 månader blir det totalt 8 326,00 kr.
Capacity & Dimensions
- Storage Capacity: 32U
- Maximum Usable Depth: 540 mm
- Dimensions with Casters (W × H × D): 600 × 1610 × 600 mm
- Dimensions without Casters (W × H × D): 600 × 1560 × 600 mm
- Net Weight: 55.4 kg
- Maximum Weight per Shelf: 30 kg
Design & Construction
- Material: Metal
- Color: Satin Black
- Integrated Fans: 2
- Included Fixed Shelves: 2
- Casters: 4 × 80 mm
- Leveling Feet: 4
Door
- Door Type: Tempered Glass Door
- Lock: Key Lock with Butterfly Handle
- Reversible: Yes
Packaging
- Delivered unassembled with screws, assembly instructions, and required tools.
- Number of Boxes: 3
- Box 1: 1535 × 620 × 160 mm — 20.4 kg
- Box 2: 1490 × 670 × 85 mm — 23.6 kg
- Box 3: 660 × 635 × 125 mm — 16 kg
- Total Gross Weight: 60 kg
Compatible Accessories
Ventilation
- Fan Tray – 2 Fans
- Fan Tray with Thermostat – 2 Fans
Shelves
- Fixed Shelf for Rack
- Sliding Shelf for Rack
Connection Panels & Cable Management
- 24-Port RJ45 CAT6 Patch Panel
- Cable Management Brush Panel
- 1U Cable Organizer Panel
Power Distribution
- 10-Outlet SCHUKO Power Strip
- Power Strip with Switch (8 SCHUKO Outlets)
Blanking Panels
- Blanking Panels (1U, 2U, 3U, 4U)
Ventilation Panels
- Ventilation Panels (1U, 2U, 3U, 4U)
The 32U Rack is an ideal solution for professionals looking for a secure, ventilated, and modular installation for 19-inch equipment.
Documents
- Technical Datasheet
| SKU | NORPRO1004 |
|---|---|
| Märke | Norstone |
