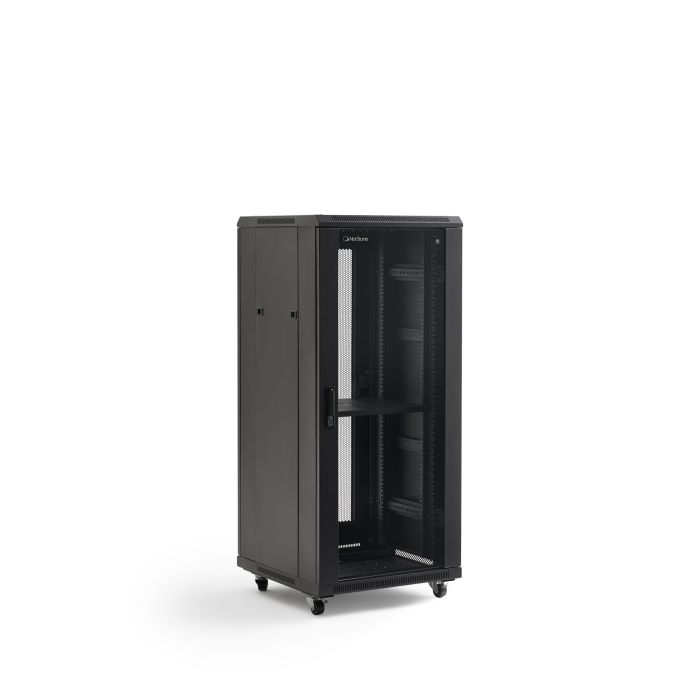

Norstone Pro 19" Rack 27U
NorStone's Rack 19“ - 27U is a robust and functional storage solution designed to accommodate up to 27 units of 19” equipment. This rack is ideal for professional environments where organization and ventilation of equipment are essential. It features integrated ventilation grilles on the top, including 2 fans for optimal temperature management. Removable side panels facilitate installation and wiring, while perforated square holes allow easy use with clip-on cage nuts. The tempered glass door, equipped with key lock and butterfly handle, offers both security and aesthetics. What's more, the rack is mounted on 80 mm castors and height-adjustable feet for enhanced mobility and stability.
I lager
- SKU
- NORPRO1003
Capacity & Dimensions
- Storage Capacity: 27U
- Maximum Usable Depth: 540 mm
- Dimensions with Casters (W × H × D): 600 × 1385 × 600 mm
- Dimensions without Casters (W × H × D): 600 × 1305 × 600 mm
- Total Net Weight: 48.6 kg
- Maximum Weight per Shelf: 30 kg
Design & Construction
- Material: Metal
- Color: Satin Black
- Built-in Fans: 2
- Included Fixed Shelf: 1
- Casters: 4 × 80 mm Casters
- Height-Adjustable Feet: 4
Door
- Door Type: Tempered Glass Door
- Lock: Key Lock with Butterfly Handle
- Reversible: Yes
Packaging
- Delivered unassembled with screws, assembly instructions, and required tools.
- Number of Packages: 3
- Package 1: 1310 × 620 × 250 mm — 18 kg
- Package 2: 1280 × 670 × 80 mm — 20.4 kg
- Package 3: 660 × 640 × 110 mm — 14.6 kg
- Total Gross Weight: 53 kg
Compatible Accessories
Ventilation
- Fan Tray – 2 Fans
- Fan Tray with Thermostat – 2 Fans
Shelves
- Fixed Shelf for Rack
- Sliding Shelf for Rack
Connection Panels & Cable Management
- 24-Port RJ45 CAT6 Patch Panel
- Cable Management Brush Panel
- 1U Cable Organizer Panel
Power Distribution
- 10-Outlet SCHUKO Power Strip
- Power Strip with Switch (8 SCHUKO Outlets)
Blanking Panels
- Blanking Panels (1U, 2U, 3U, 4U)
Ventilation Panels
- Ventilation Panels (1U, 2U, 3U, 4U)
The 27U Rack is an ideal solution for professionals seeking a secure, well-ventilated, and modular installation for 19-inch equipment.
Documents
- Technical Data Sheet
| SKU | NORPRO1003 |
|---|---|
| Märke | Norstone |
