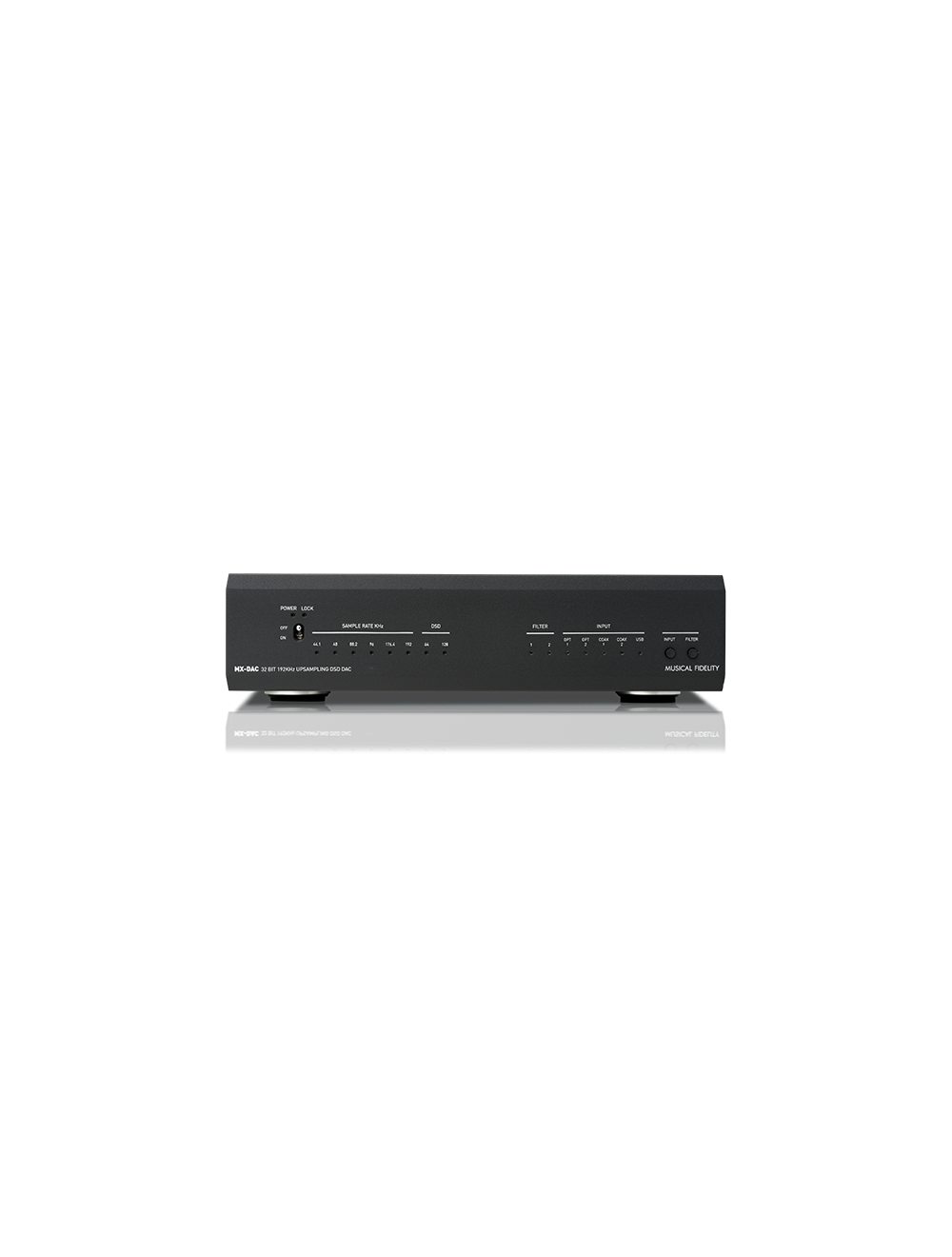

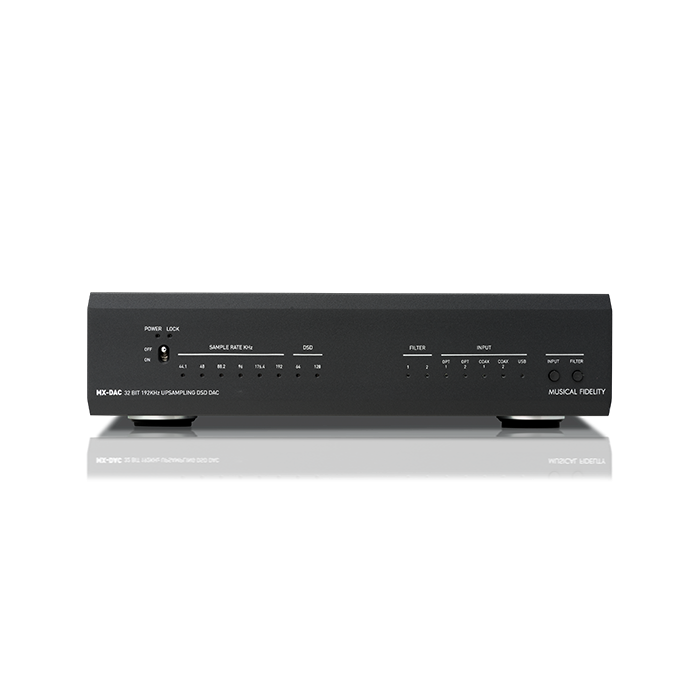

Musical Fidelity MX DAC
The MX-DAC is a tremendous performer. It has ultra low distortion, very wide bandwidth and low noise. The technical performance of the MX-DAC is on a par with any other DAC at any price. Jitter is about 12pps, s/n ratio is -116dB (‘A’ weighted), linearity is +0.2dB at -116dB, stereo separation is -104dB at 1kHz, frequency response is ruler flat and distortion is 0.00025% at 1kHz and 0.0003% at 20kHz. These technical figures are state-of-the-art and show that our implementation is almost perfect, to ensure completely neutral and accurate digital-to-analogue conversion of any digital input.
Ej i lager
- SKU
- Musical Fidelity MX DAC
Så lågt som:
0,00 kr
Så lågt som:
MX-DAC - Specifications
DAC Structure
- Sample rate converter: SRC4392 up-sampling data to 192kHz
- Digital to Analogue converter: PCM1795 32 bit / 192kHz Multi-bit Sigma-Delta type
Performance
- Output Voltage: 2 Volts RMS single-ended (RCA)
- Output Voltage: 4 Volts RMS balanced (XLR)
- PCM THD: <0.002%
- PCM THD (+ noise): <0.003%
- DSD THD: <0.003%
- DSD THD (+ noise): <0.006%
- PCM Frequency Response: –3dB, 2Hz to 90kHz
- PCM Frequency Response: –3dB, 2Hz to 40kHz
- Channel Separation: -110dB
Capabilities
- Coaxial Inputs: S/PDIF up to 24 bit / 192kHz
- Optical Inputs: S/PDIF up to 24 bit / 192kHz
Inputs
- 2x RCA coaxial connector SPDIF 32-192 kbps
- (16-24 bit stereo PCM)
- 2x TOSLINK optical connector 32-192 kbps
- (16-24 bit stereo PCM)
- 1x USB type ‘B’ connector
- Asynchronous data stream at up to 24-bit/192kHz PCM as well as DSD64 and DSD128
- (Determined by source file/computer settings)
Outputs
- 1x line level RCA (single-ended)
- 1x XLR Male sockets (balanced) to EIA RS-297-A
- General
- Dimensions - WxHxD (mm): 220 x 53 x 215
- Weight (unpacked / packed): 1.9Kg / 2.4Kg
- Power Consumption: <0.25 Watts standby, <1 Watt max.
Supplied Accessories
- 1x 5v / 2A DC power supply (90-250VAC universal worldwide supply)
- Windows driver CD
- User manual
| SKU | Musical Fidelity MX DAC |
|---|---|
| Märke | Musical Fidelity |
