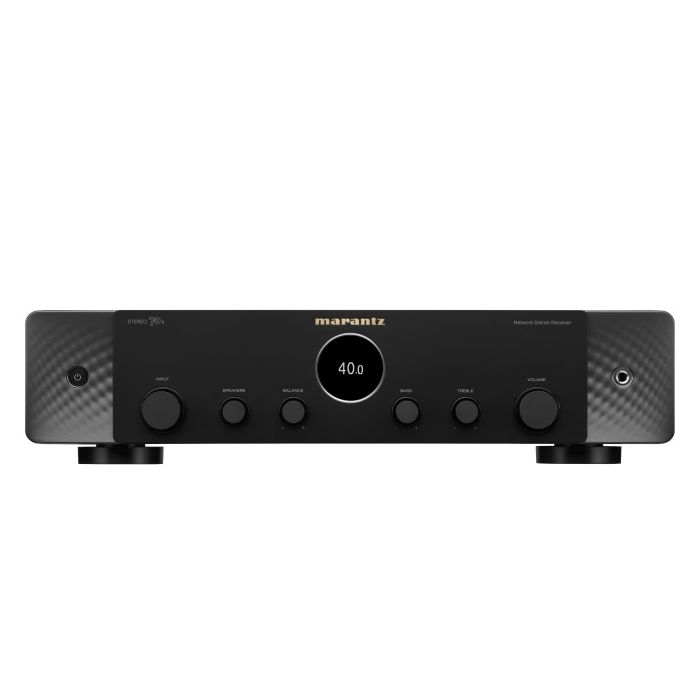

Marantz Stereo 70s

Home Cinema from Only Two Channels
STEREO 70s merges the flexibility and features found in our CINEMA Series AVRs into a slim and simple 2 channel receiver. 8K HDMI plus ARC facilitates connection of smart TVs, game consoles and streaming systems. On screen display uses your TV screen to assist with setup. Support for up to 2 subwoofers means plenty of deep bass even when using small bookshelf speakers.

High Resolution Audio
Carefully engineered with specially chosen components, STEREO 70s unveils the natural immersiveness and power of sound. Crystal clear digital decoding of up to 192 kHz 24-bit audio and DSD opens a new world of high resolution music with depth, breadth, and clarity not available with lossy files.

Slim and Elegant
Marantz design is timelessly elegant—an expression of the musical soundscapes the products create. Our philosophy of balance and symmetry is evident in our sound and our designs. Meticulously engineered in a compact chassis, STEREO 70s fits where standard equipment cannot.

HEOS® Built-in Multi-Room Streaming
HEOS® Built-in technology lets you enjoy your favorite music in any room of your home for a wireless, whole-home audio experience. Play the same song in every room or select a different song for each connected room—the choice is yours.

Power Amplifier

Number of Powered Channels
2
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
75 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
100 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)
150 W
Discrete Power Amplifier
Yes
Amplifier Topology
Class A/B

Inputs/Outputs

HDMI In / Out
6 / 1
Analog In / Fixed Level Out
3 in / out
Phono (MM) In
Yes
Digital In: Optical / Coaxial
1 / 1
Multi-Room Out: analog / digital
1 / 0
Multichannel Preamp Out
2.2
Subwoofer Out
2
Number of Speaker Terminals
4
Speaker A / B
Yes
USB Audio
USB A (Host)
AM/FM Tuner
Yes

Multichannel Surround Technologies

Max Number of Processing (Preamp) Channels
2,1

HDMI

Total HDMI Inputs / No. Support 8K
6 / 3
HDCP2.3 support
Yes
HDMI Outputs: Main / Zone
1 / 0
HDMI Upscaling
1080P/4K to 8K
Audio Return Channel
ARC
Video Dynamic Range
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming
Yes
Variable Refresh Rate / Quick Frame Transport
Yes / Yes
HDMI Pass-Through in Standby Mode
Yes

Performance Technologies

Pure Direct Mode
Yes
Gold Plated RCA Terminals
Yes
Hyper Dynamic Amplifier Modules (HDAM)
Yes

Music File Support

Lossy Formats
MP3 / WMA / AAC
Lossless formats
FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
DSD Audio
2.8 MHz / 5.6MHz
Gapless Playback
FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2
Yes
Network Audio Sharing
Yes

Streaming Services

HEOS Multi-room and Streaming
Yes
AirPlay Audio Streaming
AirPlay2
Internet Radio
TuneIn
Spotify*
Spotify Connect
*availability of services might vary per region
Other Streaming Services *
Amazon Music HD/Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
*availability of services might vary per region
Roon tested
Yes
Pandora
Yes
SiriusXM
Yes

Network Connectivity

Ethernet Ports
Yes
Bluetooth Re-transmit for Bluetooth headphones
Yes (with volume control)
Wi-Fi
Yes
Bluetooth
Yes

Smart Home Integration And Control

Voice Assistant Compatibility
Alexa / Google Voice Assistant / Apple HomePod / JoshAi
App for Smart Phones & Tablets (iOS & Android)
Marantz AVR App
HEOS Multi-Room Integrated
Yes
HEOS Link Compatibility: IR/ IP
Yes / Yes
Multi-Room zones
1
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
2 Ch / 2Ch / Yes / Yes
Zone Audio Output: Speaker / Preout
No/Yes
HDMI Diagnostics
Yes

Others

Front Display
port hole OLED
GUI Languages
English, Spanish, French
Setup Assistant
Yes
Smart Select on Remote
Yes
Firmware Update by Network / USB
Yes / Yes
ECO Mode
Yes
Auto Power off
Yes
Sleep Timer
Yes

General

System Remote Control
RC-052SR
Power Consumption in W
210
Standby Consumption in W
0.2
CEC Standby Consumption in W
0.5
Network Standby Consumption in W
Less than 2.0
Maximum Dimensions
【 w/o Antenna :(W x D x H) in inches 】:
【 17.4 x 14.7 x 4.3 】
What's in the box
Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
UPC code
747192140267
