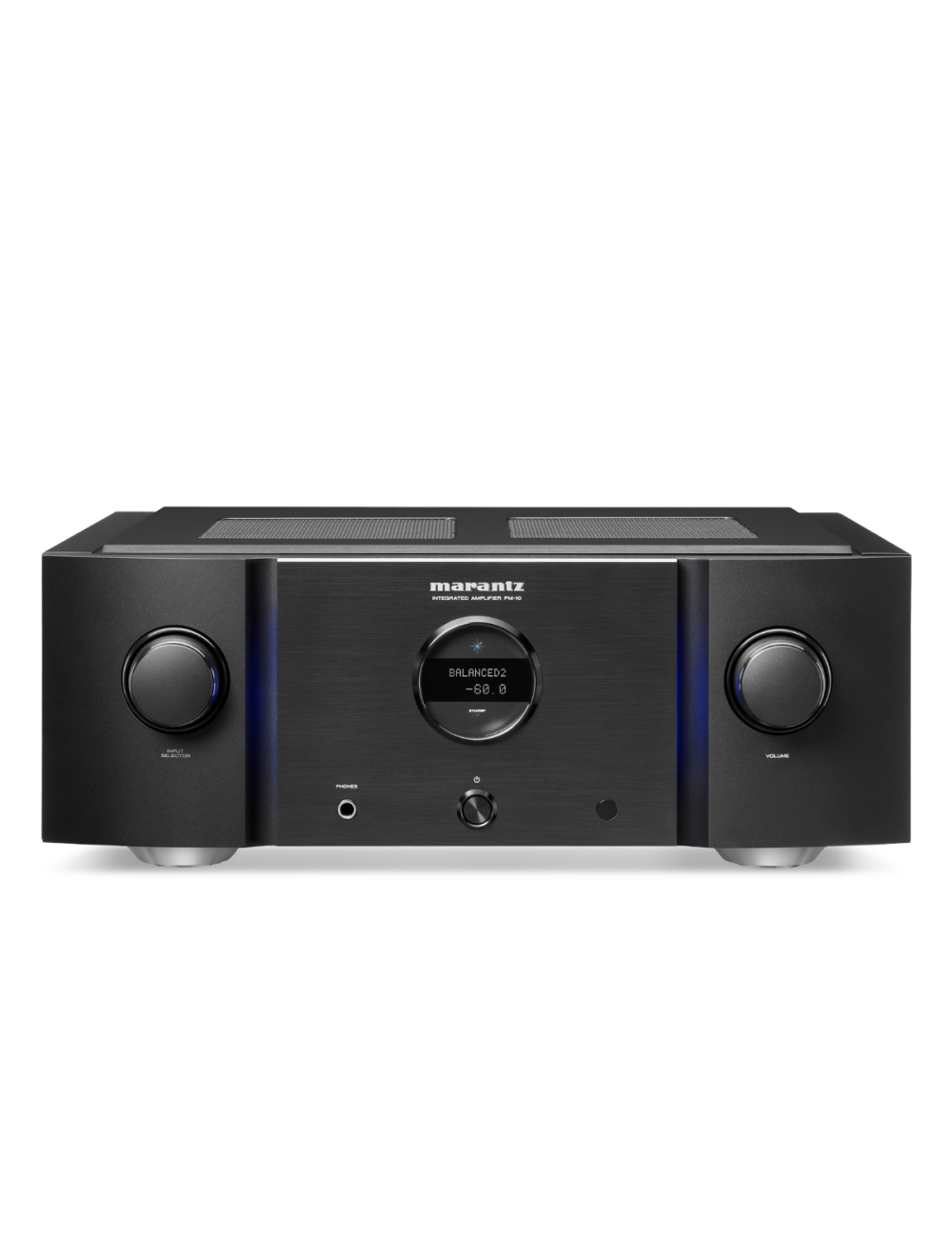

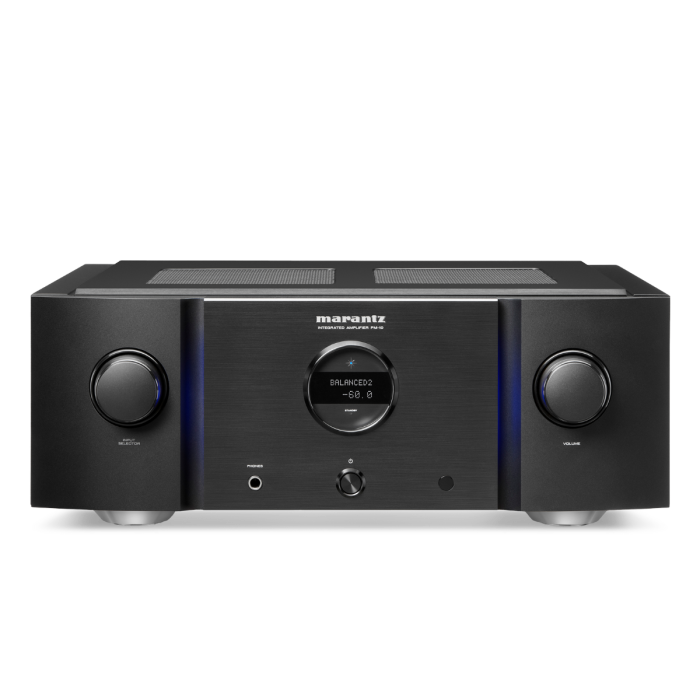

Marantz PM10

Features
Channels2
Current Feedback TopologyYes
Full balanced circuitry architectureYes
Double Mono Power Amp constructionYes
Phono EQ: Standard / Marantz Musical / Marantz Musical PremiumNo / No / Yes
Digital in: USB-B / optical / coaxial / USB-ANo / No / No / No
Sample Rate digital InNo
USB-A: DSD / WAV / FLAC / AIFF / ALACNo
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6No
USB-B PCM sample rateNo
DAC chipNo
Asynchronous mode rear USBNo
Bit-perfect transmissionNo
Ground isolator for DAC Mode operationNo
Bluetooth / aptX / NFCNo
Streaming audio from PCNo
Wi-Fi / Wired LANNo
Internet radioNo
AirPlay Audio StreamingNo
Windows Play toNo
vTuner / Spotify*No
DLNA certifiedNo
DSD-Audio network streamingNo
Lossy formats: MP3 / WMA / AACNo
Lossless formats: DSD / FLAC192/24 / ALAC96/24 / WAV192/24 / AIFF192/24No
Gapless PlaybackNo
Remote APP: iDevice / AndroidNo
Analog ModeNo
HDAM versionSA3
Power Transformer: Toroidal / ElSMPS
High Grade Audio ComponentsYes
Customised ComponentsYes
Symmetric PCB LayoutYes
Aluminium extrusion heat sinkYes (Separate)
Copper Plated ChassisYes
Tri Tone Control (Bass / Mid / Treble)No
Balance / Bass / Treble / LoudnessYes / No / No / No
Others
Marantz Musical Digital FilteringNo
Linear Drive Power SupplyYes (pre-amplifier stage)
Liniear volume controlYes
BI-AMP and Multichannel optionYes
Shottky diodesYes
Input buffer amp (all inputs / CD only)Yes / No
System block shielding: Copper / metal / noneYes / No / No
Double Layer Bottom PlateYes
Low Noise OELD displayNo
Low noise LCD displayYes
Source DirectNo
Power Amp directYes
5mm aluminium top plateYes
Inputs Outputs
Audio Inputs7
Digital in: USB-B / optical / coaxial / USB-ANo / No / No / No
Phono Input: MM / MCYes / Yes
Audio Outputs1
Balanced In / Out2 / No
Pre-out / Main-inNo / No
Power Amp Direct INYes
Gold Plated CinchYes / CD & Phono nickel-plated
Speaker A / BNo
Speaker TerminalsMarantz SPKT-100+
Number of terminals4
D-BusYes
Floating Control Bus (3.5 mm mono jack x 2)Yes
Headphone OutYes
Headphone Gain Control (low / mid / high)No
Specifications
Power Output (8 / 4 Ohm RMS)200 W / 400 W
Frequency response5 Hz - 50kHz
Total Harmonic Distortion0.01%
Damping Factor500
Input Sensitivity: MM2.6 mV / 47 kohm
Input Sensitivity: MC280
Input Sensitivity: High level400 mV / 20 kohm
Input Sensitivity: Balanced High level800 mV / 40 kohm
Signal to Noise Ratio: High level111 dB(2V input/Rated output)
Input Sensitivity: Power Amp Direct IN1,5 V / 20 kohm
Signal to Noise Ratio: Power Amp Direct IN113 dB
General
Available Colors: Gold / Silver / Black / Silver-GoldYes / No / Yes / No
Metal Front PanelYes
Power Consumption in W270
Standby Consumption in W0.3
Auto Power offYes
Detachable Power CableYes
Remote ControlRC004PMSA
System Remote FunctionYes
Maximum Dimensions (W x D x H) in mm440 x 453 x 168
Weight in kg21.5
