M6x 250.11 - Specifications

Output Main (C, LF, RF)

• Power: 3x 250W/4 ohms (Peak: 400W)
• THD+N: 0,003% at 100W power output
• Frequency Response: 20Hz - 20kHz for 0,5dB
• SNR: 105dB at 1kHz at 200W power output

Output Effect Channels

• Power: 8x 150W/4 ohms (Peak: 250W)
• THD+N: 0,003% at 100W power output
• Frequency Response: 20Hz - 20kHz for 0,5dB
• SNR: 103dB at 1kHz at 200W power output

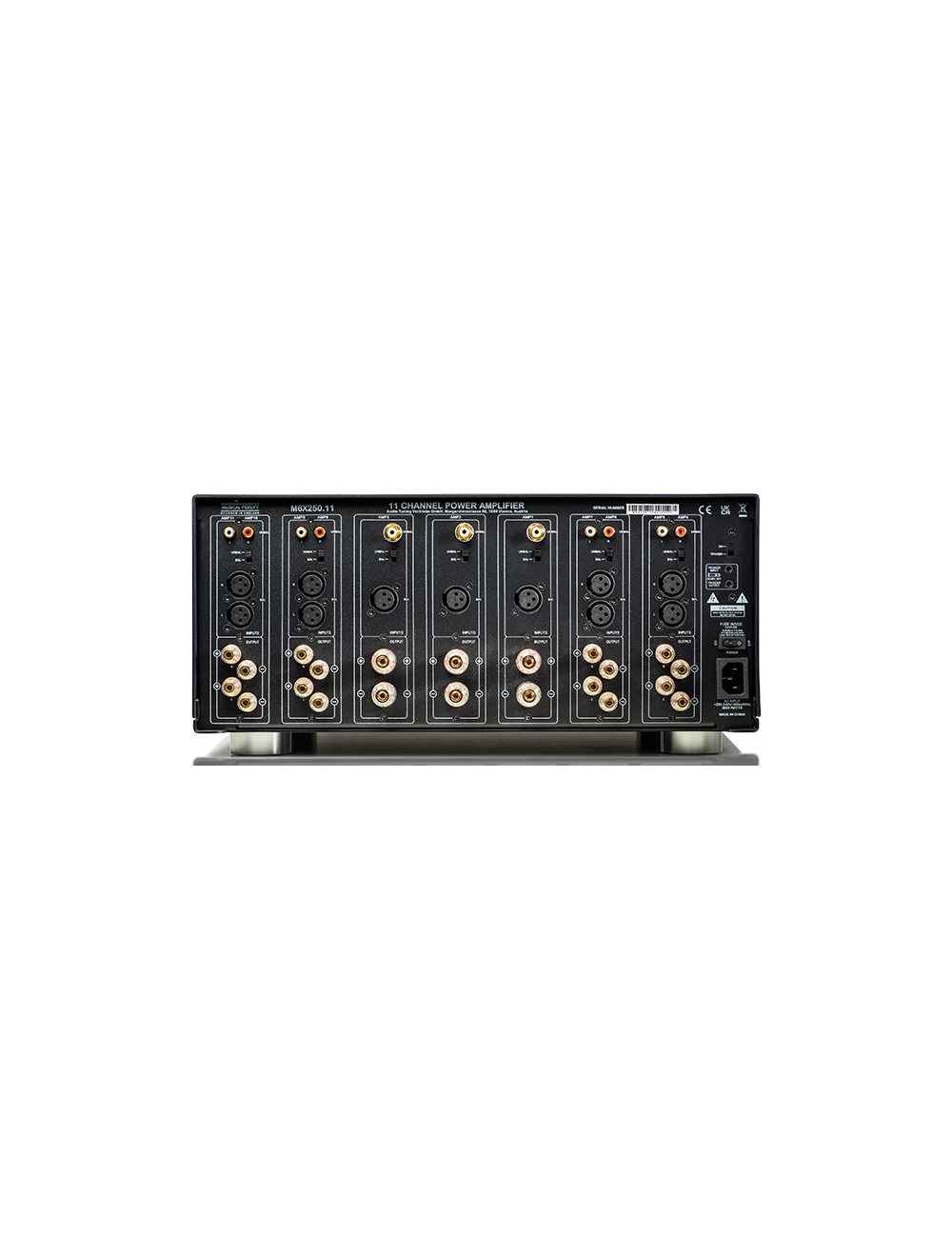

Connections

• 11x line level RCA input
• 11x line level balanced XLR input
• 11x pair speaker terminals
• 1x Trigger input & output

Input Sensitivity

• 700mV at RCA input, 1,4V at XLR input

General Information

• Dimensions (WxHxD): 435 x 205 x 430mm
• Main voltages: 230V/115V Internally set or 100V optional AC 50/60Hz
• Max. Consumption: 3000W, <0.5W in standby
• Weight: 35,5kg (ca. 39kg incl. shipping carton)
