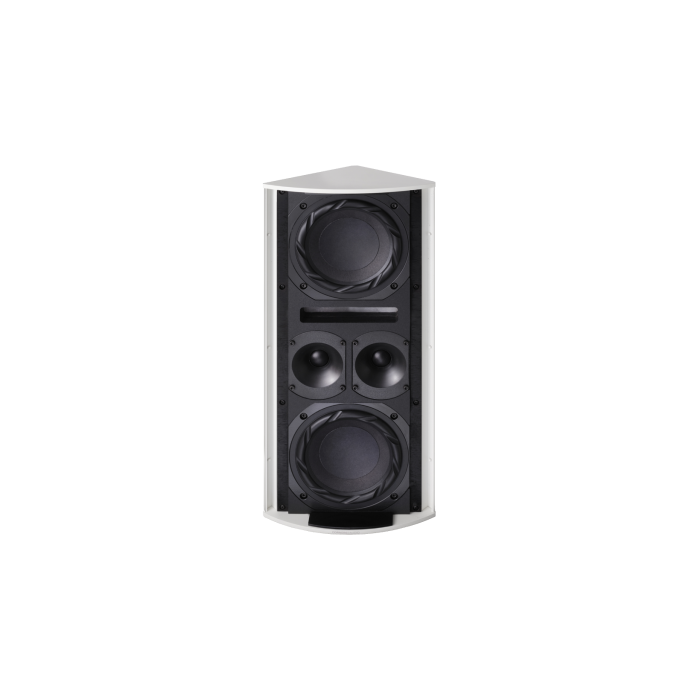

Cornered Audio lS2 LINE SOURCE

Compact Line Source

LS2 is a compact speaker with extreme output relative to its size ratio. It is a dedicated top-box designed for very high output in large rooms, whether indoor or semi-outdoor.

Two, three, or four LS2 speakers can be mounted together vertically to form a compact line source with 90×50 degree coverage and the ability to deliver up to 108 dB SPL at 30 meters.

There is no internal passive crossover, and the LS2 is designed to be driven by Cornered DSP amplifiers. It features a ported design but requires a subwoofer below 120 Hz.

Connections are recessed into the rear side wall, and custom brackets are available for both horizontal and vertical wall mounting as well as suspended cluster installations.

LS2 offers remarkable dynamic range and combines high output with excellent clarity.

Features

• 2×6 1/2" woofers with neo magnets
• 2×1" horn-loaded dome tweeters
• Aluminium cabinet
• Designed for high SPL applications
• Available in black or white

Specifications

• Power handling, IEC268: 500 watt
• Power handling, peak: 2000 watt
• Sensitivity, 2.83V/1m: 96 dB
• Maximum SPL, long term: 123 dB
• Maximum SPL, peak: 129 dB
• Frequency response: 120–20,000 Hz
• Nominal impedance: 16 ohm
• Weight: 7.6 kg / 16.8 lbs
• Measurements: 502 × 232 × 167 mm / 19.8 × 9.1 × 6.6 in
