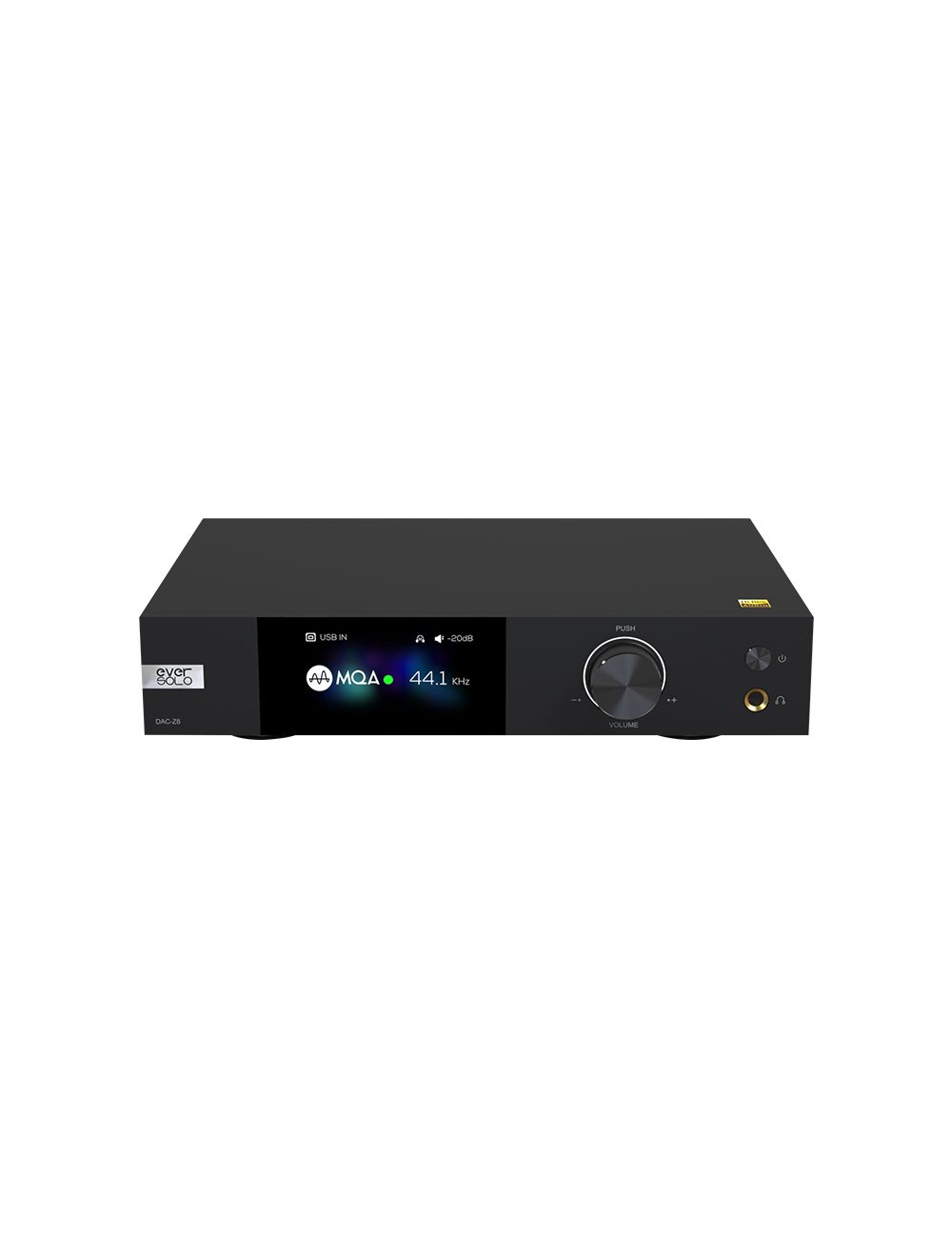

EverSolo DAC-Z8

ES9038Pro DAC

The heart of the DAC-Z8, its digital-to-analog conversion stage, is equipped with an excellent ESS ES9038Pro chip. This ensures low distortion and noise for a truly compelling high fidelity music experience. In addition, the DAC-Z8's audio circuitry is specifically calibrated to deliver its full potential.

XMOS XU316 USB interface

The USB input of the DAC-Z8 is combined with an XMOS XU316 interface, which can process audio data quickly and efficiently for optimal signal transmission. This chip also supports high-resolution streams up to PCM 32bit 768kHz and DSD512 Native, as well as MQA files.

MQA decoder

The EverSolo DAC-Z8 supports decoding of MQA (Master Quality Authenticated) files from its USB, Toslink optical and coaxial inputs. This format makes it possible to enjoy a sound quality as close as possible to the original studio recording.

High precision clocks

The DAC-Z8 is equipped with two very high precision clocks at frequencies of 45.1584MHz and 49.152MHz. These allow you to enjoy a high-quality decoding, ensuring a very low jitter for a detailed and accurate sound.

Optimized I/V circuit

The I/V circuit of the DAC-Z8 consists of 8 OPA1612 OPAs. It uses multi-channel signal shunt compensation technology, with the 8 OPAs corresponding to the 8 output channels of the I/V conversion stage, finally providing a two-channel parallel output. In addition to the high precision resistors, this circuit helps in lossless amplification of the XLR, RCA and headphone outputs, improving channel separation, dynamic range and audio integrity.

Amplifier circuit & Balanced preamplifier output

The DAC-Z8's analog audio circuitry is fully balanced. The XLR, RCA and headphone outputs are all processed by a balanced differential amplifier circuit for low noise and improved channel separation. The high-quality preamplifier circuit provides precise and efficient volume control.

Bluetooth 5.0

In addition to a complete connection, the DAC-Z8 has a Bluetooth 5.0 Qualcomm QCC5125 receiver, which allows you to broadcast your music remotely, from a smartphone or tablet for example, while supporting codecs for high definition transmission aptX HD and LDAC for a high quality restitution in wireless.

Digital filters

The EverSolo DAC-Z8 offers no less than 7 PCM filters and 4 DSD filters. These allow you to customize the sound reproduction of the device according to your listening preferences and your audio system.

Power supply stage

A low-noise power supply stage and capacitor filters have been designed specifically for the DAC-Z8. They provide a clean, interference-free electrical signal to all of the unit's audio circuits for rich, accurate sound reproduction.

A powerful headphone amplifier

The DAC-Z8's headphone amplifier also performs very well and can easily provide comfortable power to accompany headphones with impedances from 16 to 300Ω. This one also has a two-stage gain control to accommodate both demanding headphones and more sensitive headphones.

Control through app

The DAC-Z8 can be controlled via the free EverSolo Control app available on Android and iOS. The latter provides access to the vast majority of parameters available on the device.

Color display and intuitive interface

The front panel of the DAC-Z8 features a beautiful 3” color LCD display. This displays an ergonomic and intuitive interface that allows you to access all the functions and parameters of the DAC.

Multi-function button

The DAC's multifunction knob can be used to control the volume level, navigate menus, select a source or output, switch filters, change the display and more. It provides full control of the device in a convenient way.

Aluminum

The EverSolo DAC-Z8 is clad in a beautiful, sturdy aluminum chassis that has been precision machined by CNC (numerical control). It offers a modern and sober design, allowing it to be easily integrated into any audio system.

Specifikationer:

Produkttyp DAC
Ingångar Bluetooth 5.0 1* USB-B 1* USB-C 1* Optisk Toslink 1* Koaxial Utgångar 1* Balanserad stereo XLR 1* Enkelriktad stereo RCA 1* Jack 6,35 mm hörlursutgång
DAC-chip ES9038Pro
USB-gränssnitt XMOS XU316
OPA 10* OPA1612
Bluetooth-mottagare Qualcomm QCC5125
Samplingsfrekvenser som stöds USB: PCM upp till 32bit 768 kHz, Native DSD upp till DSD512, MQA
Optisk / koaxial : PCM upp till 24bit 192kHz, DSD DoP upp till DSD64, MQA
LCD-skärm 3”
Rekommenderad impedans för hörlurar 16-300Ω
Förbrukning 9W
Mått (L*P*H) 270*187*50mm
Färg Svart
Paket 1* EverSolo DAC-Z8 1* Fjärrkontroll 1* Strömkabel 1* USB-kabel
