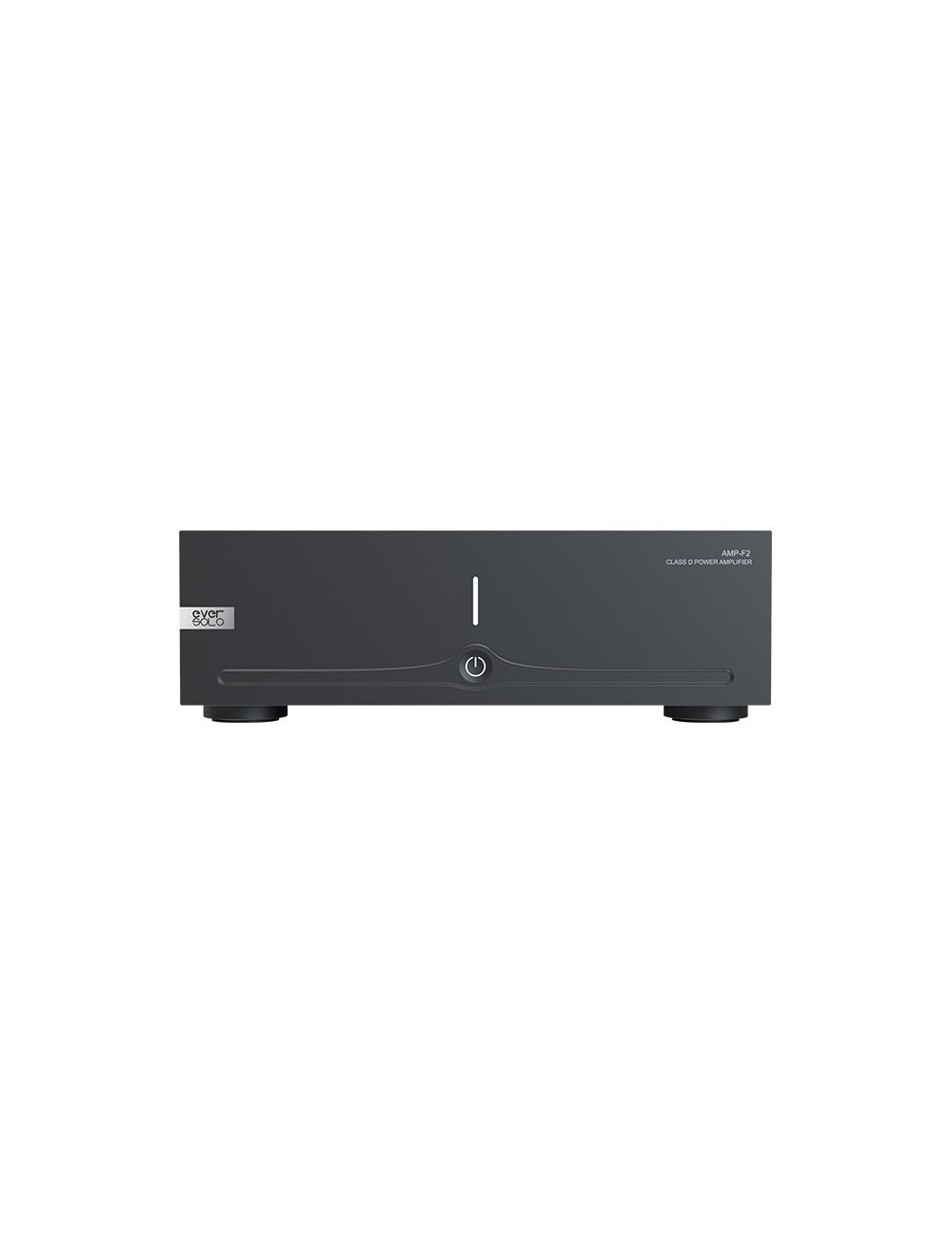

EverSolo AMP-F2

EverSolo's ongoing quest for better sound quality, a brand new Class D, power amplifier with proprietary power and amplifier modules. It is a unique 2-channel amplifier that can be bridged for 1- or 2-channel operation with simple rear panel switches. Drive your audiophile 2-channel music system or bridge 2 channels and use 2x AMP-F2 for high power requirements. Flexibility, serious power and great value: EverSolo AMP-F2.

The all-new SAPS switch-mode power supply provides the audio circuit with a pure electrical signal, ensuring very low noise and distortion levels. Bridgeable, the AMP-F2 is a versatile model that can be used in stereo or mono.

Developed in collaboration with the Starke Sound team, the EverSolo AMP-F2 is a Class D amplifier based on the integration of the latter's innovative NS600 module. As a result, it offers a high energy reserve, good dynamics and a very precise sound. The brand new SAPS switch-mode power supply provides the audio circuit with a pure electrical signal, ensuring very low noise and distortion levels. Bridgeable, the AMP-F2 is a versatile model that can be used in stereo or mono.

A generous power reserve

Based on a Class D NS600 amplifier module from Starke Sound, the EverSolo AMP-F2 can deliver significant power, up to 2x250W RMS at 4 Ohms (1% THD).When the amplifier is used bridged (BTL), that is, in mono, its power rises to 450W RMS at 2 Ohms (1% THD).This ability to support very low load impedances ensures sufficient power even in configurations using particularly demanding speakers.
Incredibly accurate sound reproduction
EverSolo AMP-F2's NS600 module utilizes PurePath™ Ultra-HD technology and an advanced feedback design, which includes an error correction function.This technology achieves an extremely low level of distortion across the entire frequency range for flawless audio accuracy.

Trigger (input and output)

Equipped with a 5-12V trigger input and output in 3.5mm jack format, the EverSolo AMP-F2 allows you to create an automatic on/off chain between your various trigger-equipped devices. This makes for a seamless user experience, as your entire audio system can be turned on and off with a single touch.

A generously sized power supply

By utilizing a 600W power supply with high efficiency, low ripple and EMI, the EverSolo AMP-F2 is able to deliver a stable and powerful output, improving the overall dynamics of the system.

Aluminum chassis and shielding

The EverSolo AMP-F2 amplifier features a modern, robust aluminum chassis. Aesthetically pleasing, it also acts as a shield, limiting the impact of interference on the AMP-F2's circuitry.

Low power consumption

The EverSolo AMP-F2 benefits from very low standby power consumption, measured at less than 0.5 W. Switched on but without signal, this consumption rises to just 14W.

This means that the amplifier meets EU ErP standards.

A perfectly designed ecosystem

The EverSolo AMP-F2 amplifier is perfectly designed and optimized to accompany the brand's other products. It is the perfect companion.

Specifications:

Product type Amplifier
Amplification type Class D
Output power 2x250W RMS @ 4Ω (1% THD)
2x145W @ 8Ω (1% THD)
Output power (BTL) 280W RMS @ 4Ω (1% THD)
450W RMS @ 2Ω (1% THD)
Inputs Single-ended RCA
Balanced XLR
Outputs Speaker terminals (beryllium copper)
Gain 21.5dB
Frequency response 10Hz - 20kHz (-1dB)
Max. output current per channel 16.5A
33A (BTL)
THD 0.003% @ 10W, 1kHz
SNR > 110dBA @ 4Ω, 260W
Input impedance RCA : 11kΩ
XLR : 22kΩ
Input sensitivity 2.7V
Output impedance 0.136Ω (5Hz to 100kHz)
Minimum load impedance 0.8Ω
Damping factor 100
Balanced circuit
Trigger 5-12V Input and output
GENERAL
Supply voltage 115VAC - 230VAC (switchable)
Heat 65BTU / hour
Consumption Standby: ≤ 0.5W
Idle: ≤ 14W
Max: 900W
Dimensions 270 x 228 x 80mm
Housing material Aluminum
Weight 3.65kg
