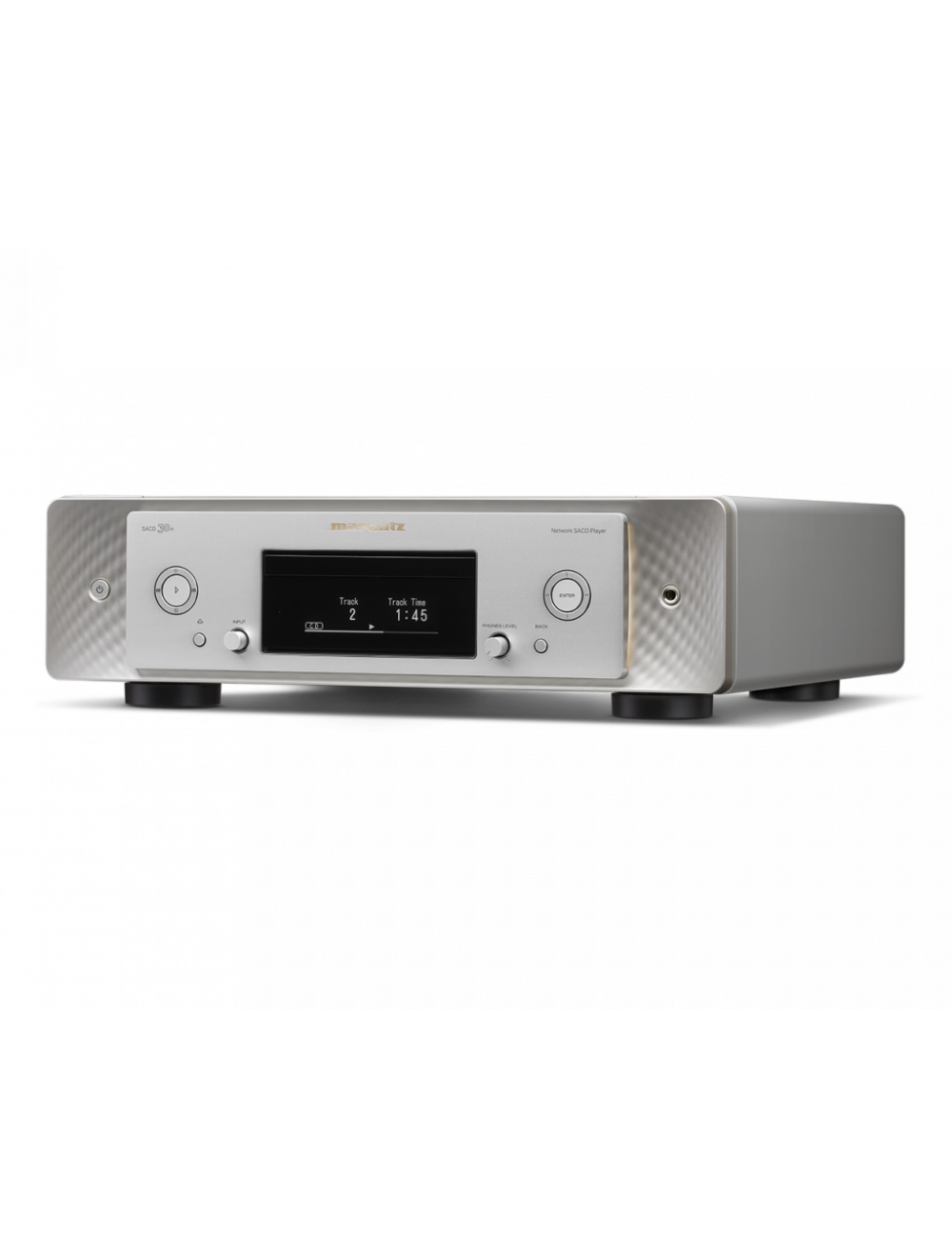

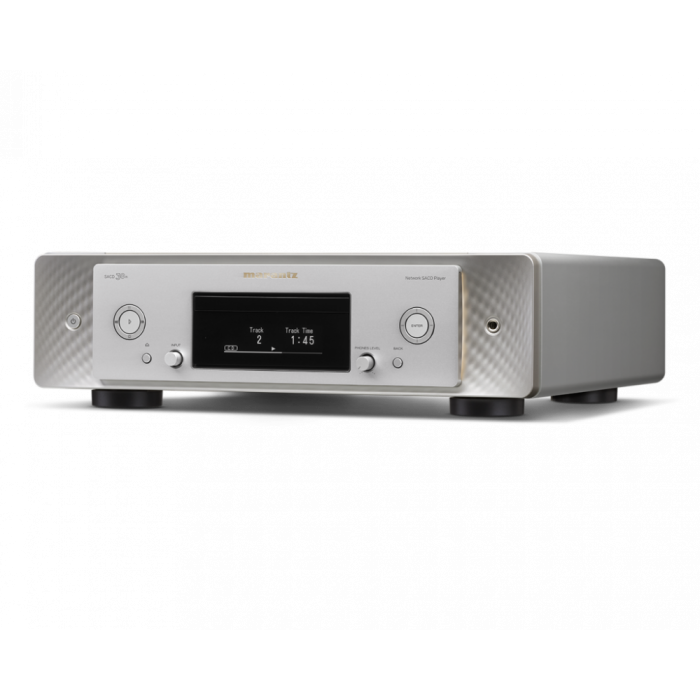

Marantz SACD 30N

Onboard Technologies

Engine	HEOS
Computer music file streaming	WMA / MP3 / AAC WAV192/24 / FLAC 192/24 ALAC 192/24 DSD 2.8/5.6
Windows 7/8 Compatibility	-
Gapless Playback Music ServerUSB A	yes (FLAC, WAV, ALAC, DSD)
Internet radio	yes (TuneIn)
AirPlay 2	yes (2)
GoogleCast	-
Album art browsing	-
Jpeg Picture Playback	- (No Video)
Cloud Music Service	Spotify Connect(except CN), Amazon Prime(except CN), Deezer Premium+(EU, NA), iHeart Radio(NA), Napster(EU, NA), Pandora(NA), SiriusXM(NA), Sound Cloud(All), Tidal(EU,NA), Mood Mix(EU, NA), AWA(JP), QQ music(CN)
Wi-Fi	yes 2.4GHz(11b/g/n), 5GHz(11a/n)
WPS (Wi-Fi Protected Setup)	PBC only
Wi-Fi Sharing	-
WMM	yes
Wi-Fi Direct	-
OFF mode	yes
DLNA
Version	(compatibilty)
DMP (Digital Media Player)	(compatibilty)
DMR Digital Media Renderer	(compatibilty)
Bluetooth
Bluetooth	yes (SBC.AAC)
TX	-
OFF mode	yes

USB-B Input
USB-DAC	1 (PCM:Up to 384kHz/32bit, DSD:Up to 11.2MHz)
Asynchronous mode	yes
Isolator	yes (and digital inputs)
USB-A Input
USB Mass Storage Audio Music File	(at Rear) WMA / MP3 / AAC / WAV192/24 / FLAC 192/24 / ALAC 96/24 / DSD 2.8/5.6
iPod Digital Connection	- (buttery charge only)
Support format	FAT 16/32, NTFS
Additional Rear USB-A	-
Headphone Amp	HDAM-SA2 Full discrete headphone amp circuit, Gain setting (Low/Mid/High), Auto detected plug on/off and turn on/off HP AMP
USB-A Output	-

Audio Circuit	HDAM
D/A Converter	MMM Conversion
Power Transformer	Troidal
Dither	Not selectable
Noise Shaper	Not selectable
Digital Filter	MMM-Stream (Filter 1, 2)
Digital Processing	-
Lock Range mode	-
Jitter Reducer	yes (FLAC, WAV, ALAC, DSD)
Dual Clock (for 44.1/48kHz)	yes
(DE)PURE DIRECT / (MZ) AUDIO EX	-
Headphone Amp	HDAM-SA2 Full discrete headphone amp circuit, Gain setting (Low/Mid/High), Auto detected plug on/off and turn on/off HP AMP

Audio Digital IN
COAX IN	1
OPTICAL IN	2
HDMI ARC IN	-
Audio Digital Out
COAX OUT	1 (on/off switchable)
OPTICAL OUT	1 (on/off switchable)
Analog Audio out
RCA OUT	1 L/R independent, gold plated high grade brass terminals
XLR OUT	-
USB
USB-A In	Rear x 1
USB-A out	-
USB-B in	Rear x１
Ethernet	yes
Wi-Fi antenna	yes (removable rod antenna)
Headphone	yes (Φ6.3 x1)

Remote APP	HEOS app
Display	OLED 3-line display (Dimmer 4-levels)
Language	(EU9:EN/DE/FR/IT/NL/ES/SE/PL/RU, JP:JP/EN, NA:EN/FR/ES, CN:CN/EN)

Remote Controller	yes (New system remote controller to control SACD 30 and MODEL 30)
RS232C	yes
Flasher Input	yes (x1)
Remote In/Out	RC5 IN/OUT
App Control via Network Player	yes
IP Control	yes
Wake on LAN (Network Power Control)	yes
Certified Control 4	yes
DPMS Service	yes
Firmware Update	yes via DPMS(Network)
H/P Amp Gain Setting	yes (Low/Mid/High)
H/P Amp Damping Factor Setting	-

Auto Power off	yes
Auto Function	-
Last Function Memory	yes
Sleep Timer	-
Power Consumption	48W
Power Consumption (Normal Standby)	low power consumption in standby mode
Power Consumption (Network Control-ON mode)	Network off Mode 5 W
W x H x D (mm)	443 x 130 x 424
Weight (kg)	13.7kg
AC Inlet	yes (IEC)
Owner's Manual	Web Manual Paper (JP)
Quick Start Guide	Paper (EU:EN, DE, FR, IT, NL, ES, SE, PL, RU, JP:JP, NA:EN, FR, ES, CN:CN )
Variable Audio Output	yes (dedicated) (Digitl vol: JRC)
Chassis Material	SECC
Bottom Layer	single 3.0mm thick
