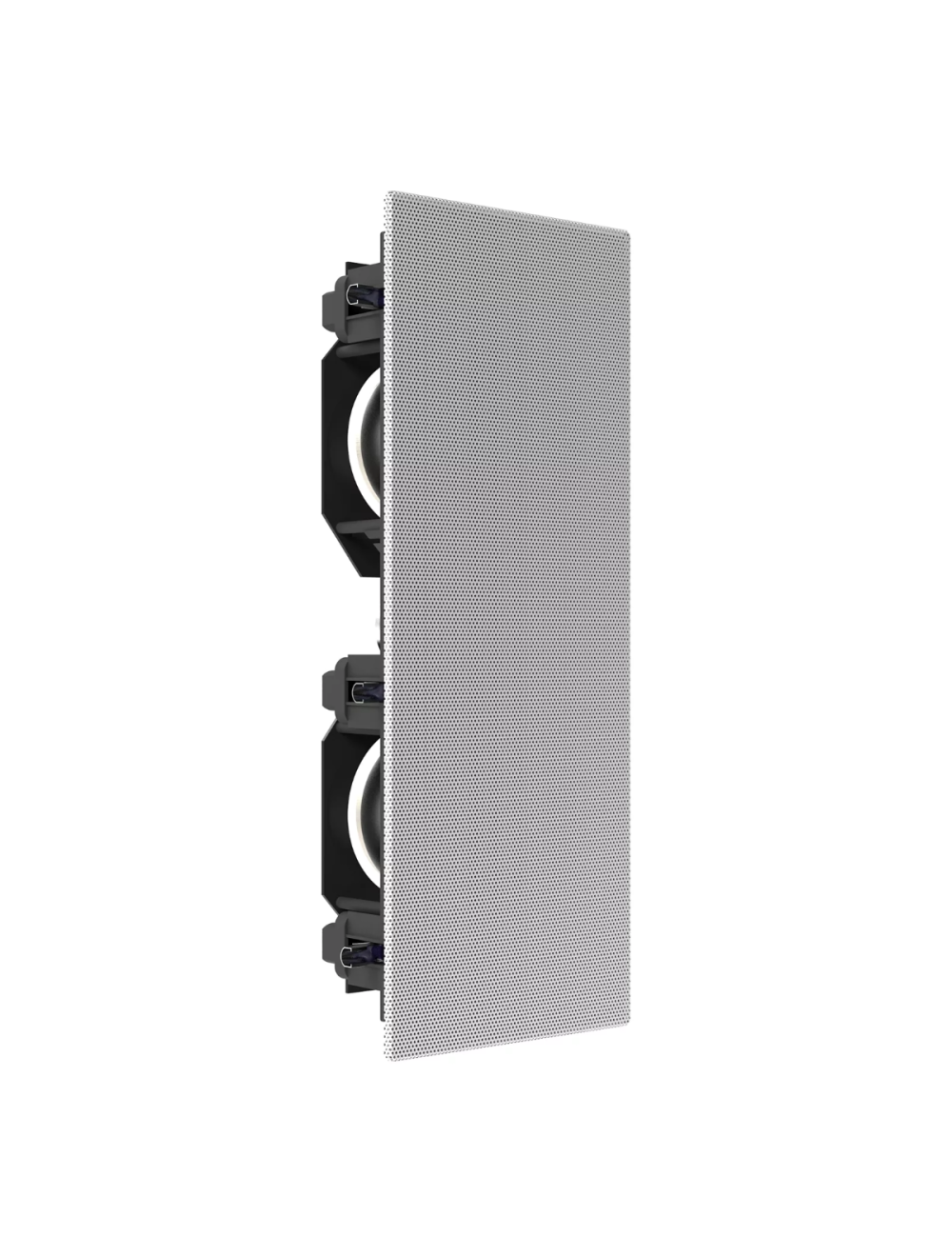

JBL SCL-7

2-way in-wall loudspeaker system designed for off-axis listening as LCR and surround channels
1-inch 2410H-2 compression driver tweeter mated to a JBL patented High-Definition Imaging (HDI™) horn precision molded baffle assembly
Two 5.25-inch (130mm) Advanced Aluminum Matrix cone cast frame woofers
Can be mounted vertically or horizontally
Patented Cat Claw installation mechanism
Gold plated, spring-loaded binding posts
Includes paintable zero-bezel, magnetically attached grilles

Type	2-Way In-wall loudspeaker
Low Frequency Driver	Two 5.25” (130 mm) advanced Aluminum Matrix cone cast-frame woofers (JW13Al-4)
High Frequency Driver	1" (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver
Recommended Amplifier Power	25 – 150W RMS
Impedance	4 Ohm
Loudspeaker Sensitivity	88 dB/2.83V/1m (2pi anechoic)
Frequency Response	55Hz - 30kHz (-6 dB on-axis), 2pi anechoic
Crossover Frequency	2.0 kHz
High Frequency Coverage Angle (-6 dB)	60° Vertical, 90° Horizontal (Left 30°, Right 60°, from center line), from 2 kHz to 15 kHz
Enclosure Type	Open back
Controls	Boundary Proximity Control
Grille Dimensions	7.32” (186 mm) x 19.15” (486 mm)
Product Dimensions (with grille)	7.32” (186 mm) x 19.15” (486 mm) x 3.88” (99 mm)
Cut-out Dimensions	6.18” (157 mm) x 18.03” (458 mm)

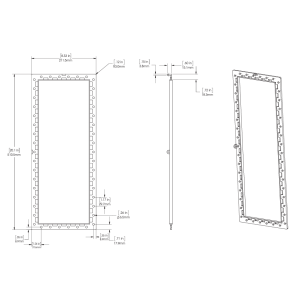

Rough-in Bracket	WB52
Mounting Depth	3.64” (93 mm)
Input Type	Gold-plated spring-loaded binding posts
Product Weight	12.6 lbs (5.72 kg)
Shipping Weight	14.6 lbs (6.62 kg)
Shipping Units of Measure	Each
Warranty	5 Years
