Revel PerformaBe C426Be

Centerhögtalaren i Revel:s fantastiska PerformaBe-serie, utrustad med en grymt kapabel beryllium-diskant. Passar även alldeles utmärkt att användas tillsammans med Revel:s Ultima2-serie.
Så lågt som 59 990,00 kr
Tillgänglighet: I lager
SKU
Revel PerformaBe C426Be

C426Be

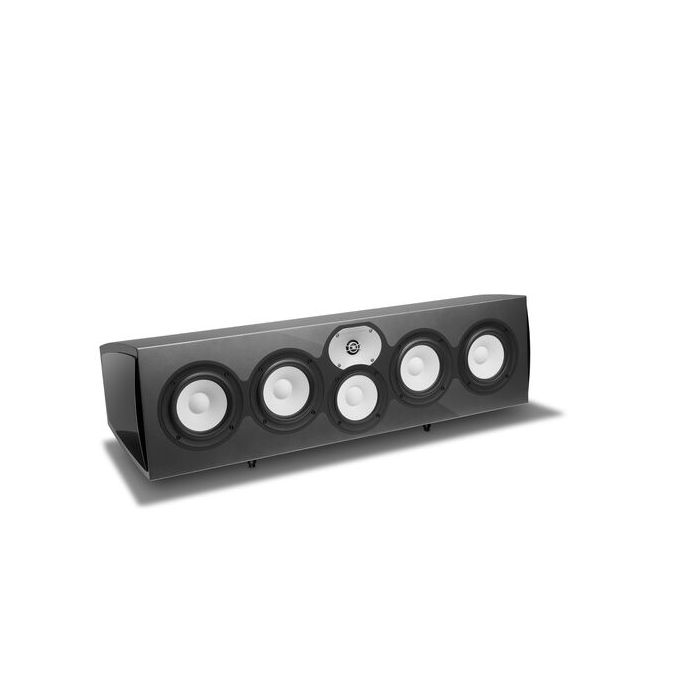

The Revel C426Be joins our award-winning PerformaBe series as a high-performance center channel loudspeaker for use in a multichannel home theater environment. As part of the PerformaBe loudspeaker line, the C426Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful tweeter and 5th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminum or titanium tweeters.

Beryllium - Element 4 on the Periodic Table - is a rare earth metal that is renowned for its remarkable physical properties that make it the ideal material for a high-frequency transducer. Compared to aluminum and titanium tweeter diaphragms, Beryllium offers 4.5 times the stiffness and three times more damping, and does so at only half of the weight. Beryllium tweeters are the centerpiece of the Revel PerformaBe loudspeaker series.

The 5.25-inch (130mm) midrange and quadruple 6.5-inch (165mm) aluminum cone woofers utilize Deep Ceramic Composite (DCC) cones for improved performance. DCC is a plasma electrolytic oxidation process that uses a plasma discharge to create a coarse ceramic coating on both sides of the aluminum core. The deep ceramic layers sandwiching the aluminum core provide constrained layer damping that push cone breakup modes outside of the passband allowing the driver to maintain ideal pistonic motion throughout its range. DCC cones combine with optimized motor magnetics to deliver improved mid- and low-frequency performance.

PerformaBe crossover networks utilize all film capacitors and air core inductors in the midrange and tweeter circuits. These premium components allow Revel's world-class engineers to extract nuances and details from music that would otherwise be lost. Combined with traditional Revel high-order crossover slopes and proprietary Acoustic Lens waveguide geometry, transducer integration is seamless.

C426Be side panels are painted in stylish metallic black. The loudspeakers are available in a choice of four high-gloss finishes for seamless integration into any décor: Black, White, Walnut, and Metallic Silver.

The Beauty of Beryllium


Beryllium - Element 4 on the Periodic Table - is a rare earth metal that is renowned for its remarkable physical properties - properties that just so happen to make it the ideal material for a high-frequency transducer. It's lightweight, incredibly stiff, inherently well damped - basically everything you need for the ideal tweeter diaphragm in a loudspeaker. Compared to other metals used in tweeter diaphragms like aluminum and titanium, beryllium offers 4.5 times the stiffness and 3 times more damping, and does so at only half of the weight. Diamond vapor deposit diaphragms offer similar characteristics for stiffness and damping, but they do so with a weight penalty that limits performance in comparison to beryllium.

PerformaBe low frequency and midrange transducers feature newly developed Deep Ceramic Composite (DCC) cone technology. DCC creates a much stiffer and better damped cone than untreated aluminum, reducing cone resonance and promoting ideal pistonic motion. The result is unparalleled midrange purity and detail retrieval.


Revel PerformaBe's precision high order crossover networks feature carefully selected components to dramatically reduce distortion and dynamic compression for pristine sound over a wide dynamic range. These networks optimize the speakers' timbre accuracy, enhancing the listener's enjoyment anywhere in the room - even off axis!

Premium details abound in the PerformaBe Series, from the ceramic-coated, cast-aluminum Acoustic Lens waveguide with laser-etched identification, to the magnetically attached grilles. Performa3's incredibly well-built cabinets have been updated as well. The curved top panels are painted in an elegant metallic black finish with raised electroform Performa badging. And each model is available in a choice of four high-gloss finishes: Black, White, Walnut, and Metallic Silver.


C426Be Highlights

  • 1-inch Beryllium Dome Tweeter
  • 5th-generation Acoustic Lens Waveguide
  • Deep Ceramic Composite (DCC) Cone Midrange and Woofers
  • High-order Crossovers with Film Capacitors and Air Core Inductors
  • Magnetically Attached Grilles
  • 4 Premium high-gloss finishes available

Audio Specifications

Type 3-way quadruple 6.5" Center channel loudspeaker
Low-frequency transducer Four 6.5" (165mm) Deep Ceramic Composite (DCC) aluminum cones with cast frames
Midrange transducer 5-1/4" (130mm) Deep Ceramic Composite (DCC) aluminum cone, with cast frame
High-frequency transducer 1" (25mm) Beryllium dome with acoustic lens wave guide
Recommended amplifier power range 50-300 Watts RMS
Frequency response 46Hz-40kHz (-6 dB)
Low-frequency extension 37 Hz (-10 dB) 46 Hz (-6 dB) 52 Hz (-3 dB)
Nominal impedance 8 ohms
Sensitivity (2.83V/1m) 90 dB
Crossover frequencies 210 Hz; 2.1 kHz
Enclosure type Bass-reflex via 2 rear-mounted ports
Inputs Dual gold-plated binding posts with shorting straps
Available high-gloss finishes Black, White, Metallic Silver, and Walnut
Dimensions – with grille (H x W x D) 10.4" x 38.6 " x 14" (263mm x 979.7mm x 358mm)
Product Weight 61lb (27.7kg)
