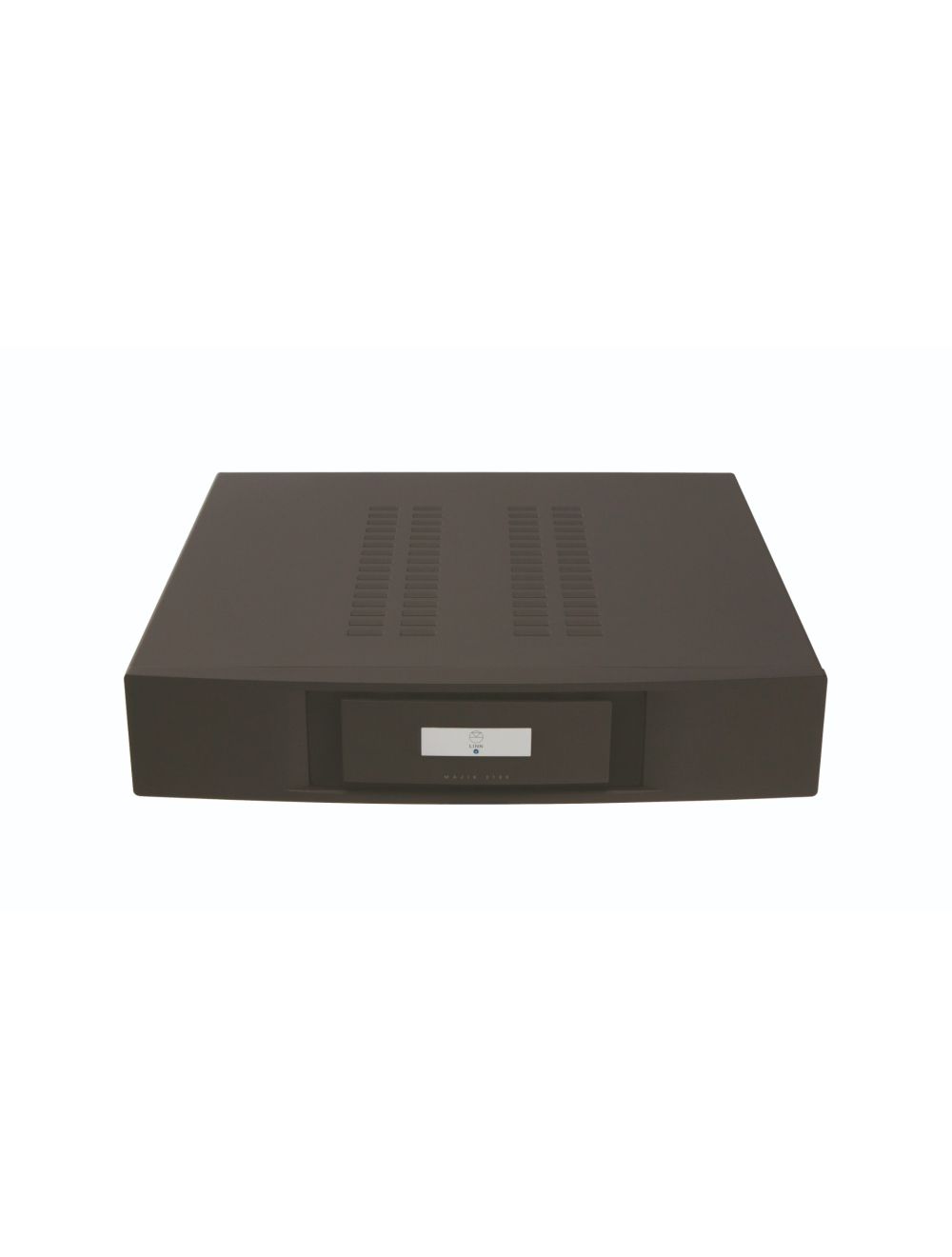

Linn majik 5100

Cool-running, reliable and highly efficient, Majik amplifiers are ideal for use in stereo or multi-channel systems, featuring the 100 W version of our Linn patented Chakra technology and groundbreaking Dynamik Switch Mode Power Supply.

As our most flexible yet affordable separates option, Majik power amplifiers are available in five models (two, three, four, five, or six channels) letting you add all the amplification you need without the extra boxes. Create the perfect surround sound set-up or upgrade to a fully Aktiv Majik system and experience incredible control and precision.

Aktiv Upgrade

Upgrading your Linn speakers to Aktiv is a great way to improve performance and also provides a significant step on the way to the ultimate upgrade of Exakt.

Aktiv crossover cards fit inside Linn amplifiers and split the signal before it's amplified, feeding a dedicated channel of amplification for each drive unit and bypassing the passive crossover inside your speakers.

This significantly reduces the noise and distortion associated with passive crossovers and also unlocks further upgrade possibilities - with your speakers Aktiv, you have all the amps needed to go to the next level using an Exaktbox.

Learn more

Chakra Technology

Patented amp technology combines the speed and precision of monolithic chip with the robustness and smoothness of bi-polar transistors.

Chakra constantly adapts by using a monolithic at low currents and bi-polar transistors at higher levels. It's a unique approach to transition between these technologies, guaranteeing precisely-controlled clean, silent power at all listening levels.

Powered by Linn Dynamik

We developed our own switch-mode power supply to generate stable, low noise power rails in a compact, cool-running package: critical to the performance of an amp.

Dynamik is the latest evolution, with higher mains noise isolation, more power and faster response; clearly outperforming bulky and noisy conventional power supplies.

Sound Sense

All Linn power amps are designed to be efficient even when not in use. Auto signal-sensing detects the presence of an audio signal and minimises power consumption by reverting to sleep mode when inactive, while fault detection and protection mechanisms help safeguard your system against short circuit or excessive load damage.

Technical Specifications

	Majik 2100	Majik 3100	Majik 4100	Majik 5100	Majik 6100
	2-channel power amp	3-channel power amp	4-channel power amp	5-channel power amp	6-channel power amp
Number of Channels	Two	Three	Four	Five	Six
Max Output	100 W into 4 Ω per channel	100 W into 4 Ω per channel	100 W into 4 Ω per channel	100 W into 4 Ω per channel	100 W into 4 Ω per channel
	56 W into 8 Ω per channel	56 W into 8 Ω per channel	56 W into 8 Ω per channel	56 W into 8 Ω per channel	56 W into 8 Ω per channel
Max Input	300 W	300 W	300 W	300 W	300 W
Amp Technology	Linn Chakra	Linn Chakra	Linn Chakra	Linn Chakra	Linn Chakra
Power Supply	Linn Dynamik Switch Mode	Linn Dynamik Switch Mode	Linn Dynamik Switch Mode	Linn Dynamik Switch Mode	Linn Dynamik Switch Mode
Finishes	Silver or Black	Silver or Black	Silver or Black	Silver or Black	Silver or Black

Inputs	Majik 2100	Majik 3100	Majik 4100	Majik 5100	Majik 6100
RCA Phono	x2	x3	x4	x5	x6

Line Outputs	Majik 2100	Majik 3100	Majik 4100	Majik 5100	Majik 6100
RCA Phono	x2	x3	x4	x5	x6

Speaker Outputs	Majik 2100	Majik 3100	Majik 4100	Majik 5100	Majik 6100
Banana / Binding Post	x4	x6	x8	x10	x12

Dimensions	Majik 2100	Majik 3100	Majik 4100	Majik 5100	Majik 6100
Width	381 mm	381 mm	381 mm	381 mm	381 mm
Height	90 mm	90 mm	90 mm	90 mm	90 mm
Depth	360 mm	360 mm	360 mm	360 mm	360 mm
Weight	4.9 kg	4.9 kg	4.9 kg	4.9 kg	4.9 kg
