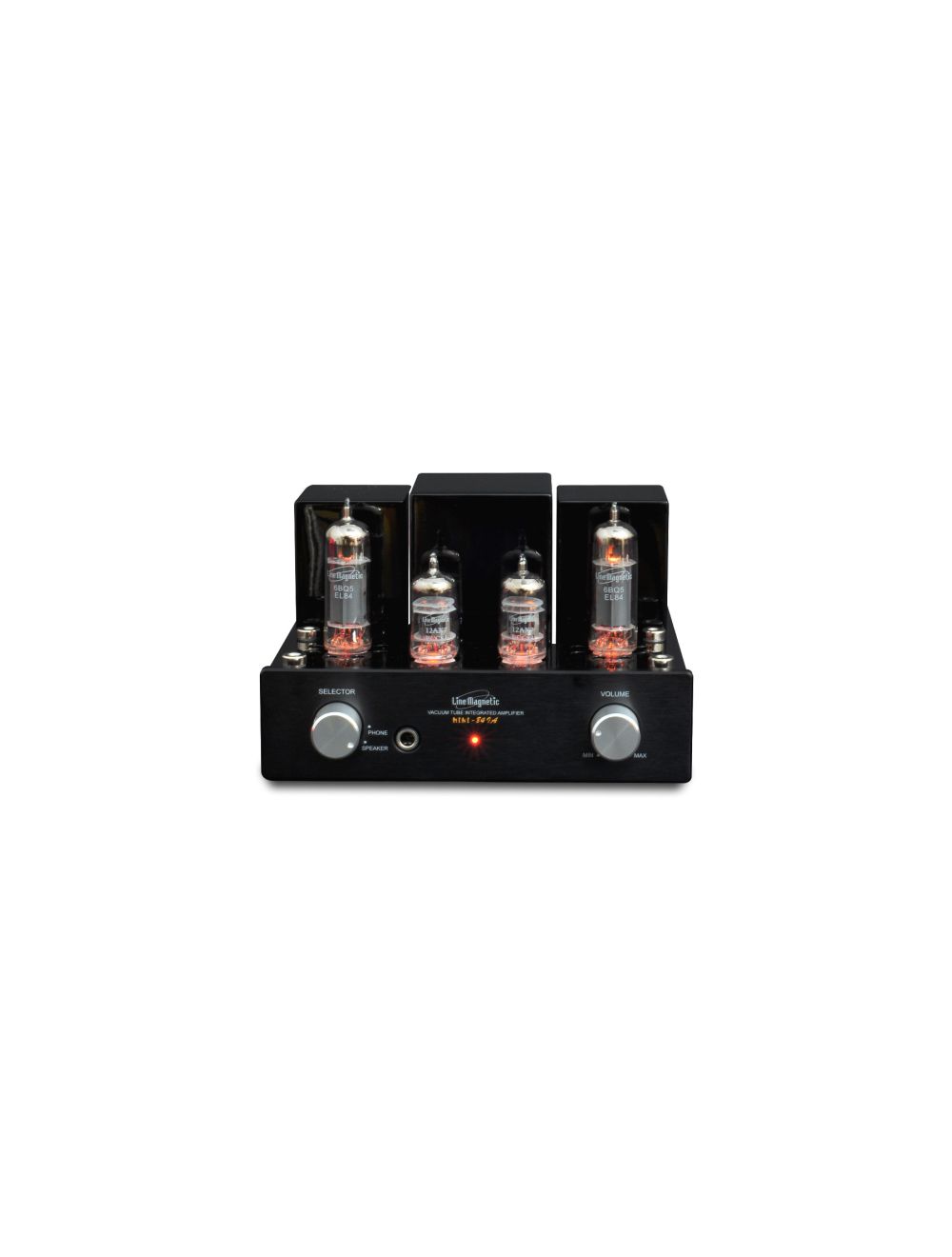

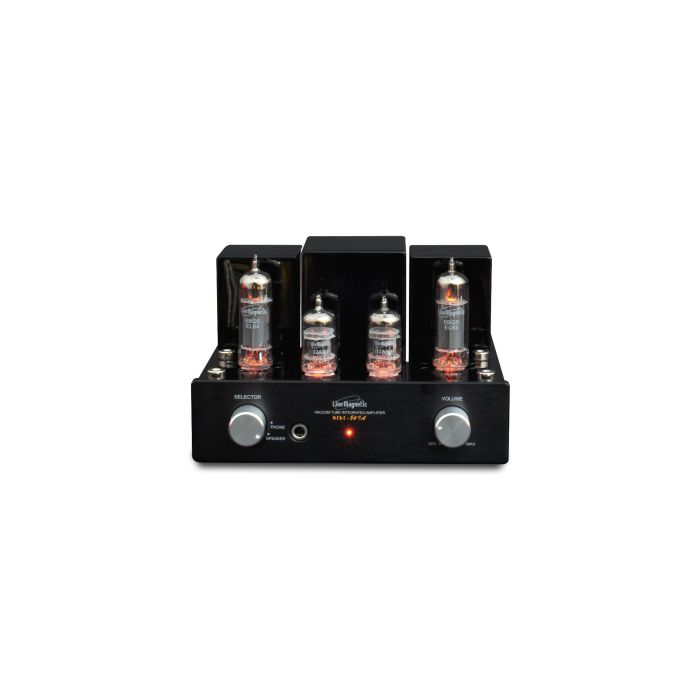

Line magnetic LM-mini84

The LM-mini84IA is a real integrated amplifier using a single ended output stagz using EL84 tubes in class A mode. The output power of 2x3W perfectly match with all audiophile headphones. This power capability allows the LM-mini84IA to drive qualitative hi-fi speakers. A A selector located on the front panel allow the user to choose between headphone or speaker output modes.

Highlights
- Compact
- Point-to-point wiring

TUBES
Input stage: 2x 12AX7
Power stage: 2x EL84

Bias control is accessible on top of the amplifier panel with true ampere meter.
Analog input: 1 Line input stereo
Load impedance: 4/8Ω
Metal and removable tube guard cage

Specifications
Class AB amplifier
Power: 2x3W RMS
THD: 1% (1kHz)
Signal/Noise ratio: 87dB (Weighted A)
Frequency responsive  (-1.5dB): 10 - 50.000 Hz
Sensitivity: 210 mV (Mode intégré)
Input Impedance: 100kΩ
Load impedance for HP to connect: 4/8Ω

Connectors
1x Line input RCA (pair)
1x Headpohone output Jack 3,5mm
2x Screw terminals compatible with banana plugs
