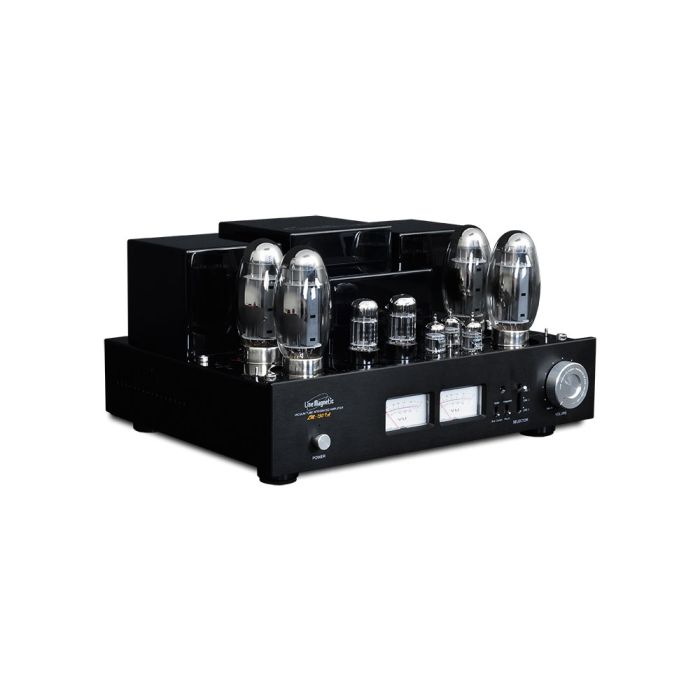

Line magnetic LM-805
Line Magnetic 805iA använder enkeländade triode 805-rör och fungerar i ren klass A. Den levererar 2x48W effekt. Den har 3 obalanserade linjeingångar, 1 bypass-ingång och 4, 8, 16Ω utgångsgrupper. Den bakre upplysta frontpanelsmätaren används för att justera polariseringen av rören.
The Line Magnetic 805iA uses single-ended triode 805 tubes and operate in pure Class A. It delivers 2x48W power. It has 3 unbalanced line inputs, 1 bypass input and 4, 8, 16Ω output groups. The rear-illuminated front panel meter is used to adjust the polarization of the tubes.
The use of high-quality components (Mundorf N-Cap capacitors, ALPS potentiometer) wired in the air for the most part is the guarantee of exemplary reliability. Its power and current capacity allows it to manage a very wide range of speakers. The use of the legendary triode 805 offers a listening to an unusual musicality.
HIGHLIGHTS
- Single ended design
- Class A amplifier
- Point-to-point wiring
- High quality components
TUBES
Input stage: 1x 6SL7 2x 6SN7
Drivers: 2x 300B
Power stage: 2x 805 « single-ended » et Pure Class A
Support des Tubes en stéatite
Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter.
Analog Inputs: 3 line inputs, 1 by-pass input Load impedance: 4/8/16Ω SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.
Metal and removable tube guard cage
Infrared Remote control
Tubes Basics Common Replacements
300B 600B, 300A, 4300B
6SL7 6N9P, 6H9C, CV1985, ECC35
6SN7 6H8C, 6N8P, 5692, CV181, ECC33
805 805, FU-5
Specifications
Class A amplifier - 2x48W RMS
THD: 1% (1kHz)
Signal/Noise ratio: 87dB (Weighted A)
Fréquence Responsive: (-1.5dB) : 10 - 50.000 Hz
Sensitivity: 300 mV (Built-in Mode)
Input Impedance: 100kΩ
Load impedance for HP to connect: 4/8/16Ω
Connectors
3x Line inputs RCA (pair)
1x Pré-in input
2x Screw terminals compatible with banana plugs
Included Accessories
2x Fuses
1x Remote control
1x Detachable power cord
1x Manual
Generality
Dimensions (WxHxD): 430 x 275 x 415 mm
Weight: 42 Kg
Finish: Black
