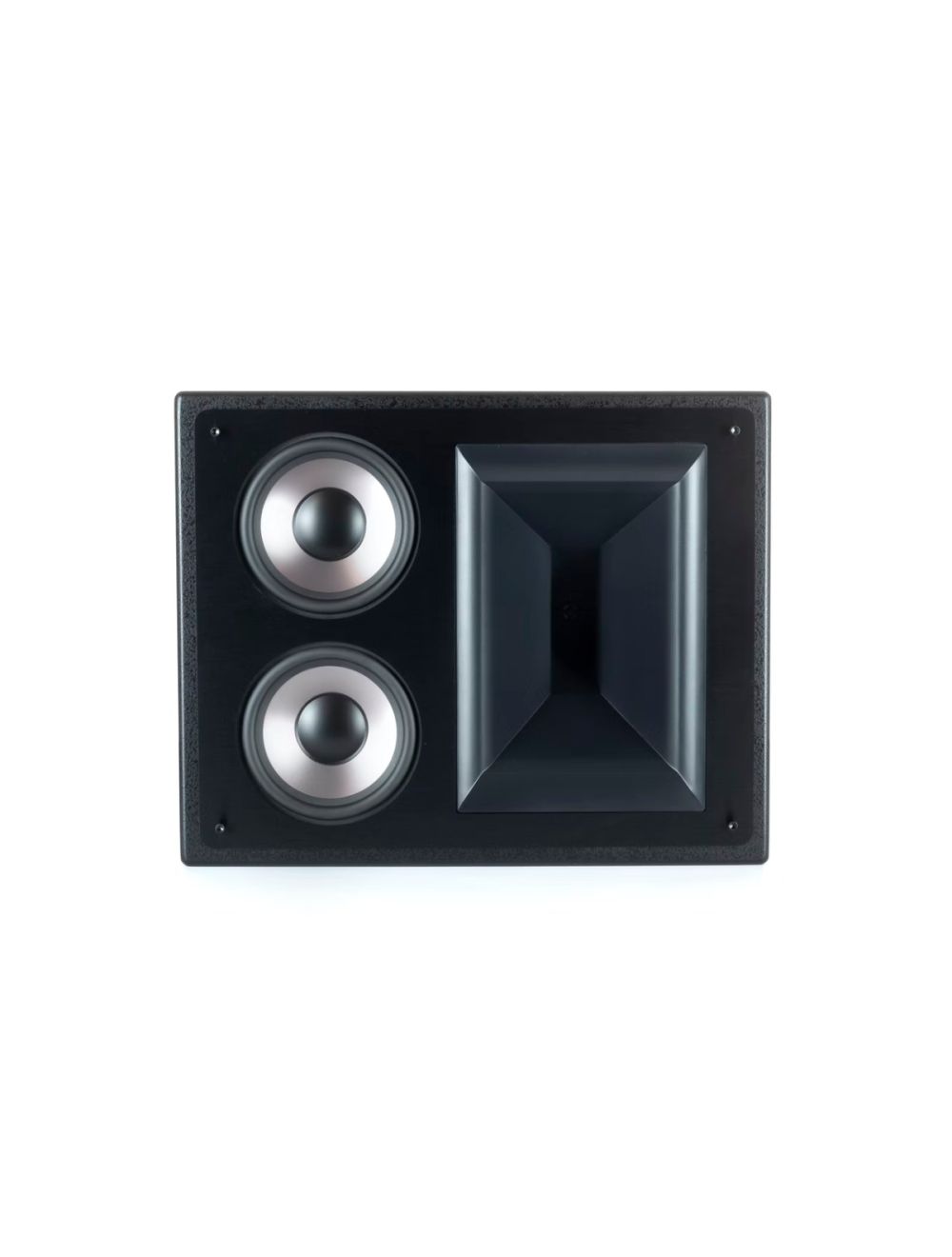

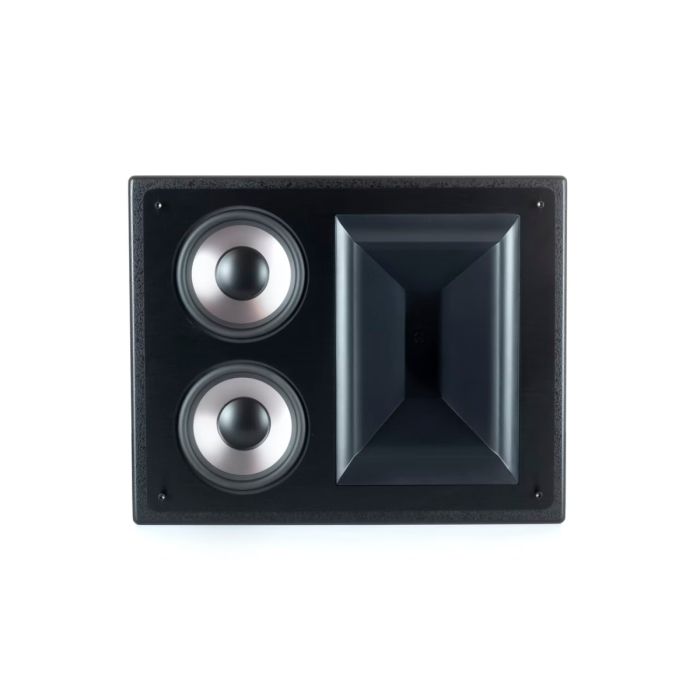

Klipsch THX-5000 LCR

Features:

• Sealed enclosure
• Top-of-the-line internal wiring
• Dual 5.25-inch Cerametallic™ woofers
• 1-inch titanium diaphragm compression driver coupled to a 6- by 10-inch Tractrix® Horn

• Specifications

  Frequency Response	80Hz-20kHz ±3dB
  Sensitivity	94dB @ 2.83 volts / 1 meter
  Nominal Impedance	8 ohms compatible
  High Frequency Crossover	1500Hz
  Power Handling	100 watts maximum continuous (400 watts peak)
  Enclosure Type	Sealed
  Enclosure Material	Medium density fiberboard construction (MDF)
  Tweeter	1" (2.5cm) magnetically shielded, titanium dome compression driver with 9.6oz ceramic magnet structure
  High Frequency Horn	10" x 6" rectangular 90° x 60° Tractrix® Horn
  Woofer	Two 5.25" (13.3cm) magnetically shielded, Cerametallic™ cone, cast aluminum frame drivers
  Inputs	Two sets of binding post speaker terminals (connected via brass strap jumpers)
  Dimensions	12.75" (32.4cm) H x 16" (40.6cm) W x 12.5" (31.8cm) D (w/grille)
  Weight	32 lbs. (14.5kg)
  Finish	Galaxy Black cabinet with Black anodized aluminum fascia
  Mounting	4-bolt pattern 1/4"-20 thread

  • THX-5000-LCR Spec Sheet


  The highly efficient THX-5000-LCR features a sealed enclosure, top-of-the-line internal wiring, dual 5.25-inch Cerametallic™ woofers, and a 1-inch titanium diaphragm compression driver coupled to a 6- by 10-inch Tractrix® Horn.

  The THX-5000-LCR enclosure has the same dado and rabbet construction used in Klipsch professional speakers ensuring cabinet integrity in suspended applications. The Omni-Mount suspension points on this loudspeaker facilitate wall or ceiling mounting using standard hardware.

  Available in a custom Galaxy black finish with an aluminum fascia, the KL-525-THX delivers dynamic audio experiences that draw listeners into the middle of live concerts and action-packed movies.
