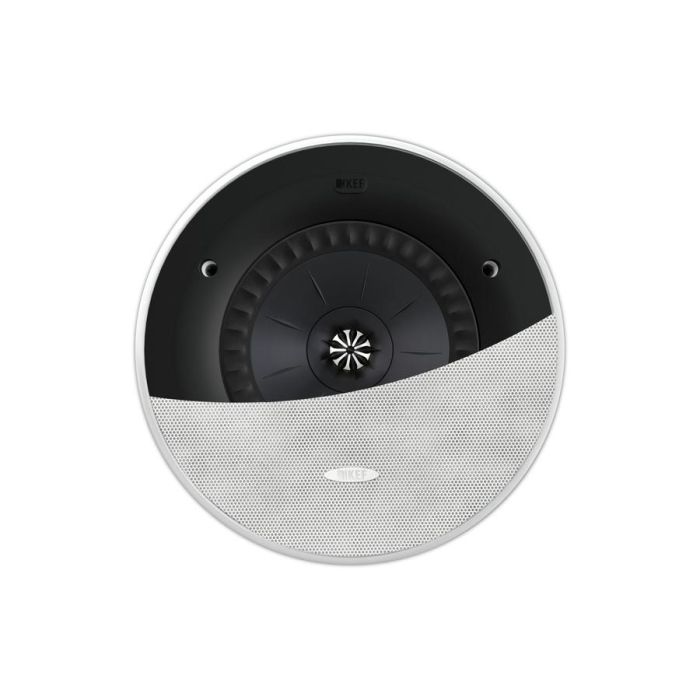

KEF Ci160RR-THX

THX® Certified Ultra Architectural Speaker

Ci160RR-THX# is an ultra-high-performance loudspeaker featuring KEF's signature Uni-Q technology, designed for discreet in-ceiling or in-wall installation. As part of the Ci-R Series and a THX® Certified Ultra architectural loudspeaker, Ci160RR-THX is engineered to maintain exceptional sound quality at high outputs.

Ci160RR-THX

Ci160RR-THX’s Uni-Q® array boasts a 25mm high frequency tweeter mounted in the acoustic centre of a 165mm woofer, delivering the same, natural performance across the entire listening area. Plus, a Universal Cut-out system means its opening is the same as any 160mm KEF speaker for ease of installation and component selection.

#To meet THX Ultra distortion specifications, install with 3 litre rear enclosure and set the A/V processor speaker size to small

Nominal Impedance

4 Ohms

Sensitivity

90dB (2.83V/ 1m)

Frequency Response (±6DB)
Open-Backed

52Hz - 24kHz

Frequency Range (-10DB)

38Hz-30kHz

Nominal Coverage (Degrees)

130

Optional Rough In Frame

RIF160R

Optional Rear Enclosure

Ideal Rear Volume (L)

Minumum Rear Volume(L)

Recommended Amplifier Power

10-190W

Recommended High-Pass Filter (HZ)

38Hz

Product External Dimension (H X W X D)

Diameter Ø: 234.6mm (9.24in.)
Depth :115mm (4.53in)

Cut-Out Dimensions(H X W)

Diameter Ø: 196mm (7.71in.)

Mounting Thickness

Ceiling Thickness (Maximum): 37mm (1.460in.)
Ceiling Thickness (Minimum): 4mm (0.160in.)

Mounting Depth From Surface

110mm (4.33in.)

MAX SPL (DB)

105

Crossover Frequency

2.1kHz

Driver Unit

LF: 165mm (6.5in.) Uni-Q
HF: 25mm (1in.)

Net Weight

2.94kg (6.48Ibs.)

Certification

THX ULTRA

Safety And Regulatory Compliance

IP64
