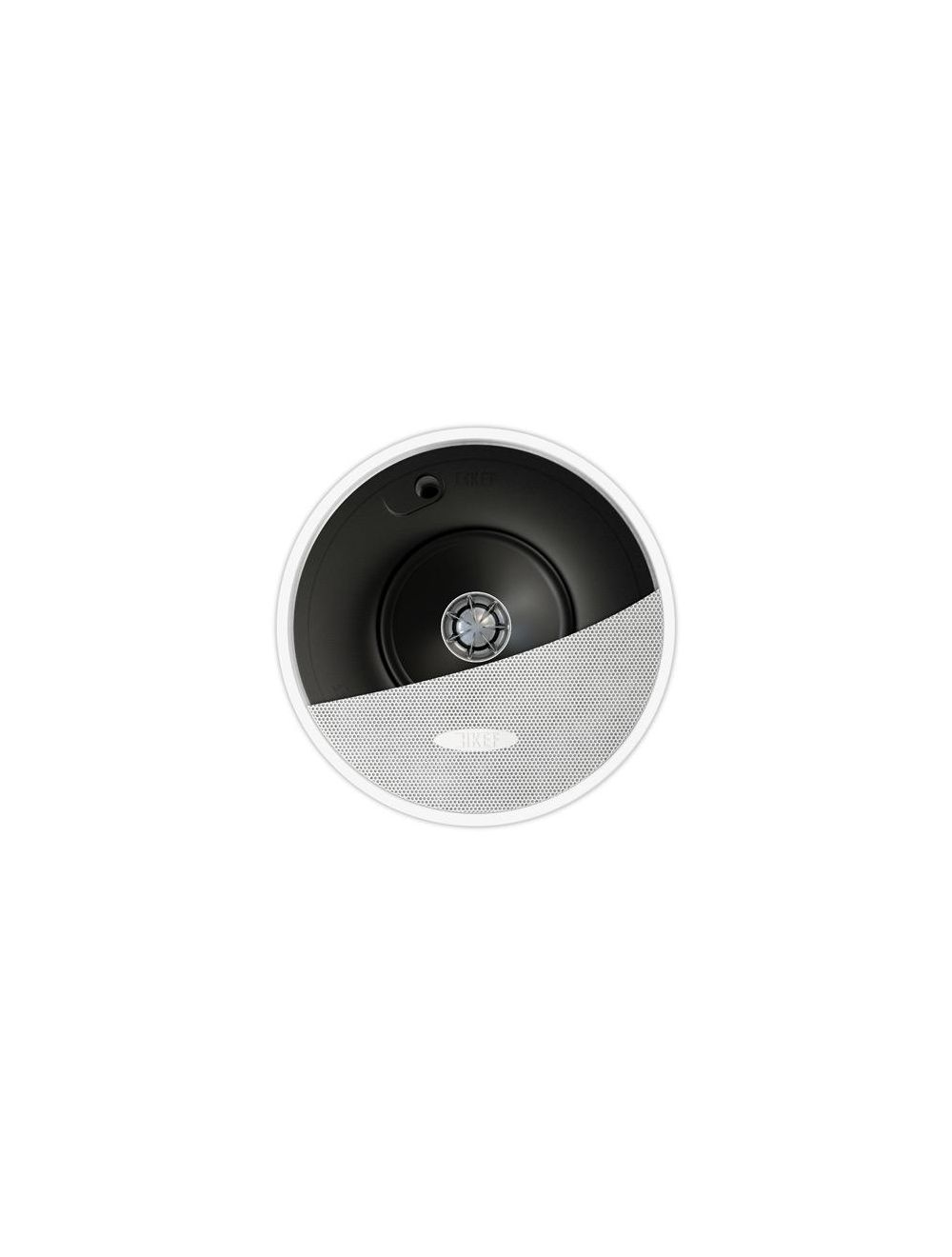

KEF Ci100.2QR

Ci100.2QR

The popular Soundlight Series is yet another major innovation from KEF. When installed, Soundlight speakers are so tiny that they blend in with halogen light fixtures yet will amaze you with their astonishing performance, thanks to KEF's patented Uni-Q's exceptionally wide dispersion.

GRILLE OFF

The Details

FEATURES

UTB™ Ultra-Thin Bezel
75mm (3in.) Uni-Q driver
16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
Removable rear can
Magnetic grille
Paintable grille and bezel
Weather Resistant Construction
IP64 certified

SPECIFICATIONS

Nominal Impedance

4 Ohms

Sensitivity

83dB (2.83V/lm)

Frequency Response

90Hz-27kHz (+/-6dB)
130Hz-27kHz (+/-6dB) with back can

Crossover Response

3.5kHz

Drive Units

LH: 75mm (3in.) Uni-Q
HF: 16mm (0.6in.)

Recommended Amplifier Power

10 - 50W

Product External Dimensions

Diameter: 136mm (5.4in.)
Depth: 57mm (2.2in.)
Depth: 110mm (4.3in.) with back can

Cut-Out Dimensions

Diameter: 118mm (4.6in.)

Mounting Thickness

Ceiling Thickness (Maximum): 22mm (0.87 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)

Mounting Depth From Surface

52mm (2in.)
103mm (4.1in.) with back can

Net Weight

0.50kg (1.10lbs)
0.65kg (1.44lbs) with back can

Unit Measurement

Piece

Downloads

Manual Individual Information Spec. Sheet Ci Brochure Ci Series Spec. Sheet Ci Series Minimum Cabinet Volume Chart Cutout Template EASE GLL DATA Product Drawing Ci Series Pamphlet Ci Accessory Guide
