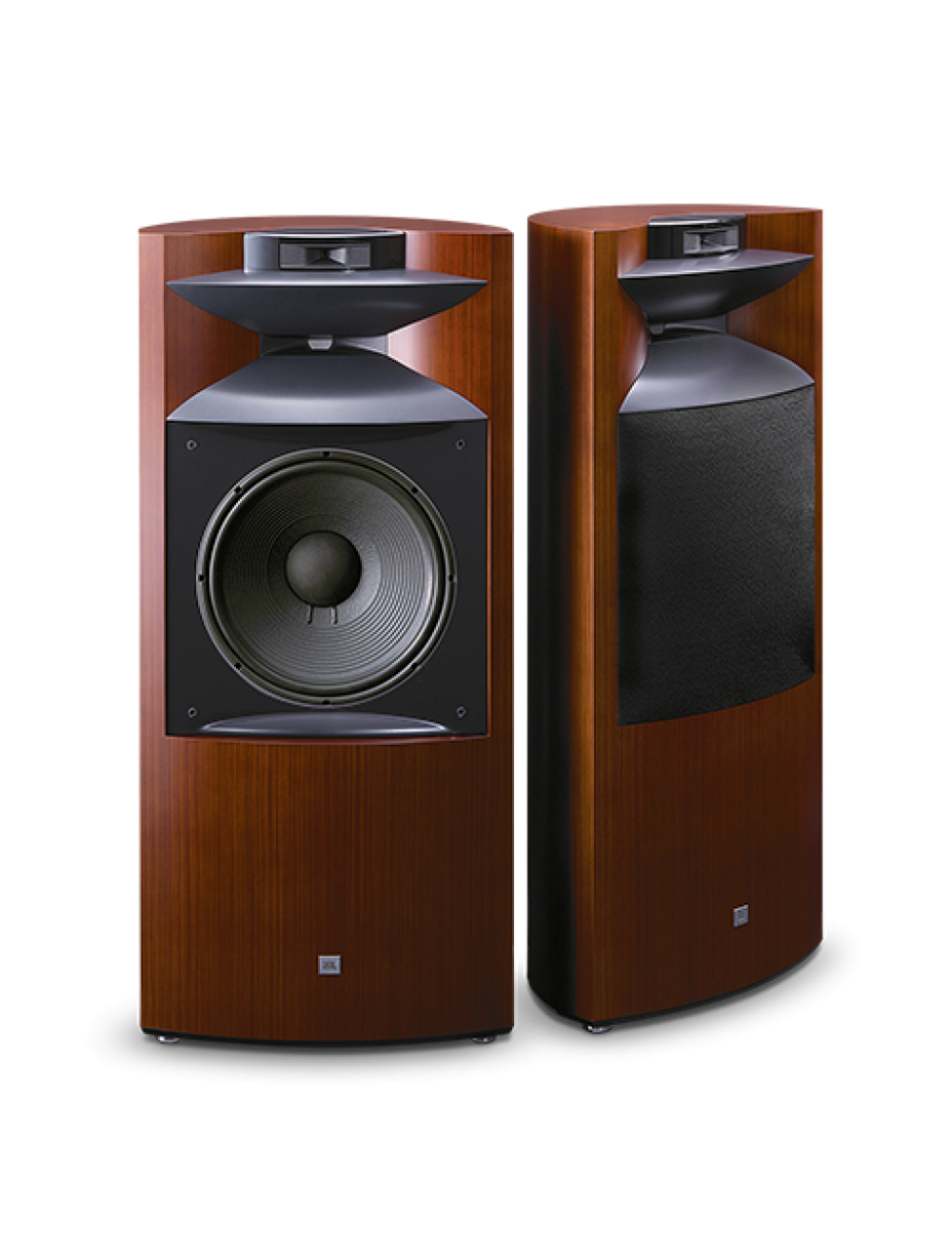

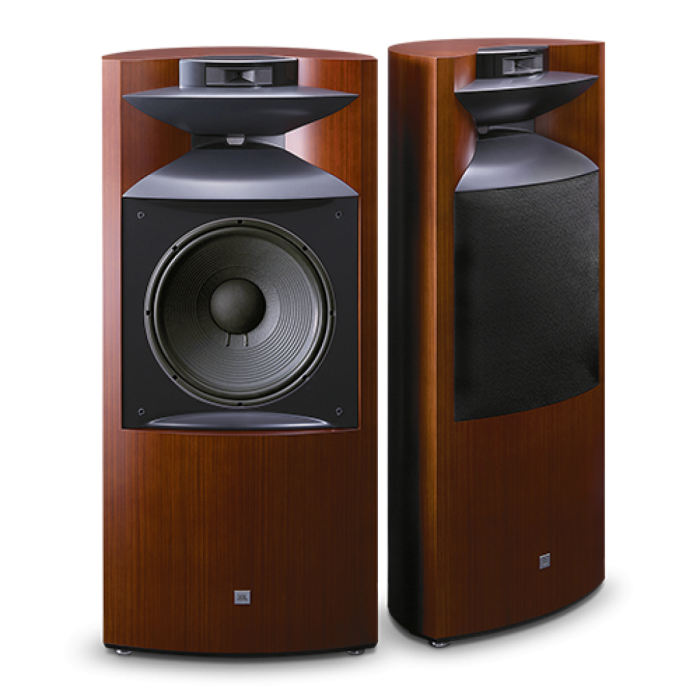

K2 S9900 Highlights
-
15-inch woofer with Alnico magnet and 100 mm voice coil, cast frame and 16 kg motor structure
-
High frequency compression driver and horn with 4-inch magnesium diaphragm
-
Precision-molded Sonoglass® HF horn throat section integrated with curved baffle
-
Ultra-High Frequency compression driver with1-inch beryllium diaphragm
-
Sonoglass® UHF horn mated to a die-cast aluminum housing
-
Separate crossover boards for each frequency section
-
Heavily-braced curved front and rear enclosure eliminates cabinet-induced coloration
-
Available in Wood Grain, Black Zebra Wood, and six high-gloss automotive-grade paint finishes: Black Gloss, Polar White, JBL Orange, Rosso Corsa, Tungsten Silver Metallic, British Racing Green Metallic, and Sapphire Blue Metallic
General Specifications
| Type | Floor-Standing Speakers |
|---|---|
| Finish | Cherry |
| Width (in) | 22 |
Audio Specifications
| Maximum Recommended Amplifier Power | 500 |
|---|---|
| Frequency Response | (-6dB) 48Hz-50kHz |
| Nominal Impedance | 8 Ohms 7 ohms minimum at 100Hz, 4ohms minimum at 40kHz |
| Sensitivity (2.83V@1m) | (2.83V@1m) 93dB |
| Crossover Frequencies | 900Hz (24dB/octave) 15kHz (24dB/octave, high-pass only) |
Speaker Specifications
| Low-Frequency Transducer | 15" (380mm) Pulp-cone woofer (1500AL-1) |
|---|---|
| High-Frequncy Transducer | 4" (100mm) Magnesium compression driver (476Mg) |
Dimensions
| Height (mm) | 1200 |
|---|---|
| Height (in) | 47-5/16 |
| Weight (kg) | 82.7 |
| Weight (lb) | 182 |
| Width (mm) | 560 |
| Depth (mm) | 350 |
| Depth (in) | 13-13/16 |
