JBL 4312 Ghost

4312G Studio Monitor Ghost Edition
3-way 12-inch Studio Monitor Loudspeaker
4312G Ghost Spec Sheet | Rev 1 220208 | © 2022 Harman International | Specifications Subject to Change Without Notice
Product Overview Highlights
Legendary JBL Sound in a Limited-Edition
Appearance Package

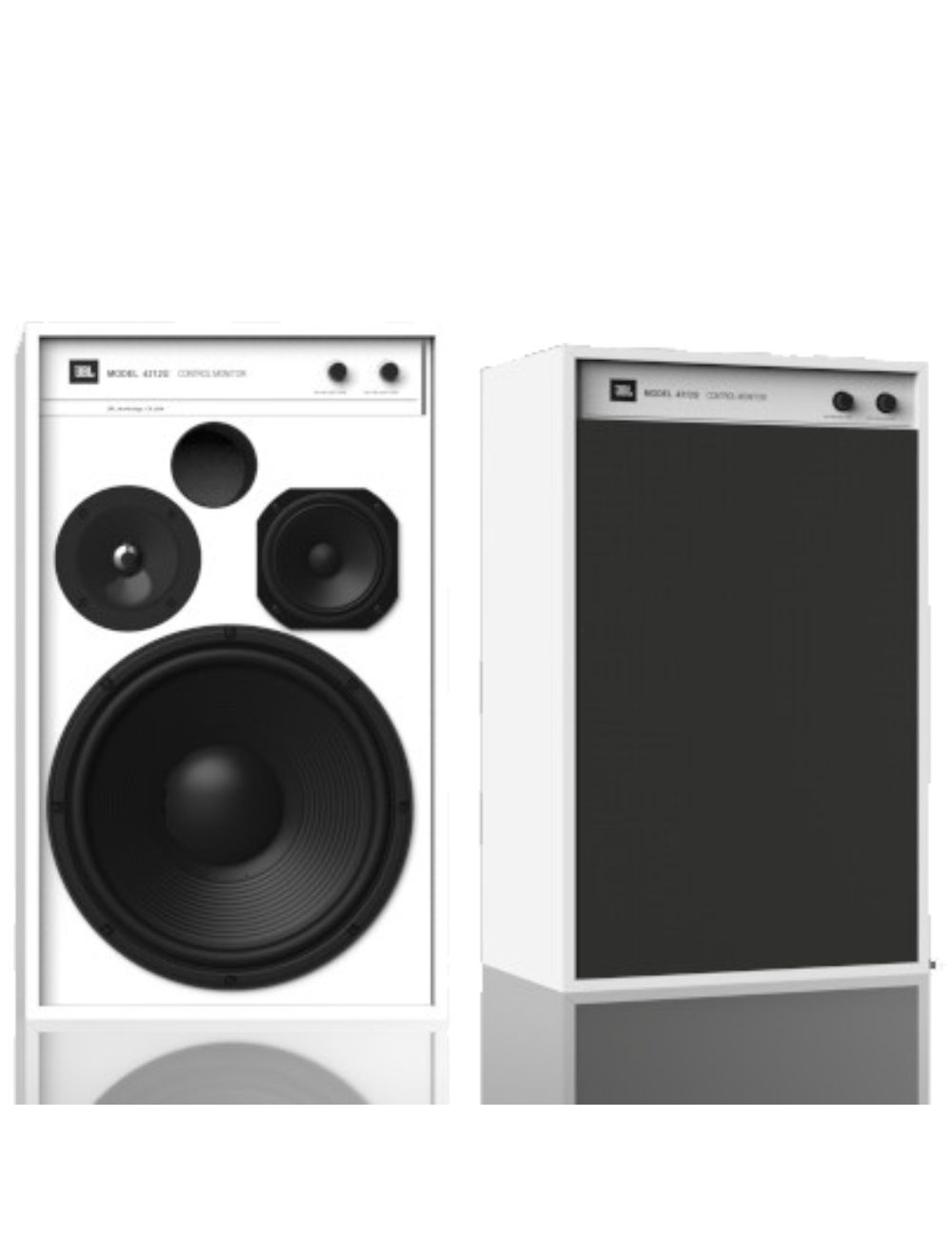

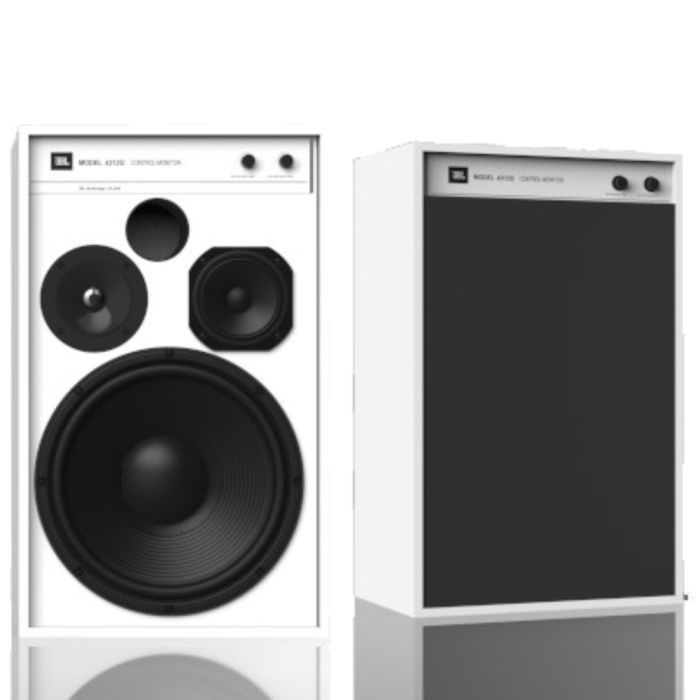

The 4312G honors JBL’s storied legacy with the
iconic 12-inch (300mm) 3-way configuration that
dates back all the way to 1968. Crafted in the mold of
the legendary 4310/4311 family, the 4312G delivers
powerful bass, accurate midrange, and crystal-clear
highs, at any listening level. The limited Ghost Edition
of the 4312G Studio Monitor delivers the same
impressive acoustic performance wrapped in a
special all-white finish featuring a white wood-grain
cabinet, white textured baffle, and a white control
panel. In contrast to the white finish, the Ghost
Edition features all black drivers and a black fabric
grille. This striking design is only available for a
limited time and is certain to become a collectible.
• Limited-edition White Appearance Package
• 12-inch Pure Pulp black cone woofer
• 5-inch polymer-coated Pure Pulp black cone
midrange
• 1-inch Magnesium/Aluminum tweeter with
Acoustic Lens waveguide
• Mid-frequency and high-frequency attenuator
controls
• Bass-reflex design with front-firing tuned port

Specifications Dimensions
Low
Frequency
Transducer
12-inch (300mm) pure pulp cone woofer
Mid Frequency
Transducer 5-inch (125mm) polymer-coated pure pulp cone
High
Frequency
Transducer
1-inch (25mm) Magnesium/Aluminum alloy dome
tweeter with waveguide
Recommended
Amplifier
Power
10~200 Watts RMS
Frequency
Response (-
6dB)
44Hz~40kHz
Sensitivity
(2.83V@1m) 90dB
Nominal
Impedance 6 Ohm
Crossover
Frequencies 640Hz, 5kHz
Enclosure
Type Bass-reflex via front-firing port
Inputs Five-way Binding Posts
Finishes White Woodgrain with Black Cloth Grille
Dimensions (H
x W x D) 23.5 x 14.25 x 12 inches (597 x 362 x 305mm)
Weight 52.4 lbs (23.8kg) each
