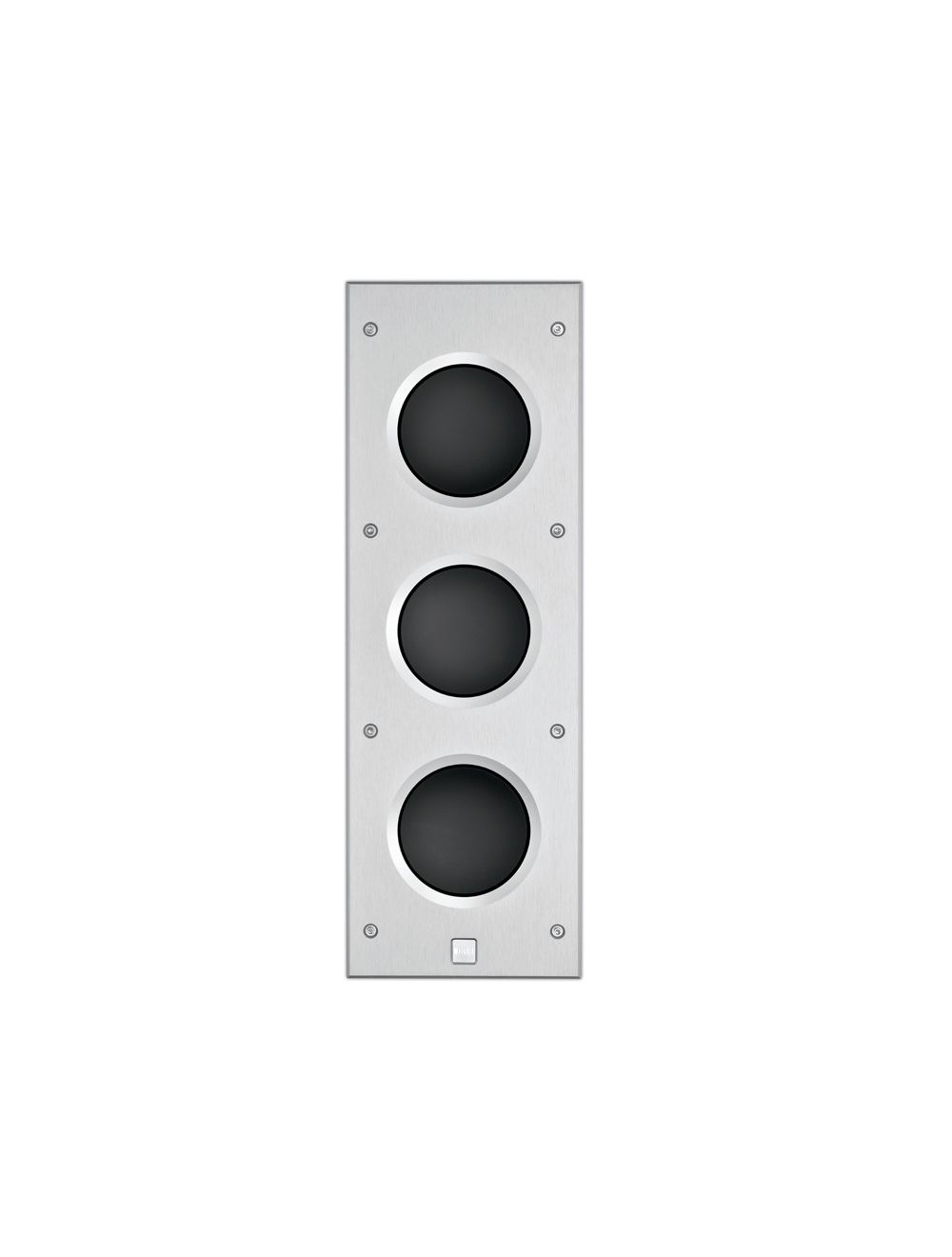

KEF Ci3160RLb-THX
THX-certifierad passiv infällnads-subwoofer med 3x6,25"-baselement! Utformad för att drivas tillsammans med KEF:s KASA500-subwooferslutsteg.
NOMINAL IMPEDANCE4 Ω
SENSITIVITY92dB (2.83V/ 1m)
FREQUENCY RESPONSE20Hz - 140Hz (±6dB) open backed
DRIVE UNITSLF: 3 x 160mm (6.5 in.)
AMPLIFIER REQUIREMENTSKASA500
PRODUCT EXTERNAL DIMENSIONSH x W x D : 680 x 230 x 96 mm (26.77 x 9.06 x 3.78 in.)
H x W x D with Grille : 683 x 242 x 102.7 mm (26.89 x 9.53 x 4.04 in.)
CUT-OUT DIMENSIONSH x W : 660 x 209mm (25.98 x 8.23 in.)
MOUNTING DEPTH FROM SURFACE88.5mm (3.84 in.)
NET WEIGHT10.9 kg (24.1 lbs)
UNIT MEASUREMENTPiece
DOCUMENT DOWNLOAD
Ci3160RLb-THX Information Sheet
Ci Series Pamphlet
Ci Series Specification Sheet
User Manual
Ci Series Minimum Cabinet Volume Chart
Product drawingREMARKS
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, Ultra2 and Select2 are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved.
