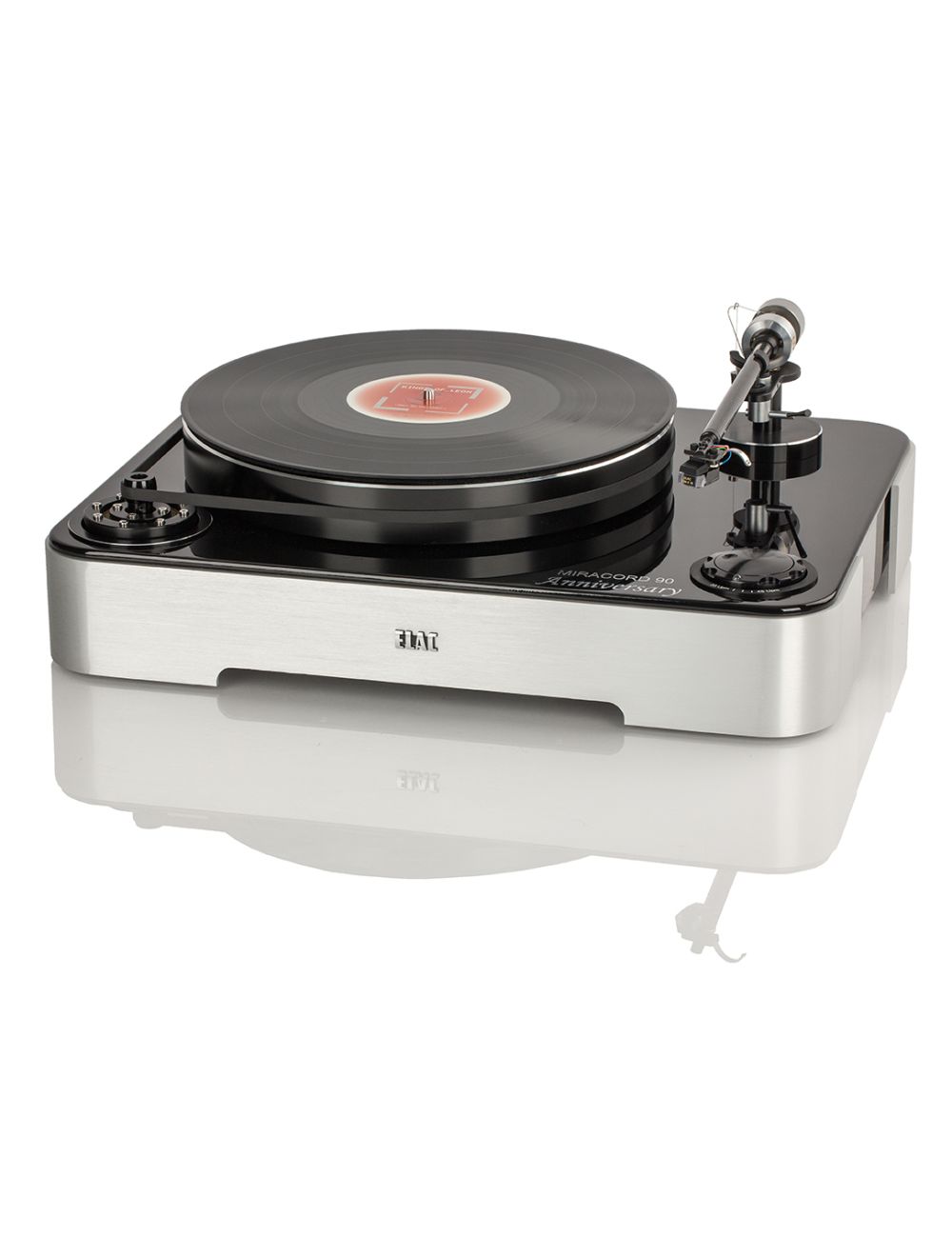

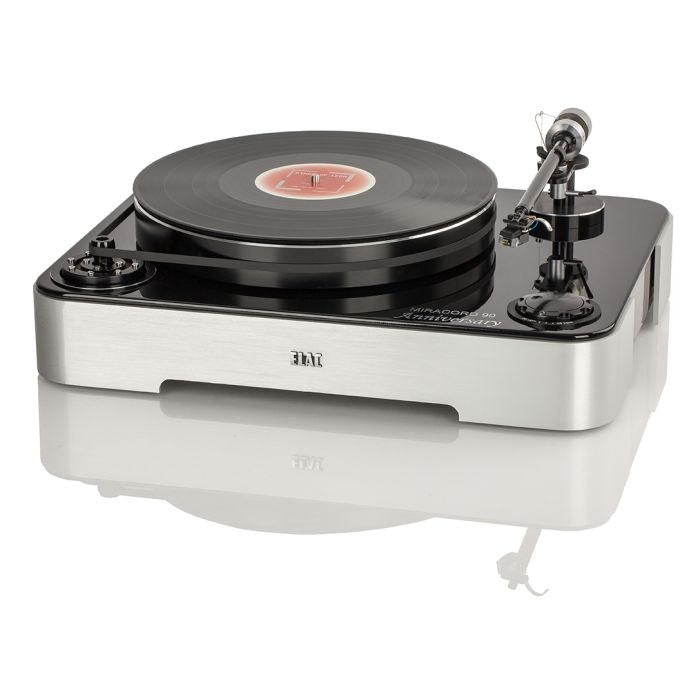

Elac Miracord 90
SPECIFICATIONS
Cartridge: Moving Magnet system by Audio Technica
Frequency range: 20 Hz – 25 kHz
Tracking force: 14 ± 4 mN ≙ 1.4 ± 0.4 g
DC resistance: 800 Ω ± 20%
Coil impendence: 3.2 kΩ ± 20% at 1 kHz
Recommended load: 47 kΩ
Output voltage: 2.2 – 4.9 mV
Channel separation: > 25 dB
Selectable speeds: 33 and 45 rpm
Pitch: ± 5%
Outputs: 2 gold-plated Neutrik RCA connectors, gold-plated ground connector
Power supply: 18 V, 18 W Lumberg connector
Finishes: Black high gloss, white high gloss, oiled walnut
Height: 6.7 in / 170 mm
Width: 18.5 in / 470 mm
Depth: 14.2 in / 360 mm
Weight: 37.7 lb / 17.1 kg
| SKU | Elac Miracord 90 |
|---|---|
| Märke | Elac |
