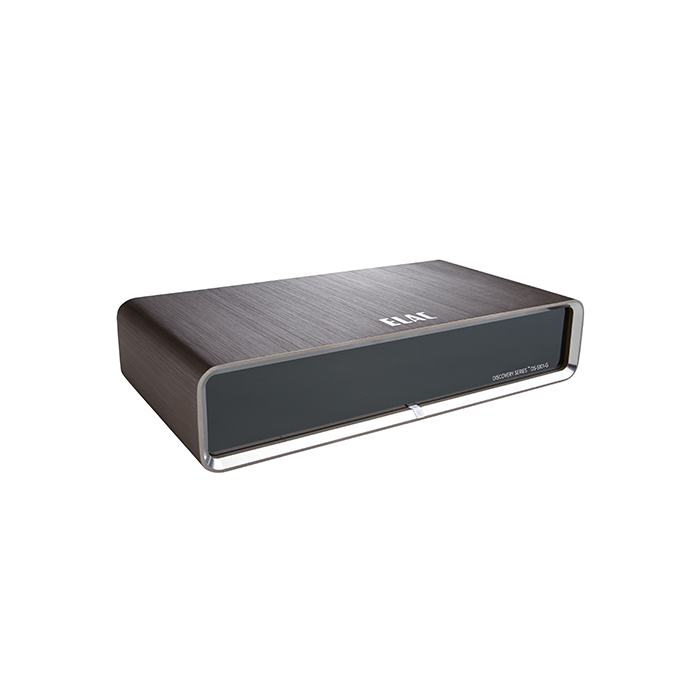

Elac Discovery MS

Product Specifications

CONNECTIONS
Analog outputs (independent zones): 2
Coaxial output (independent zone): 1 (192kHz 24-Bit Max)
Optical output: 1 (96kHz 24-Bit Max)
USB port (mass storage class): 1 USB 2.0
Ethernet port: 1 Gigabit Ethernet

END POINT SUPPORT
Discovery
AirPlay
Roon End Point

CONTROL & USER INTERFACE
ROON Essentials Control app: For iOS (64-bit Devices), Android (4.4 and higher), Windows (7, 8, and 10) and Apple OSX (10.8 and higher)

FORMAT SUPPORT
Supported Audio Formats: WAV, AIFF, FLAC, ALAC, OGG, MP3, AAC
192kHz 24-Bit Audio Formats: WAV, AIFF, FLAC, ALAC

EXTERNAL USB HDD FILE SYSTEM SUPPORT: EXT2, EXT3, EXT4, HFS+, NTFS, VFAT, AND VFAT

INTEGRATED STREAMING SERVICES: Tidal, Qobuz

Track Limit: No Track Limit (Please note that the Discovery UI may become slower as you add a large number of tracks to your library)

PLAYBACK MODES
Gapless, Crossfade, Shuffle, and Repeat

MULTI-ROOM SUPPORT
Type: Wired and Wireless
Synchronized Audio: Yes (Analog 1 & 2 can be grouped together and synchronized) (Wireless End-Points can be grouped together and synchronized as well). Please note that since the digital outputs always output the native sampling rate and bit depth it cannot be synchronized with the analog outputs.

POWER SUPPLY & CONSUMPTION
Power Supply: 12VDC 2A
Power Consumption Normal Operation: 4.8 Watts

DIMENSIONS & WEIGHT
Dimensions (WxHxD): 8-1/4″ x 1-7/8″ x 4-5/16
Weight: 2lbs

NOTE: The Discovery can be controlled using the free Roon Essentials app for Windows, OS X, iOS, and Android.

Preliminary information. All specifications subject to change.

Disclaimers and Legal Information

Roon
Copyright 2015 Roon Labs LLC

Tidal
Copyright 2013 Aspiro Music AS. All Rights Reserved

ELAC
Copyright 2016 ELAC GMBH

Third Party content services may be changed, suspended, interrupted, or discontinued at any time without notice, and ELAC disclaims any liability in connection with such occurrences.

iOS™ and iPhone™ are registered trademarks of Cisco Systems, Inc., USA, licensed to Apple Inc., USA.

Android™ is a registered trademark of Google Inc., USA.

It’s really very simple

The Discovery Music Server lets users open their personal music vault from another computer, Apple iPad** or Android tablet. Whether your choice is a full ELAC system, powered by an ELAC integrated amplifier and running an ELAC loudspeaker system, or a pair of ear buds, you can listen in one room or around the house with other Discovery-compatible products.

A wave of music

Discovery delivers music based on relationships between performers and composers, starting from the tracks you choose. TIDAL* delivers no-compromise music streaming, with millions of tracks in lossless, audiophile quality—a bigger music landscape than ever before.

* Separate Tidal Subscription required

Your music, as you like it

Between users and across devices, you can select from downloads, ripped CDs and streaming services. Your collection is supported by a rich library of images and information—an archive of material that adds depth, knowledge and excitement to your listening.
