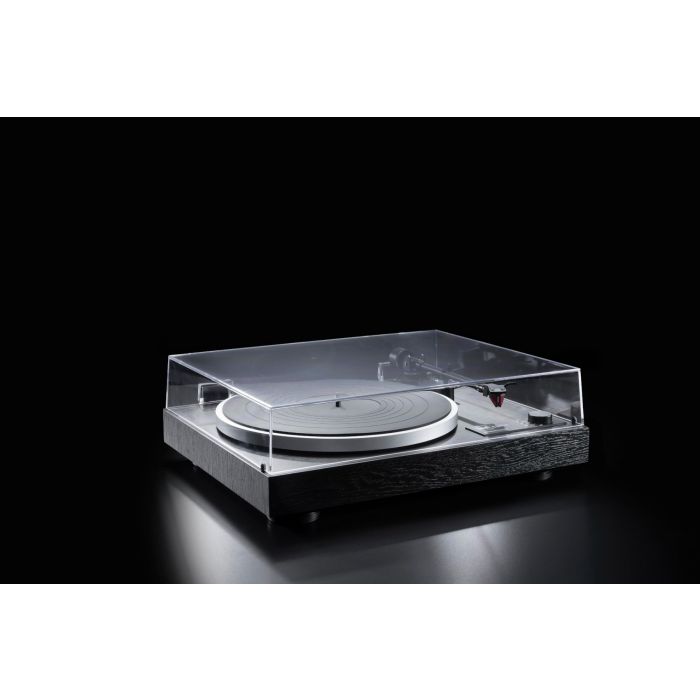

Dual CS-418

THE MANUAL
RECORD PLAYER ENTRY

Emphasis on high component precision is a feature of the entire range of Dual products. This is the case for the entry model CS 418, which uses the same platform as the higher models in the product range.

The Ortofon 2M Red pickup and a switchable MM-phonopreamplifier are an integral part of this ready to run package.

The CS 418 is not attractive just because it is excellent value for money, but it also offers a superb and compelling balanced sound experience and a 5 year warranty for long term ownership.

TECHNICAL DATA:

Motor:

Drive:

Belt

Speed settings:

33/45/78

Wow & Flutter:

< ±0,1 % (DIN WTD)

Tonearm:

Auto-Start/-Stop-Function:

Bearing:

Ball-bearing

Effective length:

221,5 mm

Offset Angle:

25,6°

Overhang:

19 mm

Type:

statically balanced

Stylus Pressure Range:

0 g bis 4 g

Cartridge Weight Range

5 g bis 9 g

Factory installed pick up:

Ortofon 2M Red

Platter:

Material:

Aluminium die-cast

Mat:

Rubber 2,5 mm

Bearing:

Hardened steel spindle Brass bushing

Diameter:

305 mm

Weight (incl. Mat):

850 g

Plinth:

Material:

MDF, folded

Surface finish:

Vinyl veneer / Black

Feet:

Ø 62 mm / Elastomer

Connection:

RCA socket

Connection to Phono Input:

✓

Connection to Line Input:

✓

Digital Output:

Dimension, closed dustcover:

435 x 367 x 145 mm

Dimension, open dustcover:

D: 415 mm / H: 400 mm

Weight:

5,8 kg

Power plug AC / DC:

External power supply
