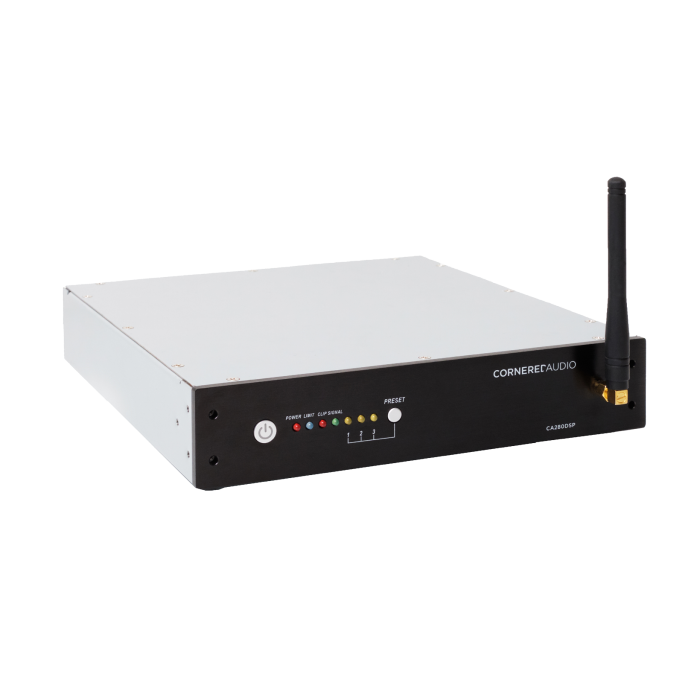

Cornered Audio CA280DSP amplifier
2 kanals slutsteg på 2x140w (4ohm). DSP, monobryggning, 70/100V läge.
The CA280DSP is a highly advanced, feature-packed installation amplifier. It can be accessed and operated through its own access point, via LAN, or through USB connection.
CA280DSP features an advanced DSP platform with all relevant filters required for professional installation, as well as an excellent automated room EQ system.
Capable of driving both low and high impedance systems, it is a true powerhouse of features and performance in a compact housing.
Simply connect to the amplifier’s Wi-Fi network, load settings for your Cornered loudspeakers, and let the amplifier sweep the room and apply automatic room EQ adjustments.
Choose the customizable Loudness feature if needed, and even enable sound masking functionality when relevant.
The CA280DSP takes care of the rest. With auto on/off functionality and a fan-free design, chances are you will never notice it operating again.
NOT FOR SALE IN THE US
I lager
- SKU
- cornered_CA280DSP
Features
- 2×2 matrix
- Top-grade 48 kHz / 24-bit DSP
- Automated room EQ
- Dynamic loudness
- Limiter
- RMS compressor
- Delay in time or distance
- White/pink noise generator
- Sound masking
- Auto on/off
- Energy Star compliant
- Fan-free design
Network Connection & Control
- USB, RJ45, or Wi-Fi connection for setup, monitoring, and control via included PC software
- Simultaneous control of up to 32 units through PC software
- Pre-sets for all Cornered loudspeakers
- GPIO connection for remote volume control
Specifications
- Number of channels: 2
- Max output power (4 & 8 ohm): 2 × 140W
- Max output power (bridged): 1 × 280W
- Max output power (100V): 1 × 280W
- Output circuitry: Class D
- THD+N: < 0.003%
- Signal-to-noise ratio: > 105 dB
- Frequency response: 20–20kHz ±0.1dB
- Power supply: Universal
- Operating range: 110–240V mains
- Standby power consumption: 0.25 watt
- Maximum input/output level: +12 dB
- Connections: Phoenix with input link
- Dimensions: 1U half rack space
- Measurements (H × W × D): 44 × 220 × 234 mm
- Weight: 2.54 kg
| SKU | cornered_CA280DSP |
|---|---|
| Märke | Cornered Audio |
