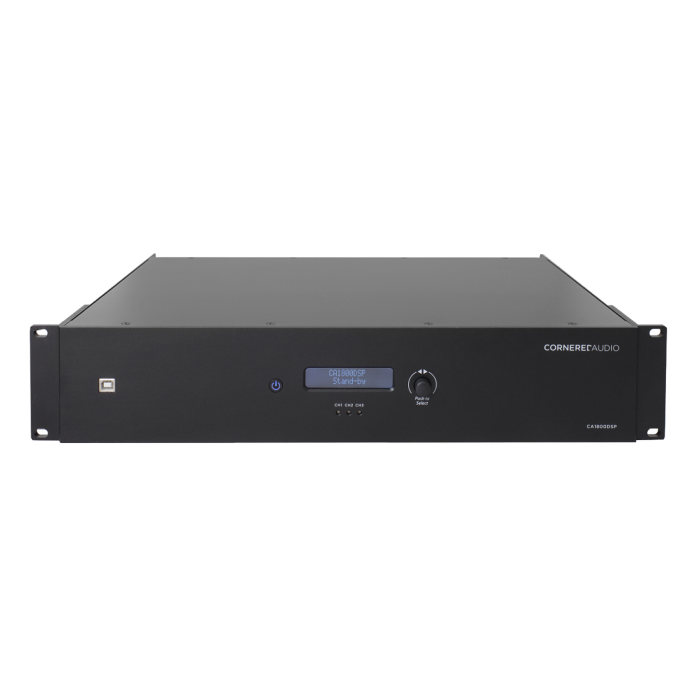

Cornered Audio CA1800DSP amplifier
3 kanals slutsteg på 3x600w (4ohm). DSP, 70/100V läge.
High Output DSP Amplifier
CA1800DSP is an excellent sounding high-power amplifier designed for large home theatre applications.
It features 3 channels with integrated DSP and delivers up to 3 × 1000W at 4 ohm or 3 × 600W at 8 ohm, with all channels driven simultaneously.
The amplifier also supports third-party control integration, making it suitable for advanced custom installation projects.
CA1800DSP provides a full suite of DSP features, including pre-sets for all Cornered speakers. Setup is easily performed through USB or Ethernet connection.
It includes a highly efficient switch-mode power supply and three Class D output stages with ultra-low distortion, high efficiency, and a complete range of circuit protections.
An advanced heat dissipation system and overheat protection ensure uncompromising long-term reliability.
NOT FOR SALE IN THE US
I lager
- SKU
- cornered_CA1800DSP
Features
- 4 input and 3 output channels with full matrix
- Top-grade 24-bit DSP
- 17 EQ points with variable Q per channel
- Adjustable high-pass and low-pass filters
- Limiter with variable attack, release, and threshold
- RMS compressor and delay in time or distance
- White/pink noise generator
- Remote trigger with link
- Analogue and digital input/output
- Optional sleep mode with auto on/off
- Power factor correction
Network Connection & Control
- USB or Ethernet LAN RJ45 for system setup
- Monitoring and control through remote PC software
- Simultaneous control of up to 32 units via PC software
- Pre-sets for all Cornered loudspeakers
Specifications
- Number of channels: 3
- Max output power (8 ohm): 3 × 600W
- Max output power (4 ohm): 3 × 1000W
- Max output power (1 channel, 8 ohm): 1 × 1000W
- Max output power (70/100V): 3 × 600W
- Output circuitry: Class D
- THD+N: < 0.02%
- Signal-to-noise ratio: > 118 dB
- Frequency response: 20–25kHz
- Power supply: 100–120V or 220–240V
- Operating range: 110–240V mains
- Maximum input/output level: +12 dB
- Connections: RCA with input link
- Speaker output: Screw terminals
- Dimensions: 2U rack space
- Measurements (H × W × D): 88 × 482 × 354 mm
- Weight: 8.5 kg
| SKU | cornered_CA1800DSP |
|---|---|
| Märke | Cornered Audio |
